AOC C32G1 User Manual

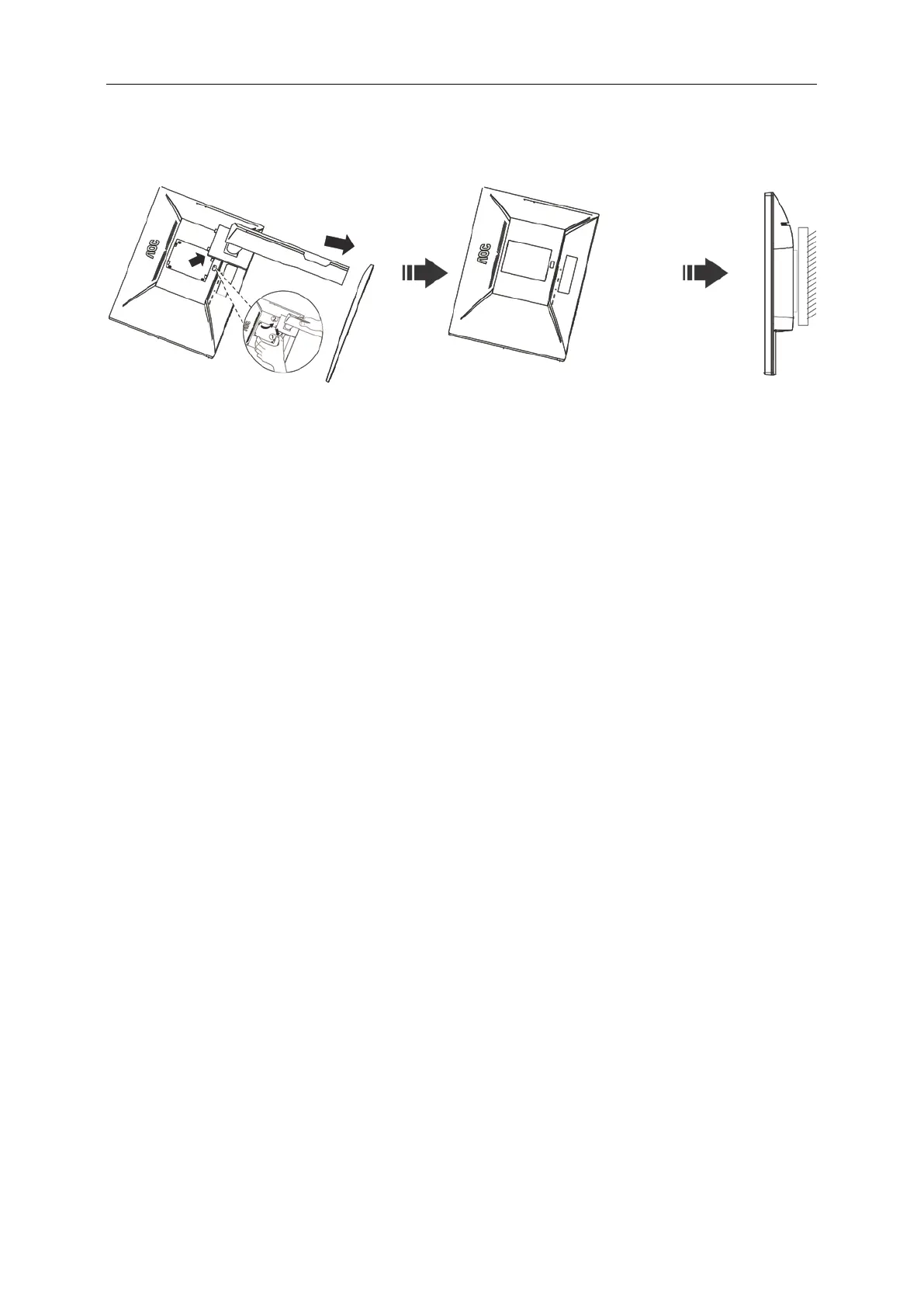

Wall Mounting
Preparing to Install An Optional Wall Mounting Arm.
This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this
procedure. Follow these steps:
1. Remove the base.
2. Follow the manufacturer’s instructions to assemble the wall mounting arm.
3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back
of the monitor.
4. Insert the 4 screws into the holes and tighten.
5. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions
on attaching it to the wall.
Noted: VESA mounting screw holes are not available for all models, please check with the dealer or official
department of AOC.
13

AOC C32G1 Specifications

General

3D	No
Panel type	VA
Color depth	8 bit
Pixel pitch	0.3637 x 0.3637 mm
Backlight type	W-LED
Display diagonal	31.5 \
Screen curvature	1800 mm
Adobe RGB coverage	90 %
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	48 - 146 Hz
Horizontal scan range	30 - 160 kHz
Supported video modes	1080p
Screen curvature rating	1800R
Viewable size, vertical	392.85 mm
sRGB coverage (typical)	122 %
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	698.4 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Tilt angle range	-5 - 21.5 °
Height adjustment	-
Cable lock slot type	Kensington
Number of OSD languages	16
On Screen Display (OSD)	Yes
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
HDMI version	1.4
DisplayPort version	1.2
Headphone connectivity	3.5 mm
Cables included	AC, DisplayPort, HDMI
HDMI cable length	1.8 m
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (standby)	0.5 W
Power consumption (typical)	50 W
Package type	Box
Package depth	242 mm
Package width	807 mm
Package height	551 mm
Package weight	9100 g
Recyclable packaging material	100 %
Mean time between failures (MTBF)	50000 h
Certification	ISO
Product color	Black
Heavy metals free	Hg (mercury)
Market positioning	Gaming
AMD FreeSync type	FreeSync Premium
AMD FreeSync refresh rate range	30 - 144 Hz
Sustainability certificates	REACH, RoHS, EPEAT Silver, ENERGY STAR
Operating altitude	0 - 5000 m
Non-operating altitude	5000 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	244.9 mm
Width (with stand)	713.1 mm
Height (with stand)	560.3 mm
Weight (with stand)	6980 g
Depth (without stand)	81.8 mm
Width (without stand)	425.4 mm
Weight (without stand)	5670 g
