AOC C32G1 - Page 52

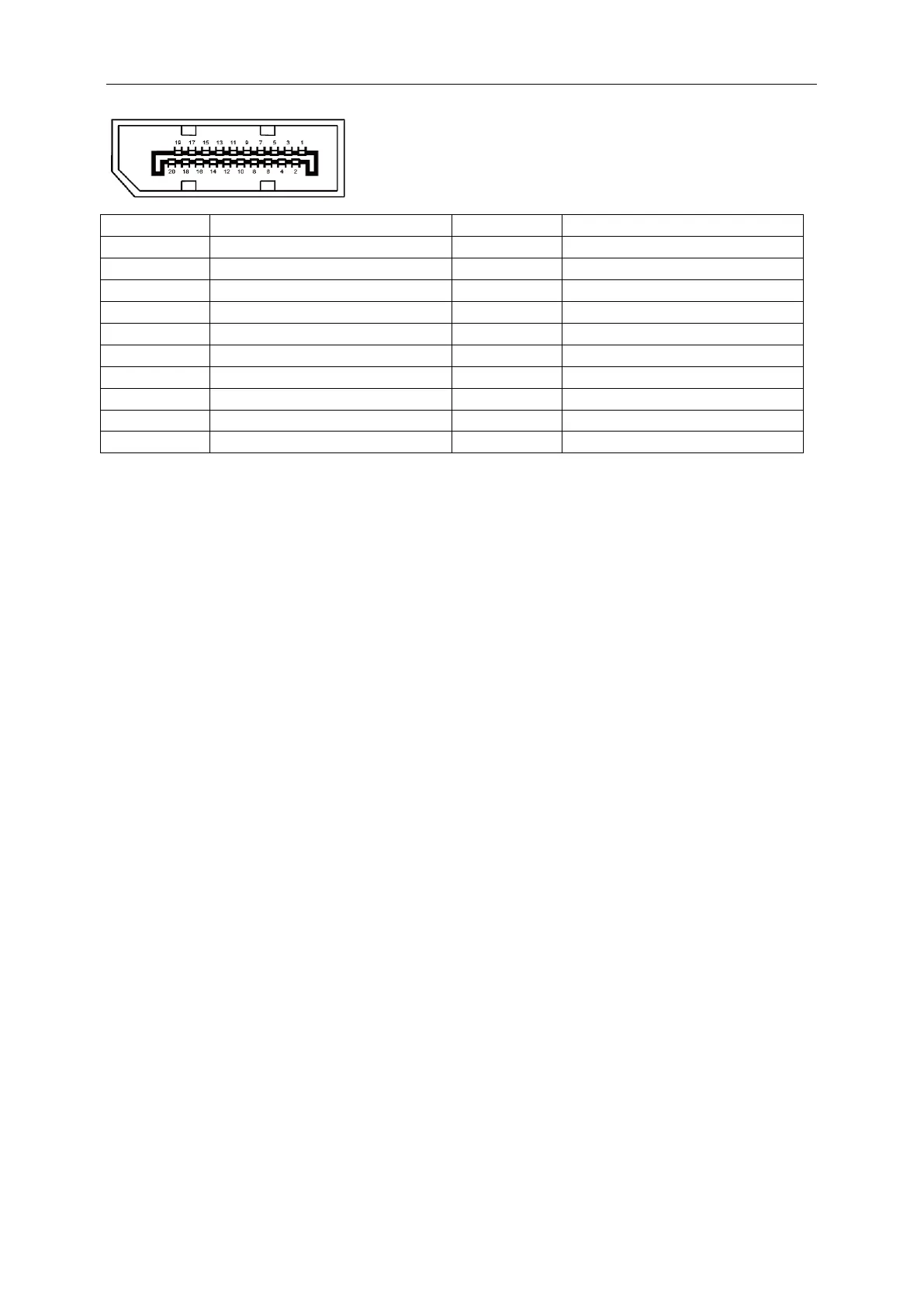

20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML Lane 3(n) 11 GND
2 GND 12 ML Lane 0(p)
3 ML Lane 3(p) 13 CONFIG1
4 ML Lane 2(n) 14 CONFIG2
5
GND
15
AUX CH(p)
6 ML Lane 2(p) 16 GND
7
ML Lane 1(n)
17
AUX CH(n)
8
GND
18
Hot Plug Detect
9
ML Lane 1(p)
19
Return OP PWR
10
ML Lane 0(n)
20
DP PWR
52
