AOC C32G2 User Manual

25

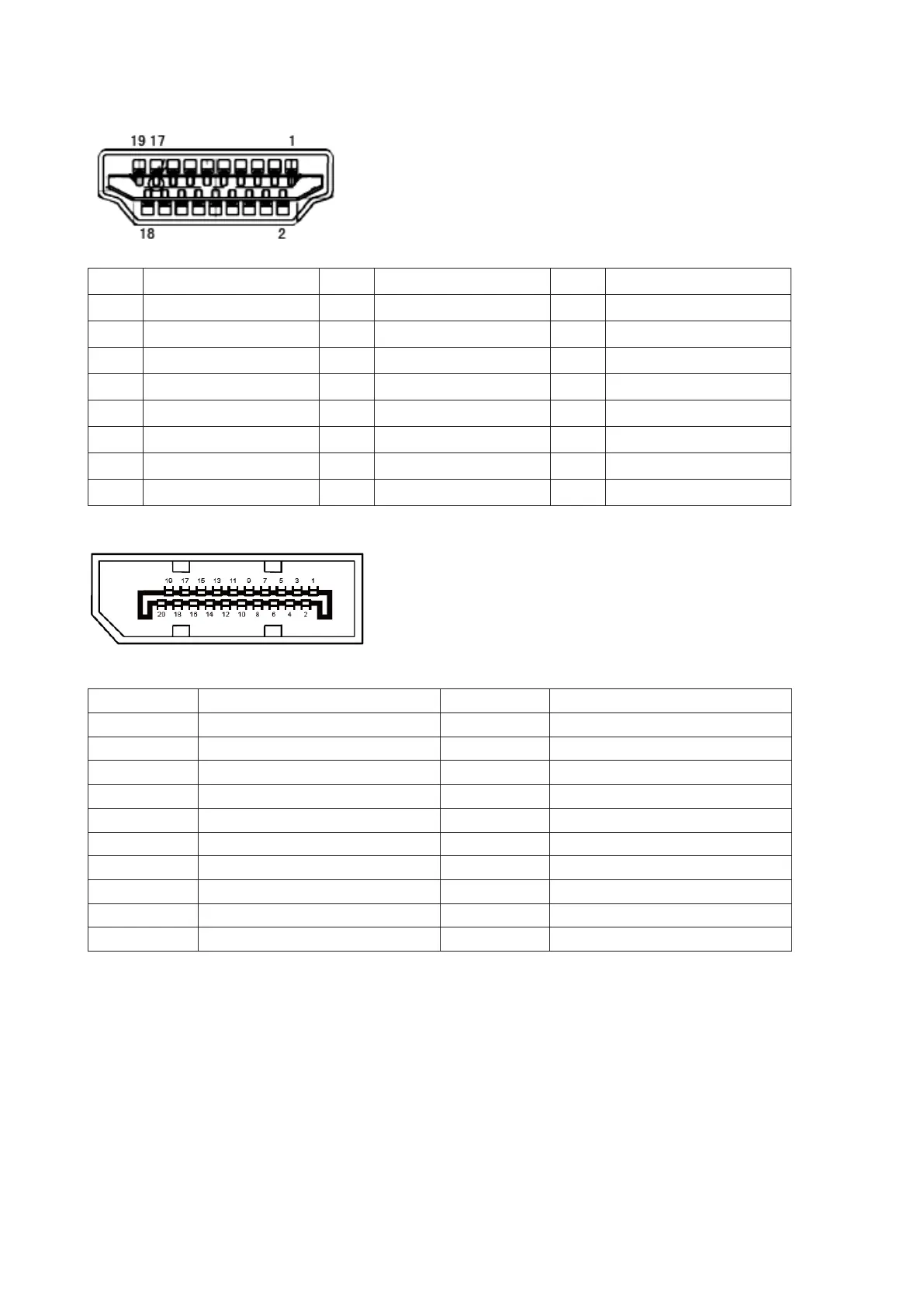

Pin Assignments
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_Lane 2 (p) 16 GND
7 ML_Lane 1 (n) 17 AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR

AOC C32G2 Specifications

General

Panel type	VA
Color depth	8 bit
Pixel pitch	0.363 x 0.363 mm
Backlight type	W-LED
Display surface	Matt
Display diagonal	32 \
Screen curvature	1500 mm
Adobe RGB coverage	91 %
Display technology	LED
Native aspect ratio	16:9
Supported video modes	720p, 1080p
Screen curvature rating	1500R
Viewable size, vertical	392.85 mm
sRGB coverage (typical)	120 %
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	698.4 mm
Digital vertical frequency	48 - 240 Hz
Digital horizontal frequency	30 - 255 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Feet color	Black
Certification	ISO
Product color	Black, Red
Detachable stand	Yes
Market positioning	Gaming
DisplayPort version	1.2
Headphone connectivity	3.5 mm
Cable lock slot	-
Tilt angle range	3.5 - 21.5 °
Height adjustment	130 mm
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SER
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	31 W
AMD FreeSync type	FreeSync
Sustainability certificates	ENERGY STAR
Cables included	DisplayPort, HDMI
DisplayPort cable length	1.8 m
Package type	Box
Package depth	227 mm
Package width	820 mm
Package height	524 mm
Package weight	10350 g

Weight and Dimensions

Depth (with stand)	244.86 mm
Height (with stand)	530.34 mm
Weight (with stand)	7250 g
Depth (without stand)	- mm
Width (without stand)	713.11 mm
Weight (without stand)	- g
