AOC CU34G2 User Manual

25

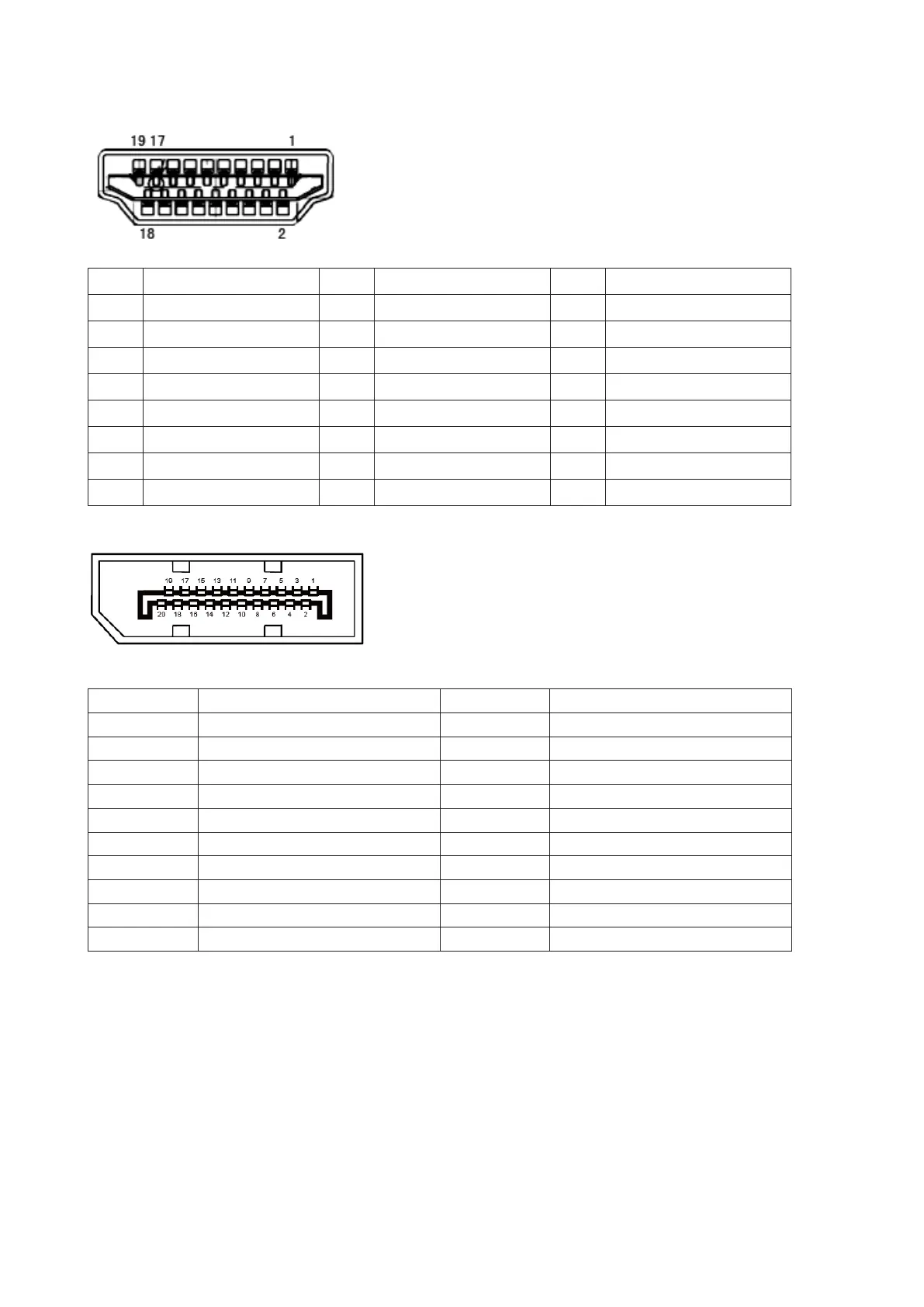

Pin Assignments
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_Lane 2 (p) 16 GND
7 ML_Lane 1 (n) 17 AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR

AOC CU34G2 Specifications

General

3D	-
Panel type	VA
Color depth	6 bit
Pixel pitch	0.2745 x 0.2745 mm
Backlight type	W-LED
Display diagonal	34 \
Screen curvature	1500 mm
Surface hardness	3H
Adobe RGB coverage	92 %
Display technology	LED
Native aspect ratio	21:9
Vertical scan range	50 - 146 Hz
Horizontal scan range	30 - 160 kHz
NTSC coverage (typical)	85 %
Screen curvature rating	1500R
Viewable size, vertical	333.72 mm
sRGB coverage (typical)	124 %
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	86.4 cm
Viewable size, horizontal	797.22 mm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	3440 x 1440
On/off switch	Yes
Exterior finish type	Textured
Recyclable packaging material	100 %
AMD FreeSync type	FreeSync
AMD FreeSync refresh rate range	48 - 100 Hz
Certification	True
Product color	Black, Red
Front bezel color	Black/Red
Heavy metals free	Hg (mercury)
Market positioning	Gaming
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.2
Headphone connectivity	3.5 mm
Number of upstream ports	4
VGA (D-Sub) ports quantity	0
Tilt angle range	-5 - 23 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (standby)	0.5 W
Power consumption (typical)	55 W
Cables included	DisplayPort, HDMI
Power cable length	1.8 m
Package depth	280 mm
Package width	903 mm
Package height	548 mm
Package weight	9470 g
Sustainability certificates	WEEE
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	132.37 mm
Height (with stand)	398.16 mm
Weight (with stand)	8000 g
Depth (without stand)	48 mm
Width (without stand)	808.34 mm
Height (without stand)	367.45 mm
Weight (without stand)	6500 g
