AOC E2236VW User Manual

21.5" LCD Color Monitor AOC e2236Vw
55

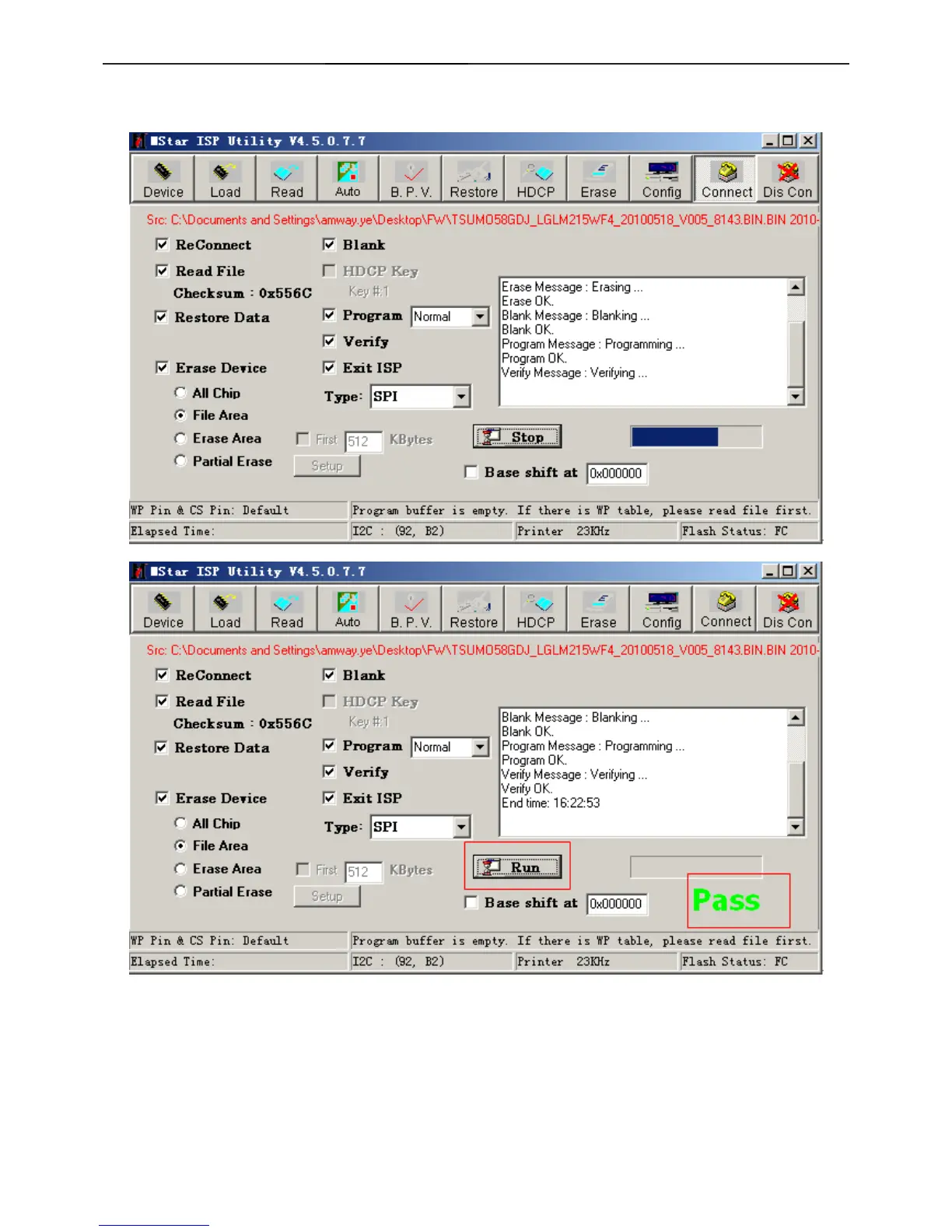

9).Then , press Run icon ,as below,Show Blank OK, Program OK, Verify OK, It’s successfully if interface show
PASS.
10) AC off, wait about one minute, after the elextricity large capacitance of power board release, then AC on,
otherwise, the key button and power button cann't work.
5.Check Software Version and auto color and reset:
You should check the program code is right in factory mode ;(about the method of enter factory mode ,pls reference
the service manual )
5.1Auto level :
1)Monitor display gray pattern ;
2)Enter the factory mode ;

AOC E2236VW Specifications

General

3D	No
Pixel pitch	0.248 x 0.248 mm
Aspect ratio	16:9
Display diagonal	21.5 \
Vertical scan range	55 - 75 Hz
Horizontal scan range	30 - 83 kHz
Viewable size diagonal	547 mm
Viewable size, vertical	268.5 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	2000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	476.6 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
DVI-I ports quantity	0
Certification	cCSAus, FCC, CE, EPA, Win 7, ROHS, CCC, TUV/S, TUV
Product color	Black
LED indicators	Power
Tilt angle range	-5 - 20 °
Number of OSD languages	15
Panel mounting interface	- mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	22 W
Package depth	129 mm
Package width	588 mm
Package height	389 mm
Package weight	5600 g

Weight and Dimensions

Depth (with stand)	206 mm
Width (with stand)	531 mm
Height (with stand)	396.57 mm
Weight (with stand)	4100 g
Weight (without stand)	- g
