Service Manual AOCi2252VW
16

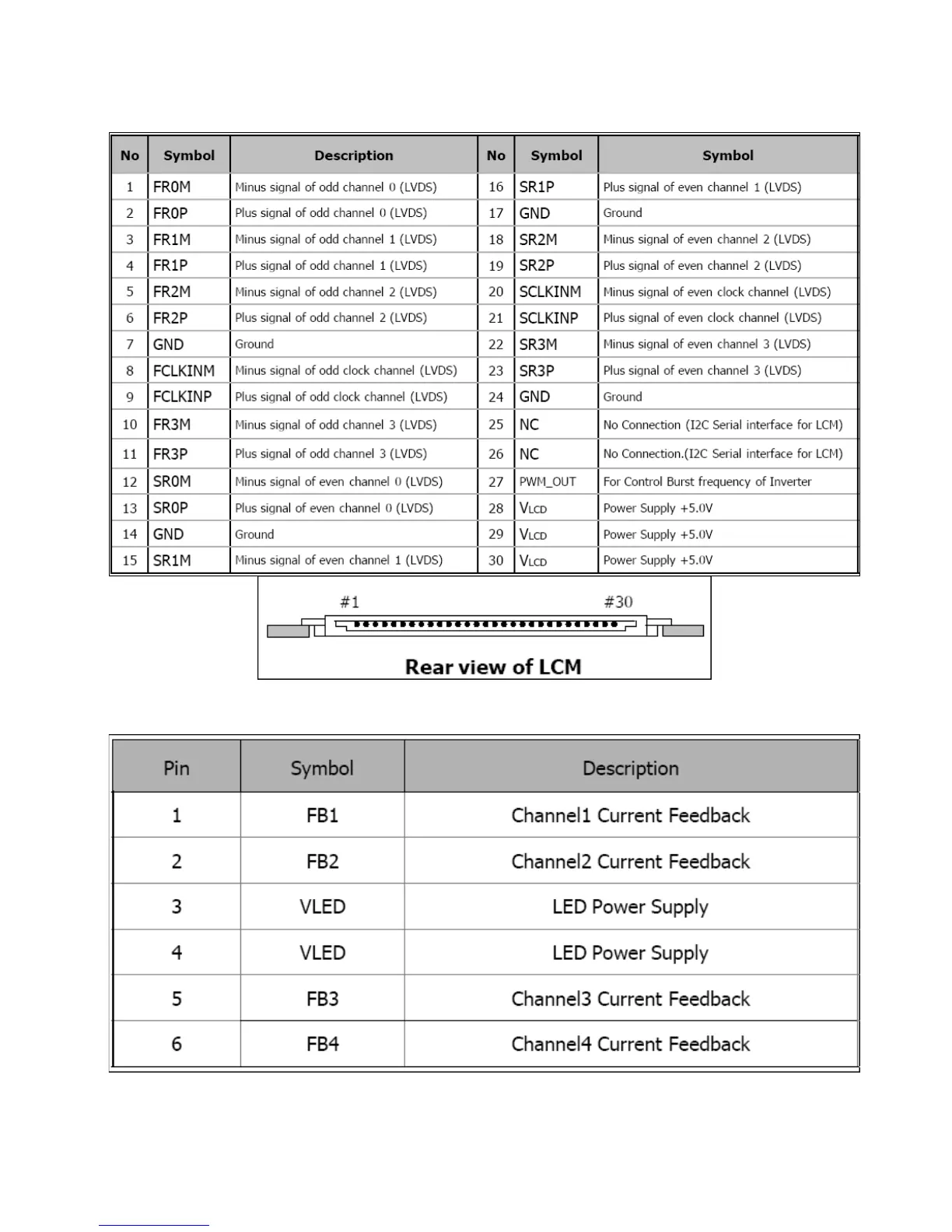

3.5 LCD module input terminal pin assignment
3.6 LED connector Interface
LED connector on Backlight Unit pin configuration CI1406M1HRB-NH
