Service Manual AOCi2252VW
7

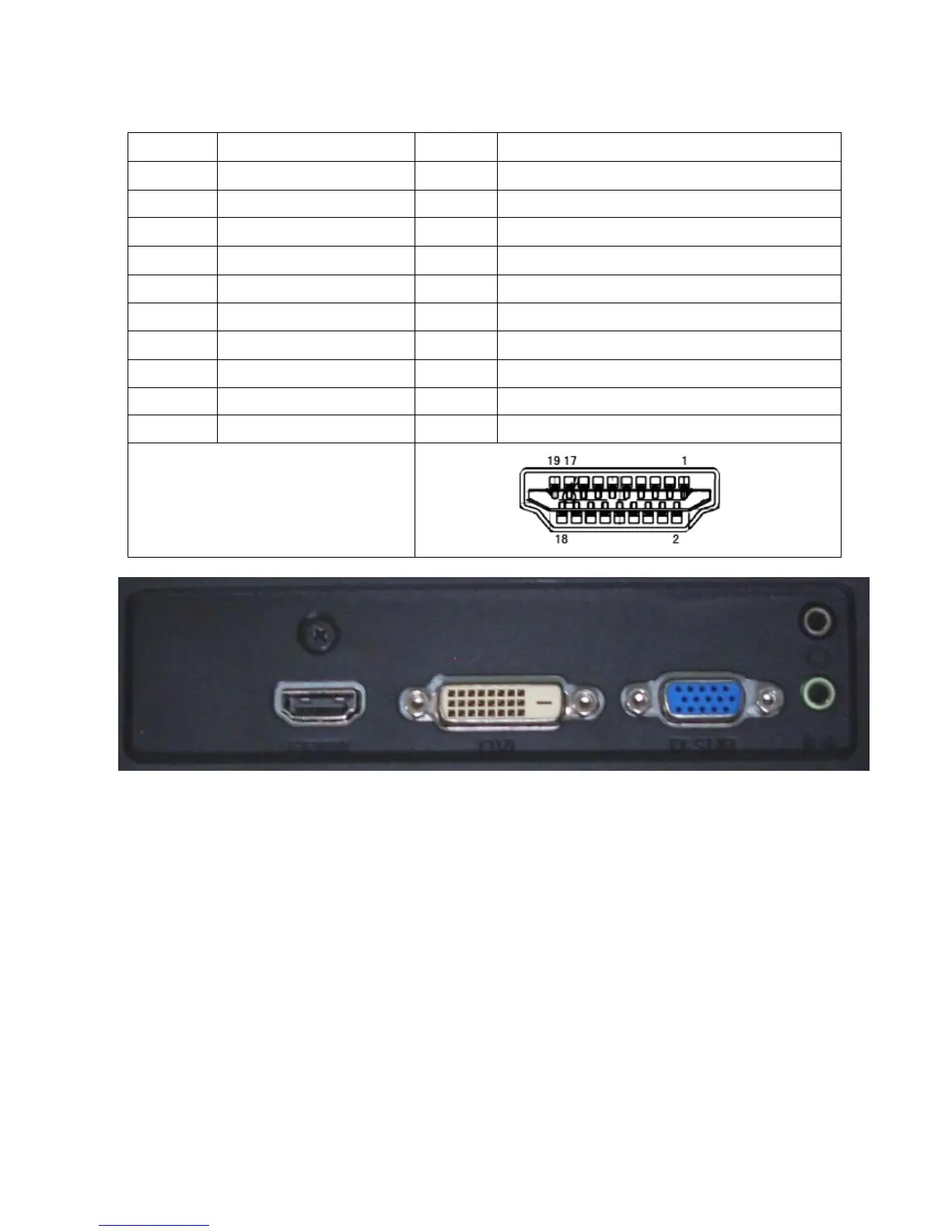

1.6 HDMI interface
Pin No. Description Pin No. Description
1 TMDS Data2+ 13 TMDS Clock Shield
2 TMDS Data2 Shield 14 TMDS Clock–
3 TMDS Data2– 15 CEC
4 TMDS Data1+ 16 Reserved (N.C. on device)
5 TMDS Data1 Shield 17 SCL
6 TMDS Data1– 18 SDA
7 TMDS Data0+ 19 DDC/CEC Ground
8 TMDS Data0 Shield 20 +5 V Power
9 TMDS Data0– 21 Hot Plug Detect
10 TMDS Clock+ 22
HDMI Connector layout
