AOC i2353Ph Service Manual

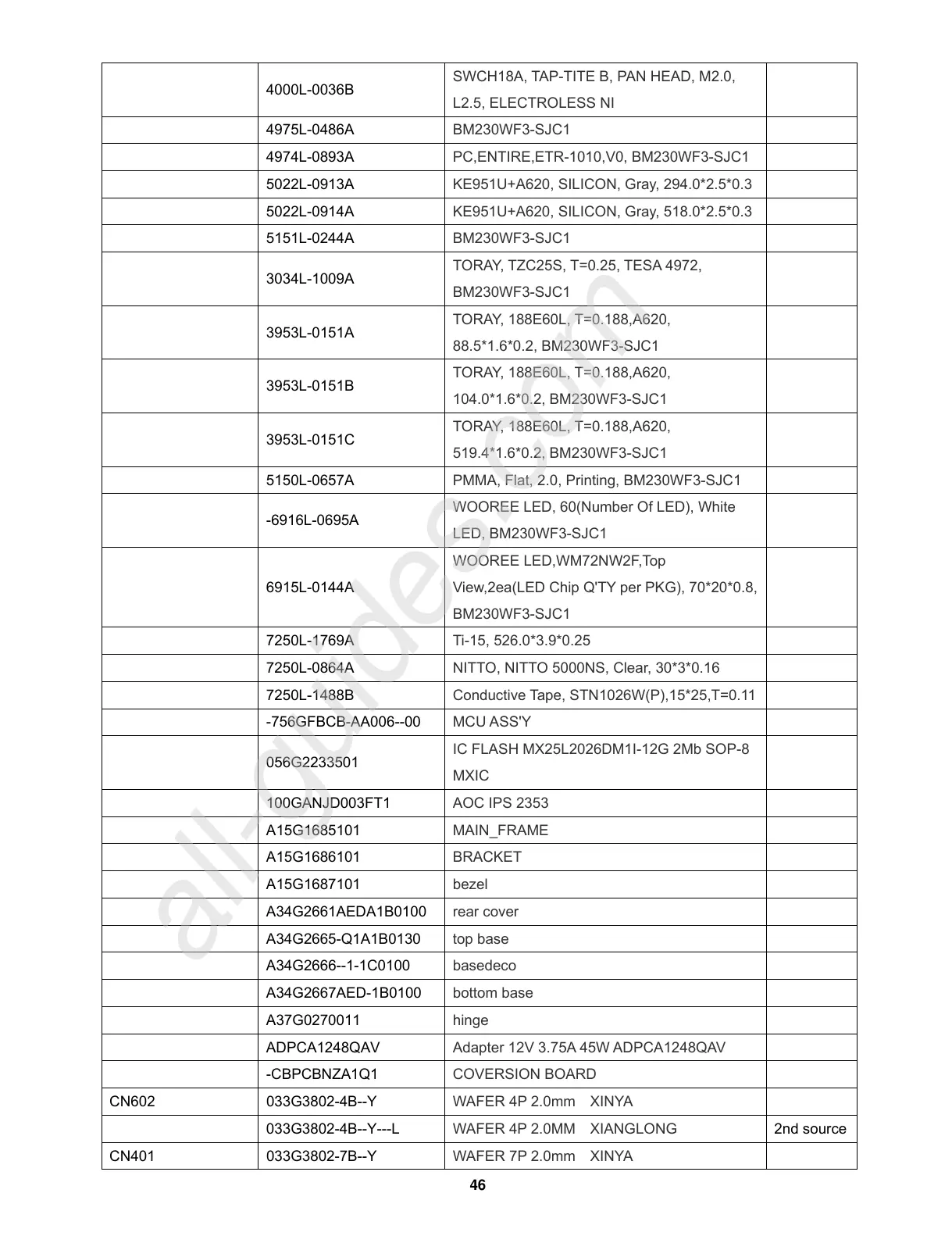

46
4000L-0036B
SWCH18A, TAP-TITE B, PAN HEAD, M2.0,
L2.5, ELECTROLESS NI
4975L-0486A BM230WF3-SJC1
4974L-0893A PC,ENTIRE,ETR-1010,V0, BM230WF3-SJC1
5022L-0913A KE951U+A620, SILICON, Gray, 294.0*2.5*0.3
5022L-0914A KE951U+A620, SILICON, Gray, 518.0*2.5*0.3
5151L-0244A BM230WF3-SJC1
3034L-1009A
TORAY, TZC25S, T=0.25, TESA 4972,
BM230WF3-SJC1
3953L-0151A
TORAY, 188E60L, T=0.188,A620,
88.5*1.6*0.2, BM230WF3-SJC1
3953L-0151B
TORAY, 188E60L, T=0.188,A620,
104.0*1.6*0.2, BM230WF3-SJC1
3953L-0151C
TORAY, 188E60L, T=0.188,A620,
519.4*1.6*0.2, BM230WF3-SJC1
5150L-0657A PMMA, Flat, 2.0, Printing, BM230WF3-SJC1
-6916L-0695A
WOOREE LED, 60(Number Of LED), White
LED, BM230WF3-SJC1
6915L-0144A
WOOREE LED,WM72NW2F,Top
View,2ea(LED Chip Q'TY per PKG), 70*20*0.8,
BM230WF3-SJC1
7250L-1769A Ti-15, 526.0*3.9*0.25
7250L-0864A NITTO, NITTO 5000NS, Clear, 30*3*0.16
7250L-1488B Conductive Tape, STN1026W(P),15*25,T=0.11
-756GFBCB-AA006--00 MCU ASS'Y
056G2233501
IC FLASH MX25L2026DM1I-12G 2Mb SOP-8
MXIC
100GANJD003FT1 AOC IPS 2353
A15G1685101 MAIN_FRAME
A15G1686101 BRACKET
A15G1687101 bezel
A34G2661AEDA1B0100 rear cover
A34G2665-Q1A1B0130 top base
A34G2666--1-1C0100 basedeco
A34G2667AED-1B0100 bottom base
A37G0270011 hinge
ADPCA1248QAV Adapter 12V 3.75A 45W ADPCA1248QAV
-CBPCBNZA1Q1 COVERSION BOARD
CN602 033G3802-4B--Y WAFER 4P 2.0mm XINYA
033G3802-4B--Y---L WAFER 4P 2.0MM XIANGLONG 2nd source
CN401 033G3802-7B--Y WAFER 7P 2.0mm XINYA
All manuals and user guides at all-guides.com
all-guides.com

AOC i2353Ph Specifications

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Display diagonal	23 \
Display technology	LED
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p, 480p, 576p, 720p
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	50000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 350, 720 x 400, 832 x 624, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
HDCP	Yes
DVI-D ports quantity	0
RMS rated power	4 W
Panel mounting interface	100 x 100 mm
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating altitude	0 - 3658 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Market positioning	-

Weight and Dimensions

Depth (without stand)	185.7 mm
Width (without stand)	549.5 mm
Height (without stand)	388.3 mm
Weight (without stand)	2850 g
