AOC i2353Ph Service Manual

47

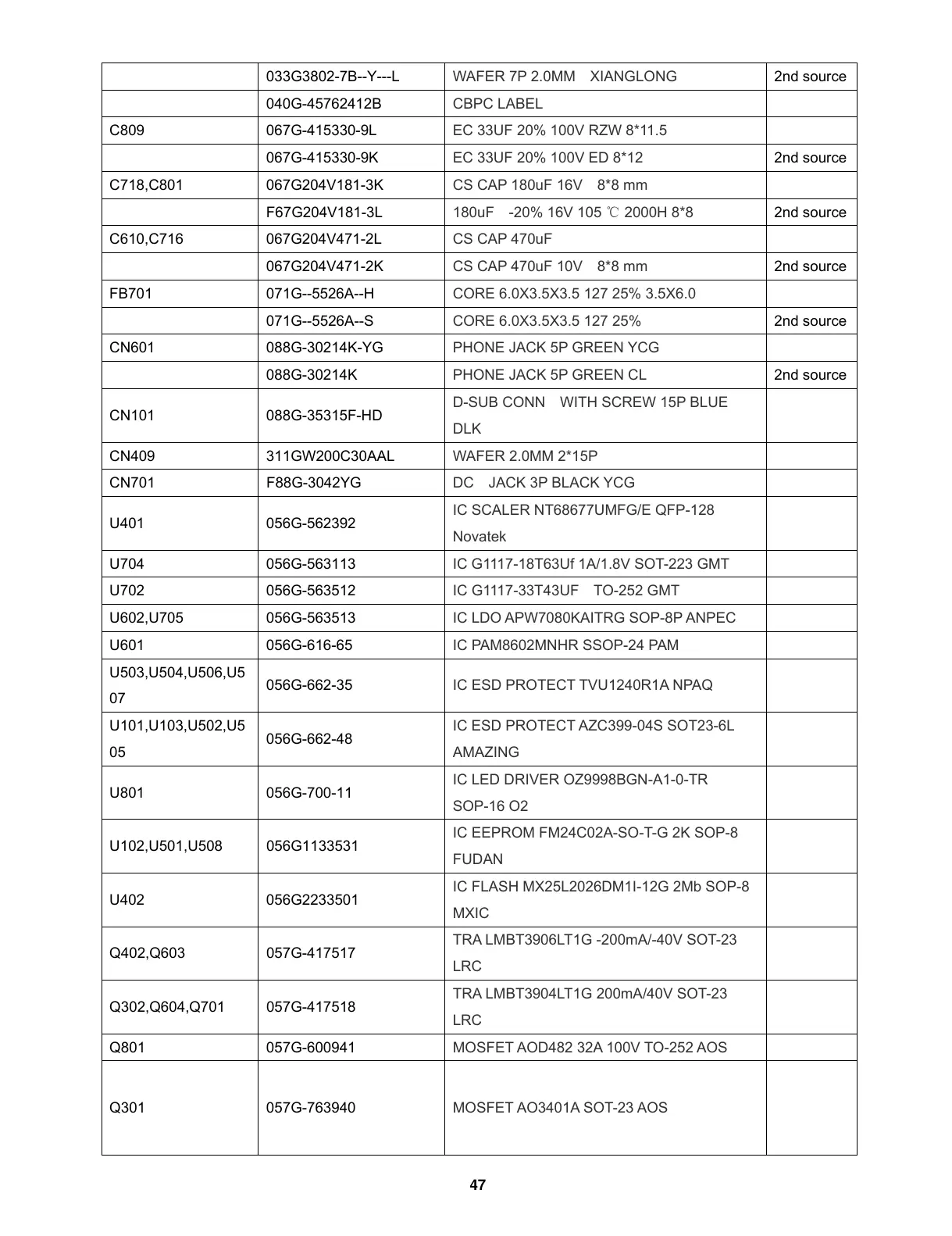

033G3802-7B--Y---L WAFER 7P 2.0MM XIANGLONG 2nd source
040G-45762412B CBPC LABEL
C809 067G-415330-9L EC 33UF 20% 100V RZW 8*11.5
067G-415330-9K EC 33UF 20% 100V ED 8*12 2nd source
C718,C801 067G204V181-3K CS CAP 180uF 16V 8*8 mm
F67G204V181-3L 180uF -20% 16V 105 2000H 8*8℃ 2nd source
C610,C716 067G204V471-2L CS CAP 470uF
067G204V471-2K CS CAP 470uF 10V 8*8 mm 2nd source
FB701 071G--5526A--H CORE 6.0X3.5X3.5 127 25% 3.5X6.0
071G--5526A--S CORE 6.0X3.5X3.5 127 25% 2nd source
CN601 088G-30214K-YG PHONE JACK 5P GREEN YCG
088G-30214K PHONE JACK 5P GREEN CL 2nd source
CN101 088G-35315F-HD
D-SUB CONN WITH SCREW 15P BLUE
DLK
CN409 311GW200C30AAL WAFER 2.0MM 2*15P
CN701 F88G-3042YG DC JACK 3P BLACK YCG
U401 056G-562392
IC SCALER NT68677UMFG/E QFP-128
Novatek
U704 056G-563113 IC G1117-18T63Uf 1A/1.8V SOT-223 GMT
U702 056G-563512 IC G1117-33T43UF TO-252 GMT
U602,U705 056G-563513 IC LDO APW7080KAITRG SOP-8P ANPEC
U601 056G-616-65 IC PAM8602MNHR SSOP-24 PAM
U503,U504,U506,U5
07
056G-662-35 IC ESD PROTECT TVU1240R1A NPAQ
U101,U103,U502,U5
05
056G-662-48
IC ESD PROTECT AZC399-04S SOT23-6L
AMAZING
U801 056G-700-11
IC LED DRIVER OZ9998BGN-A1-0-TR
SOP-16 O2
U102,U501,U508 056G1133531
IC EEPROM FM24C02A-SO-T-G 2K SOP-8
FUDAN
U402 056G2233501
IC FLASH MX25L2026DM1I-12G 2Mb SOP-8
MXIC
Q402,Q603 057G-417517
TRA LMBT3906LT1G -200mA/-40V SOT-23
LRC
Q302,Q604,Q701 057G-417518
TRA LMBT3904LT1G 200mA/40V SOT-23
LRC
Q801 057G-600941 MOSFET AOD482 32A 100V TO-252 AOS
Q301 057G-763940 MOSFET AO3401A SOT-23 AOS
All manuals and user guides at all-guides.com

AOC i2353Ph Specifications

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Display diagonal	23 \
Display technology	LED
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p, 480p, 576p, 720p
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	50000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 350, 720 x 400, 832 x 624, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
HDCP	Yes
DVI-D ports quantity	0
RMS rated power	4 W
Panel mounting interface	100 x 100 mm
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating altitude	0 - 3658 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Market positioning	-

Weight and Dimensions

Depth (without stand)	185.7 mm
Width (without stand)	549.5 mm
Height (without stand)	388.3 mm
Weight (without stand)	2850 g
