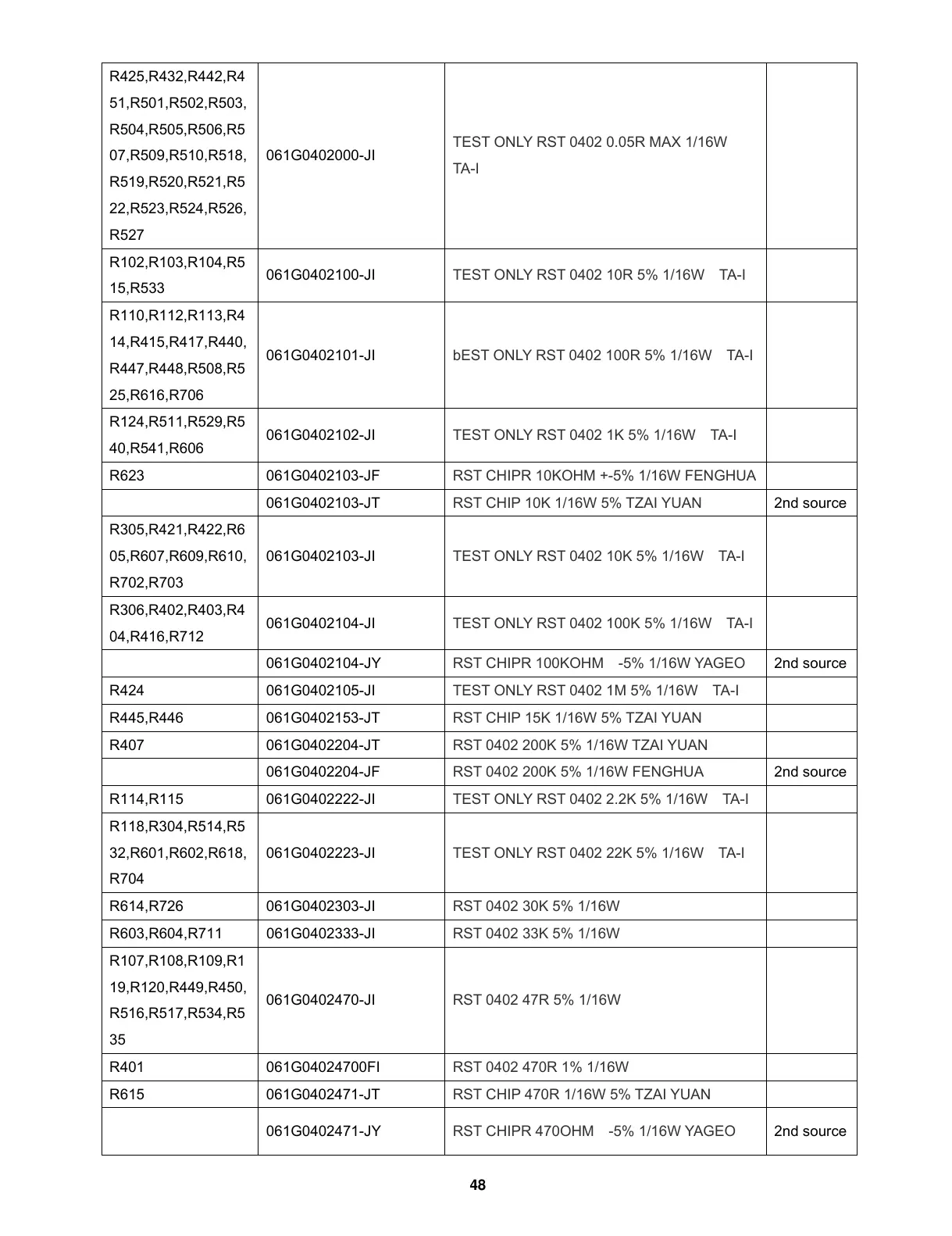

AOC i2353Ph Service Manual

48
R425,R432,R442,R4
51,R501,R502,R503,
R504,R505,R506,R5
07,R509,R510,R518,
R519,R520,R521,R5
22,R523,R524,R526,
R527
061G0402000-JI
TEST ONLY RST 0402 0.05R MAX 1/16W
TA-I
R102,R103,R104,R5
15,R533
061G0402100-JI TEST ONLY RST 0402 10R 5% 1/16W TA-I
R110,R112,R113,R4
14,R415,R417,R440,
R447,R448,R508,R5
25,R616,R706
061G0402101-JI bEST ONLY RST 0402 100R 5% 1/16W TA-I
R124,R511,R529,R5
40,R541,R606
061G0402102-JI TEST ONLY RST 0402 1K 5% 1/16W TA-I
R623 061G0402103-JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
061G0402103-JT RST CHIP 10K 1/16W 5% TZAI YUAN 2nd source
R305,R421,R422,R6
05,R607,R609,R610,
R702,R703
061G0402103-JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R306,R402,R403,R4
04,R416,R712
061G0402104-JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
061G0402104-JY RST CHIPR 100KOHM -5% 1/16W YAGEO 2nd source
R424 061G0402105-JI TEST ONLY RST 0402 1M 5% 1/16W TA-I
R445,R446 061G0402153-JT RST CHIP 15K 1/16W 5% TZAI YUAN
R407 061G0402204-JT RST 0402 200K 5% 1/16W TZAI YUAN
061G0402204-JF RST 0402 200K 5% 1/16W FENGHUA 2nd source
R114,R115 061G0402222-JI TEST ONLY RST 0402 2.2K 5% 1/16W TA-I
R118,R304,R514,R5
32,R601,R602,R618,
R704
061G0402223-JI TEST ONLY RST 0402 22K 5% 1/16W TA-I
R614,R726 061G0402303-JI RST 0402 30K 5% 1/16W
R603,R604,R711 061G0402333-JI RST 0402 33K 5% 1/16W
R107,R108,R109,R1
19,R120,R449,R450,
R516,R517,R534,R5
35
061G0402470-JI RST 0402 47R 5% 1/16W
R401 061G04024700FI RST 0402 470R 1% 1/16W
R615 061G0402471-JT RST CHIP 470R 1/16W 5% TZAI YUAN
061G0402471-JY RST CHIPR 470OHM -5% 1/16W YAGEO 2nd source
All manuals and user guides at all-guides.com

AOC i2353Ph Specifications

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Display diagonal	23 \
Display technology	LED
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p, 480p, 576p, 720p
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	50000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 350, 720 x 400, 832 x 624, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
HDCP	Yes
DVI-D ports quantity	0
RMS rated power	4 W
Panel mounting interface	100 x 100 mm
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating altitude	0 - 3658 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Market positioning	-

Weight and Dimensions

Depth (without stand)	185.7 mm
Width (without stand)	549.5 mm
Height (without stand)	388.3 mm
Weight (without stand)	2850 g
