AOC i2353Ph Service Manual

50

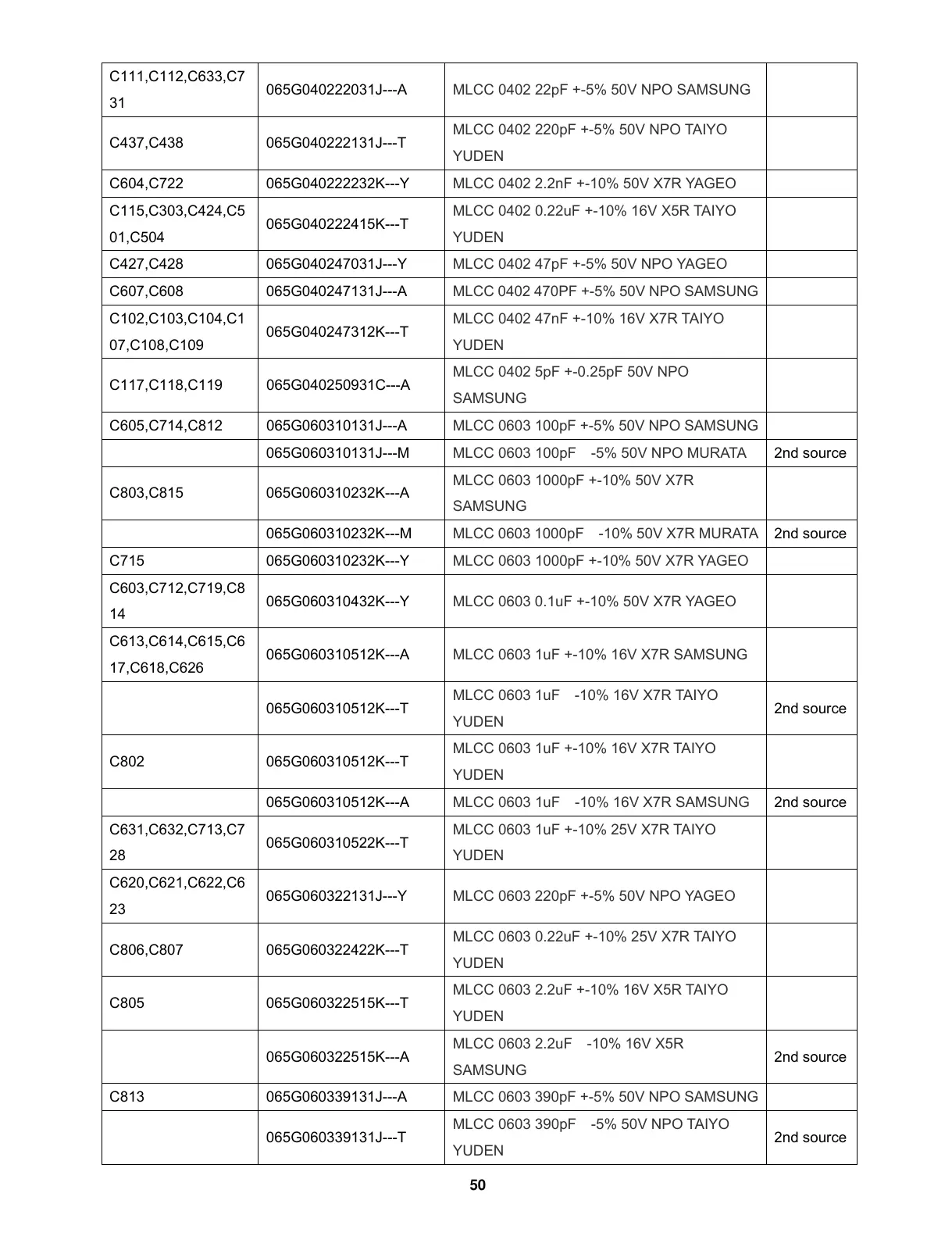

C111,C112,C633,C7
31
065G040222031J---A MLCC 0402 22pF +-5% 50V NPO SAMSUNG
C437,C438 065G040222131J---T
MLCC 0402 220pF +-5% 50V NPO TAIYO
YUDEN
C604,C722 065G040222232K---Y MLCC 0402 2.2nF +-10% 50V X7R YAGEO
C115,C303,C424,C5
01,C504
065G040222415K---T
MLCC 0402 0.22uF +-10% 16V X5R TAIYO
YUDEN
C427,C428 065G040247031J---Y MLCC 0402 47pF +-5% 50V NPO YAGEO
C607,C608 065G040247131J---A MLCC 0402 470PF +-5% 50V NPO SAMSUNG
C102,C103,C104,C1
07,C108,C109
065G040247312K---T
MLCC 0402 47nF +-10% 16V X7R TAIYO
YUDEN
C117,C118,C119 065G040250931C---A
MLCC 0402 5pF +-0.25pF 50V NPO
SAMSUNG
C605,C714,C812 065G060310131J---A MLCC 0603 100pF +-5% 50V NPO SAMSUNG
065G060310131J---M MLCC 0603 100pF -5% 50V NPO MURATA 2nd source
C803,C815 065G060310232K---A
MLCC 0603 1000pF +-10% 50V X7R
SAMSUNG
065G060310232K---M MLCC 0603 1000pF -10% 50V X7R MURATA 2nd source
C715 065G060310232K---Y MLCC 0603 1000pF +-10% 50V X7R YAGEO
C603,C712,C719,C8
14
065G060310432K---Y MLCC 0603 0.1uF +-10% 50V X7R YAGEO
C613,C614,C615,C6
17,C618,C626
065G060310512K---A MLCC 0603 1uF +-10% 16V X7R SAMSUNG
065G060310512K---T
MLCC 0603 1uF -10% 16V X7R TAIYO
YUDEN
2nd source
C802 065G060310512K---T
MLCC 0603 1uF +-10% 16V X7R TAIYO
YUDEN
065G060310512K---A MLCC 0603 1uF -10% 16V X7R SAMSUNG 2nd source
C631,C632,C713,C7
28
065G060310522K---T
MLCC 0603 1uF +-10% 25V X7R TAIYO
YUDEN
C620,C621,C622,C6
23
065G060322131J---Y MLCC 0603 220pF +-5% 50V NPO YAGEO
C806,C807 065G060322422K---T
MLCC 0603 0.22uF +-10% 25V X7R TAIYO
YUDEN
C805 065G060322515K---T
MLCC 0603 2.2uF +-10% 16V X5R TAIYO
YUDEN
065G060322515K---A
MLCC 0603 2.2uF -10% 16V X5R
SAMSUNG
2nd source
C813 065G060339131J---A MLCC 0603 390pF +-5% 50V NPO SAMSUNG
065G060339131J---T
MLCC 0603 390pF -5% 50V NPO TAIYO
YUDEN
2nd source
All manuals and user guides at all-guides.com

AOC i2353Ph Specifications

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Display diagonal	23 \
Display technology	LED
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p, 480p, 576p, 720p
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	50000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 350, 720 x 400, 832 x 624, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
HDCP	Yes
DVI-D ports quantity	0
RMS rated power	4 W
Panel mounting interface	100 x 100 mm
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating altitude	0 - 3658 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Market positioning	-

Weight and Dimensions

Depth (without stand)	185.7 mm
Width (without stand)	549.5 mm
Height (without stand)	388.3 mm
Weight (without stand)	2850 g
