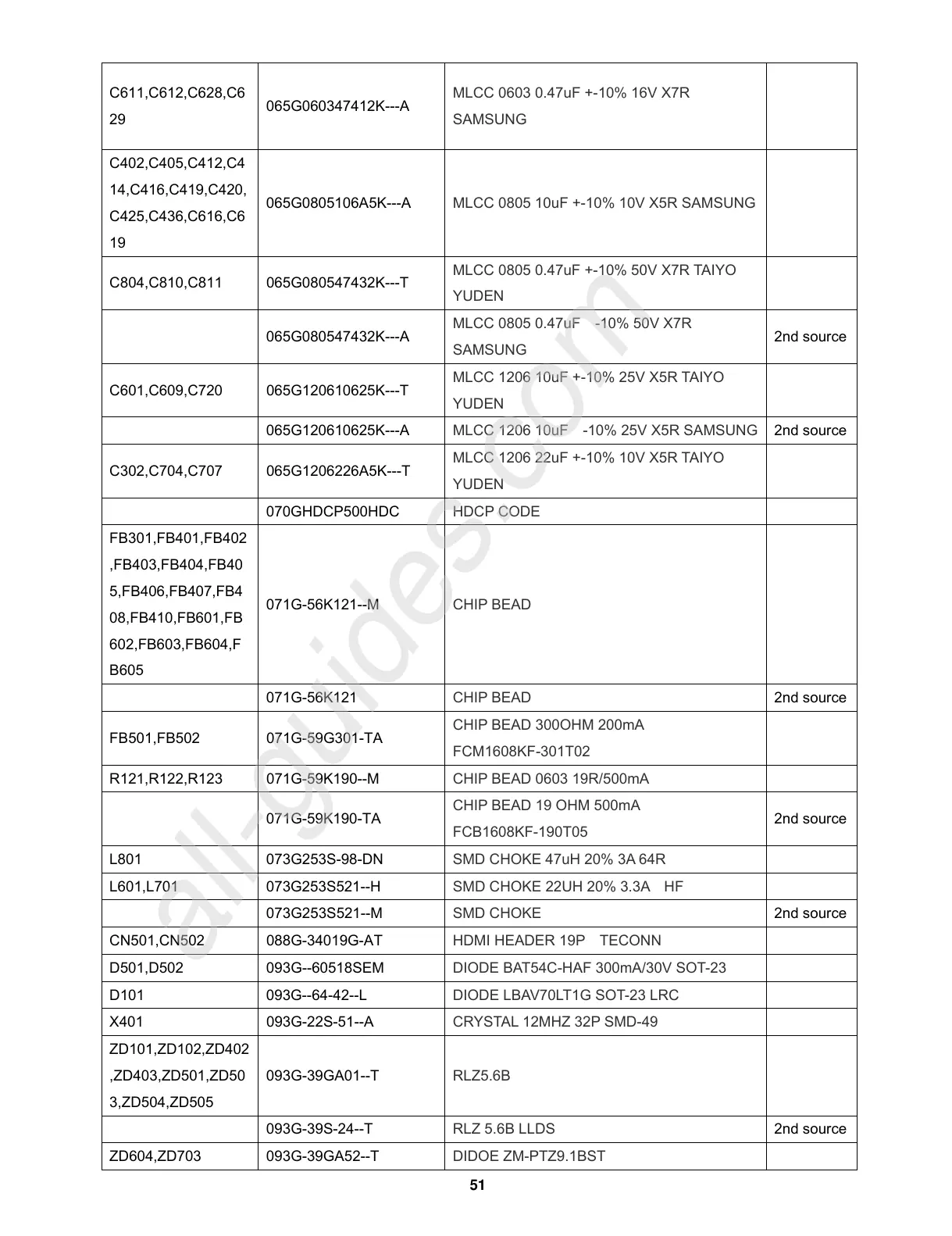

AOC i2353Ph Service Manual

51
C611,C612,C628,C6
29
065G060347412K---A
MLCC 0603 0.47uF +-10% 16V X7R
SAMSUNG
C402,C405,C412,C4
14,C416,C419,C420,
C425,C436,C616,C6
19
065G0805106A5K---A MLCC 0805 10uF +-10% 10V X5R SAMSUNG
C804,C810,C811 065G080547432K---T
MLCC 0805 0.47uF +-10% 50V X7R TAIYO
YUDEN
065G080547432K---A
MLCC 0805 0.47uF -10% 50V X7R
SAMSUNG
2nd source
C601,C609,C720 065G120610625K---T
MLCC 1206 10uF +-10% 25V X5R TAIYO
YUDEN
065G120610625K---A MLCC 1206 10uF -10% 25V X5R SAMSUNG 2nd source
C302,C704,C707 065G1206226A5K---T
MLCC 1206 22uF +-10% 10V X5R TAIYO
YUDEN
070GHDCP500HDC HDCP CODE
FB301,FB401,FB402
,FB403,FB404,FB40
5,FB406,FB407,FB4
08,FB410,FB601,FB
602,FB603,FB604,F
B605
071G-56K121--M CHIP BEAD
071G-56K121 CHIP BEAD 2nd source
FB501,FB502 071G-59G301-TA
CHIP BEAD 300OHM 200mA
FCM1608KF-301T02
R121,R122,R123 071G-59K190--M CHIP BEAD 0603 19R/500mA
071G-59K190-TA
CHIP BEAD 19 OHM 500mA
FCB1608KF-190T05
2nd source
L801 073G253S-98-DN SMD CHOKE 47uH 20% 3A 64R
L601,L701 073G253S521--H SMD CHOKE 22UH 20% 3.3A HF
073G253S521--M SMD CHOKE 2nd source
CN501,CN502 088G-34019G-AT HDMI HEADER 19P TECONN
D501,D502 093G--60518SEM DIODE BAT54C-HAF 300mA/30V SOT-23
D101 093G--64-42--L DIODE LBAV70LT1G SOT-23 LRC
X401 093G-22S-51--A CRYSTAL 12MHZ 32P SMD-49
ZD101,ZD102,ZD402
,ZD403,ZD501,ZD50
3,ZD504,ZD505
093G-39GA01--T RLZ5.6B
093G-39S-24--T RLZ 5.6B LLDS 2nd source
ZD604,ZD703 093G-39GA52--T DIDOE ZM-PTZ9.1BST
All manuals and user guides at all-guides.com
all-guides.com

AOC i2353Ph Specifications

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Display diagonal	23 \
Display technology	LED
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p, 480p, 576p, 720p
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	50000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 350, 720 x 400, 832 x 624, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
HDCP	Yes
DVI-D ports quantity	0
RMS rated power	4 W
Panel mounting interface	100 x 100 mm
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating altitude	0 - 3658 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Market positioning	-

Weight and Dimensions

Depth (without stand)	185.7 mm
Width (without stand)	549.5 mm
Height (without stand)	388.3 mm
Weight (without stand)	2850 g
