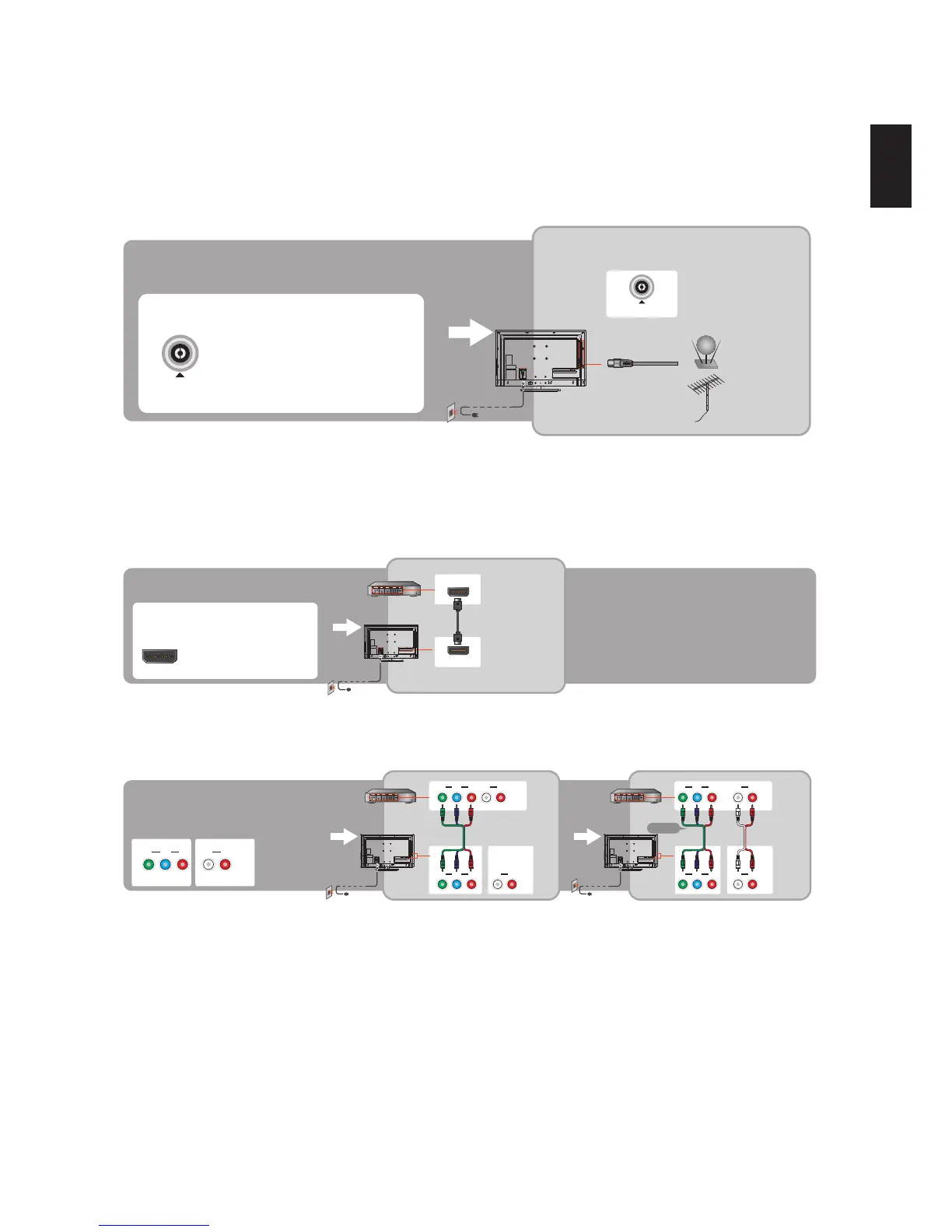

Connecting TV
Cable System or VHF/UHF Antenna System
You can enjoy standard analog definition programming with your new LCD TV using cable or VHF/UHF antenna signal.
It is strongly recommended that you connect the antenna/cable input using a 75-ohm coaxial cable to receive optimum picture quality. A 300-ohm
twin lead cable can be easily affected by radio frequency interference, resulting in signal degradation.
TUNER
TUNER
TUNER
High Definition Interface
You can enjoy high-denition programming by subscribing to a high-denition cable service or a high-denition satellite service. For the best
possible picture, make sure you connect this equipment to your TV via the HDMI or component video (with audio) input on the back of your TV.
HDMI Connection
HDMI
HDMI
HDMI
HDMI
HD Multimedia Interface
HDMI IN
If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI IN (with DVI-to-HDMI cable or adapter) jack and connect
the audio jack to the PC AUDIO IN jacks.
Component Signal Connection
Y Pb Pr
Component Video Input
Component IN
L RY Pb Pr
Y Pb Pr L R
L RY Pb Pr
L R
L R
Y Pb Pr
Y Pb Pr
Audio
To Next Page
