AOC Q32V3 User Manual

19
Driver

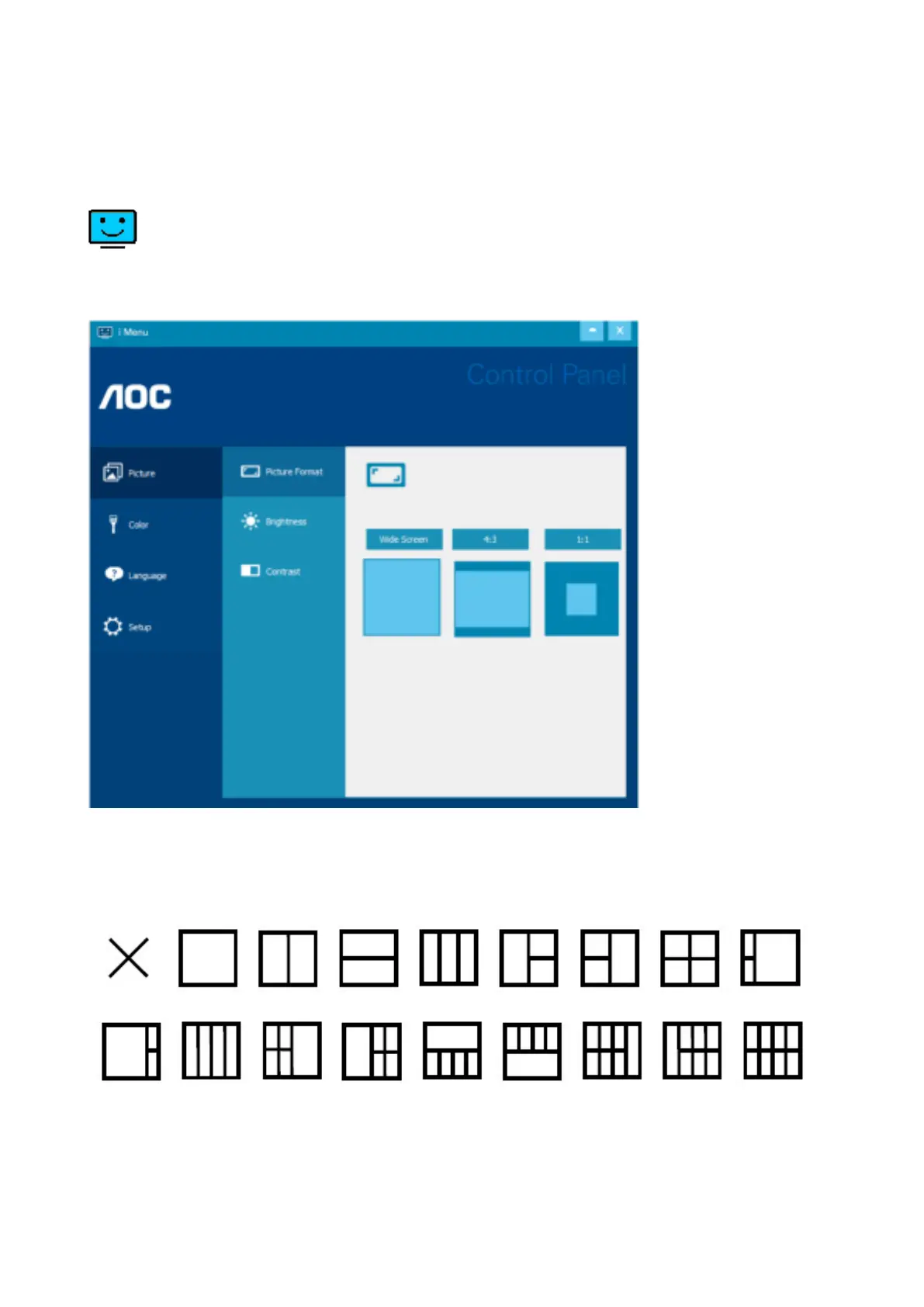

i-Menu (Screen+)
Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen
menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide. The
software Supported operating systems: Windows 10, Windows 8, Windows 7.
Screen+ can be turned on via i-Menu. It is a desktop screen splitting tool, it splits the desktop into different panels, and
each panel displays a different window. You only need to drag the window to a corresponding panel when you want to
access it. It supports multiple monitor display to make your task easier.

AOC Q32V3 Specifications

General

Panel type	VA
Pixel pitch	0.273 x 0.273 mm
Screen shape	Flat
Backlight type	LED
Display diagonal	31.5 \
Native aspect ratio	-
Vertical scan range	48 - 75 Hz
Horizontal scan range	30 - 114 kHz
NTSC coverage (typical)	80 %
Viewable size, vertical	393.12 mm
sRGB coverage (typical)	130 %
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Viewable size, horizontal	698.88 mm
Viewing angle, horizontal	176 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	2560 x 1440
HDMI version	1.4
DisplayPort version	1.2
Tilt angle range	-3.5 - 16.5 °
Panel mounting interface	100 x 100 mm
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	47 W
Certification	CE, CB, FCC, RoHS, Windows 10
Product color	Silver, White
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth (with stand)	205.4 mm
Width (with stand)	730.2 mm
Height (with stand)	531.6 mm
Weight (with stand)	6790 g
Depth (without stand)	47.5 mm
Height (without stand)	426.5 mm
Weight (without stand)	5570 g
