17
STANDARD
RESOLUTION
HORIZONTAL
FREQUENCY
VERTICAL
FREQUENCY
IBM
720 x 400 31.47kHz 70Hz
VGA 640 x 480 31.47kHz 60Hz
VESA/85 640 x 480 43.3kHz 85Hz
VESA/85 800 x 600 53.67kHz 85Hz
VESA/60 1024 x 768 48.36kHz 60Hz
1 5
6
10
11 15
15 - Pin Color Display Signal Cable
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1. Red 9. NC
2. Green 10. Ground
3. Blue 11. Monitor Ground
4. Ground 12. DDC-Serial Data
5. Ground 13. H-Sync
6. R-Ground 14. V-Sync / *V-Clk
7. G-Ground 15. DDC-Serial Clock
8. B-Ground
R
For DDC

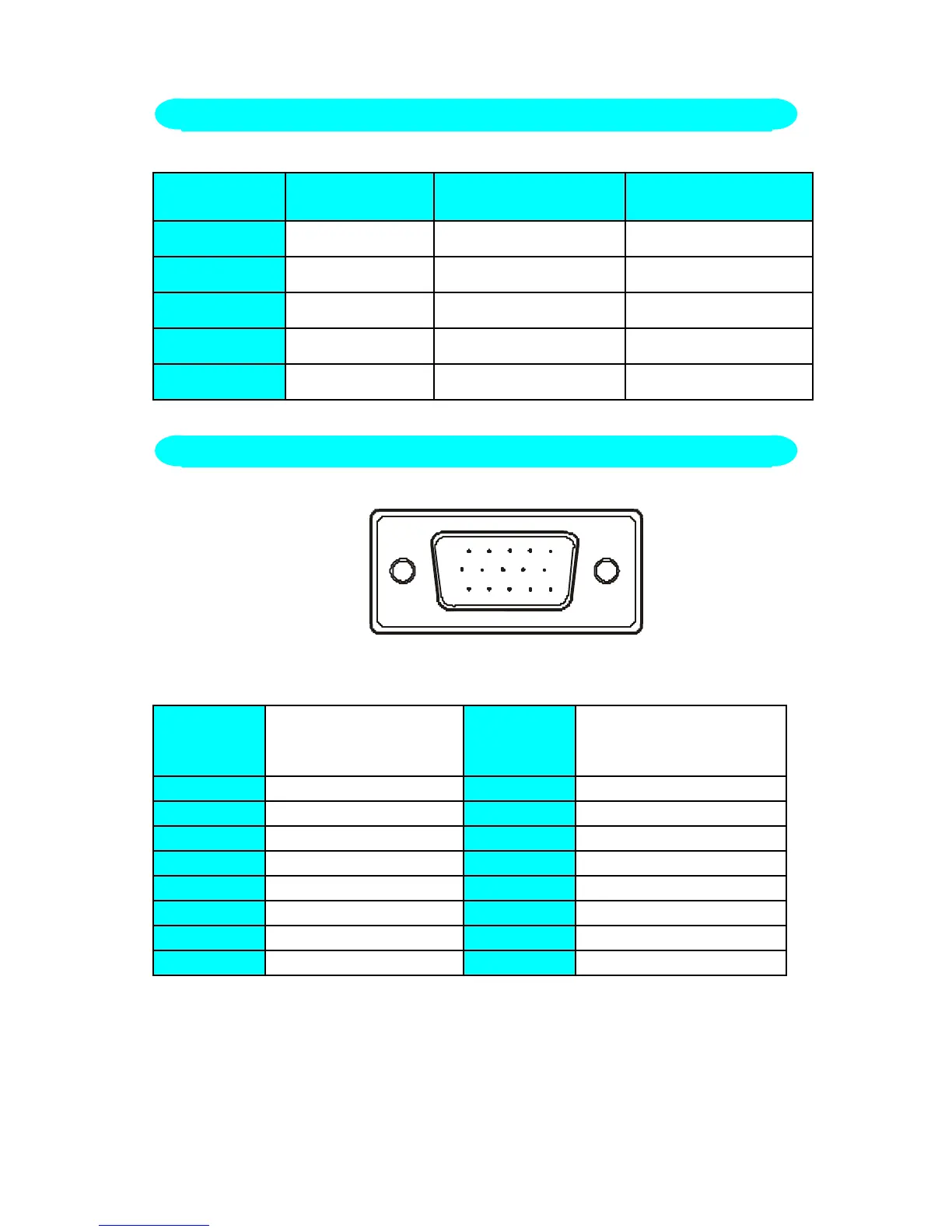

FACTORY PRESET TIMING TABLE
CONNECTOR PIN ASSIGNMENT
