17
4.3.3 TPM185B1-BGEL03:
4.3.3.1 OVERVIEW
M185BGE-L22 is a 18.5” TFT Liquid Crystal Display module with WLED Backlight unit and 30 pins 1ch-LVDS
interface. This module supports 1366 x 768 HD mode and can display up to 16.7M colors. The converter module for
Backlight is not built in.
4.3.3.2 FEATURES
- Contrast ratio 700:1
- Response time 5ms.
- Brightness 200nits (Typ.)
- Color saturation NTSC 72%.
- WXGA (1366 x 768 pixels) resolution.
- LVDS (Low Voltage Differential Signaling) interface.
- RoHS compliance.

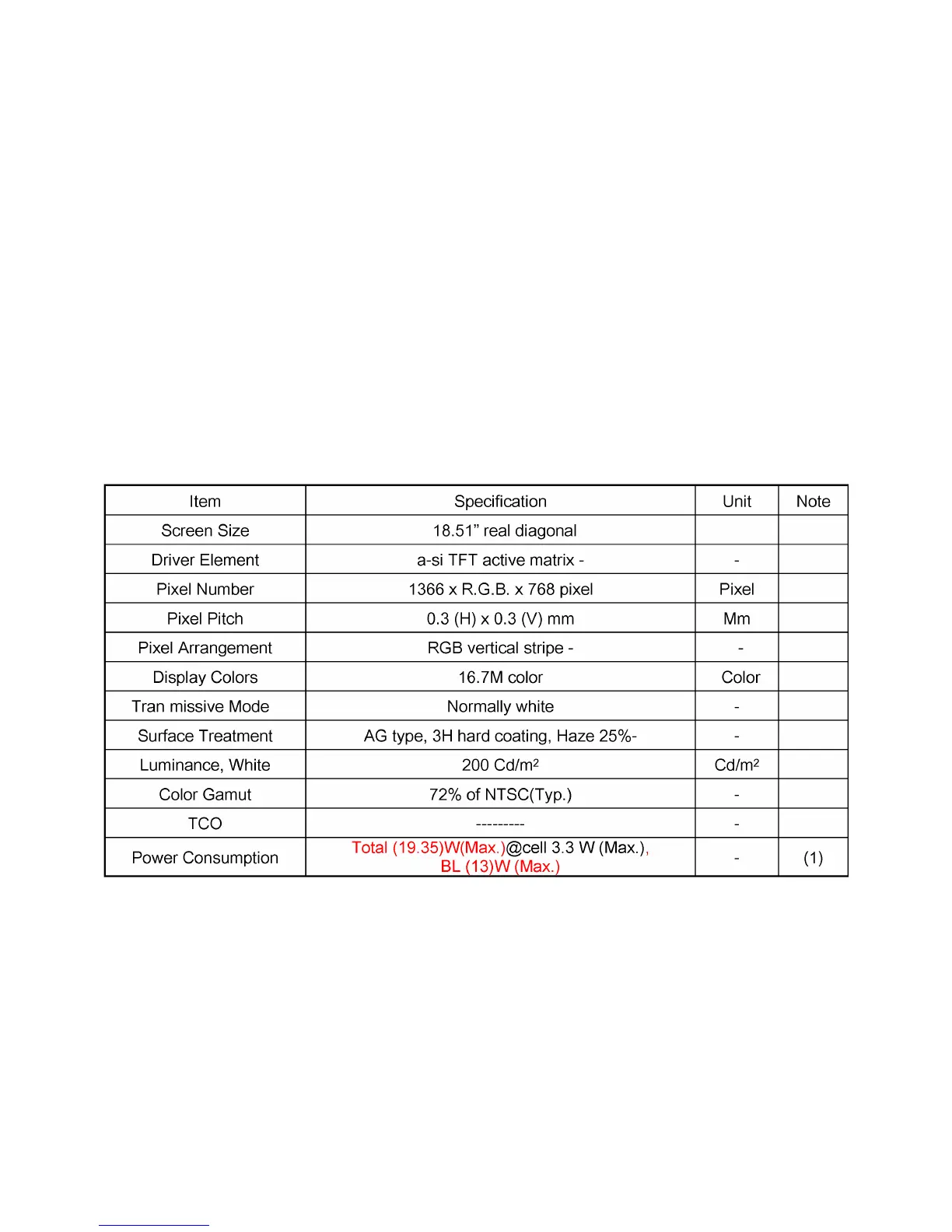

4.3.3.3 GENERAL SPECIFICATI0NS
Note (1) The specified power consumption: Total= cell (reference 4.3.1)+BL (reference 4.3.3)
