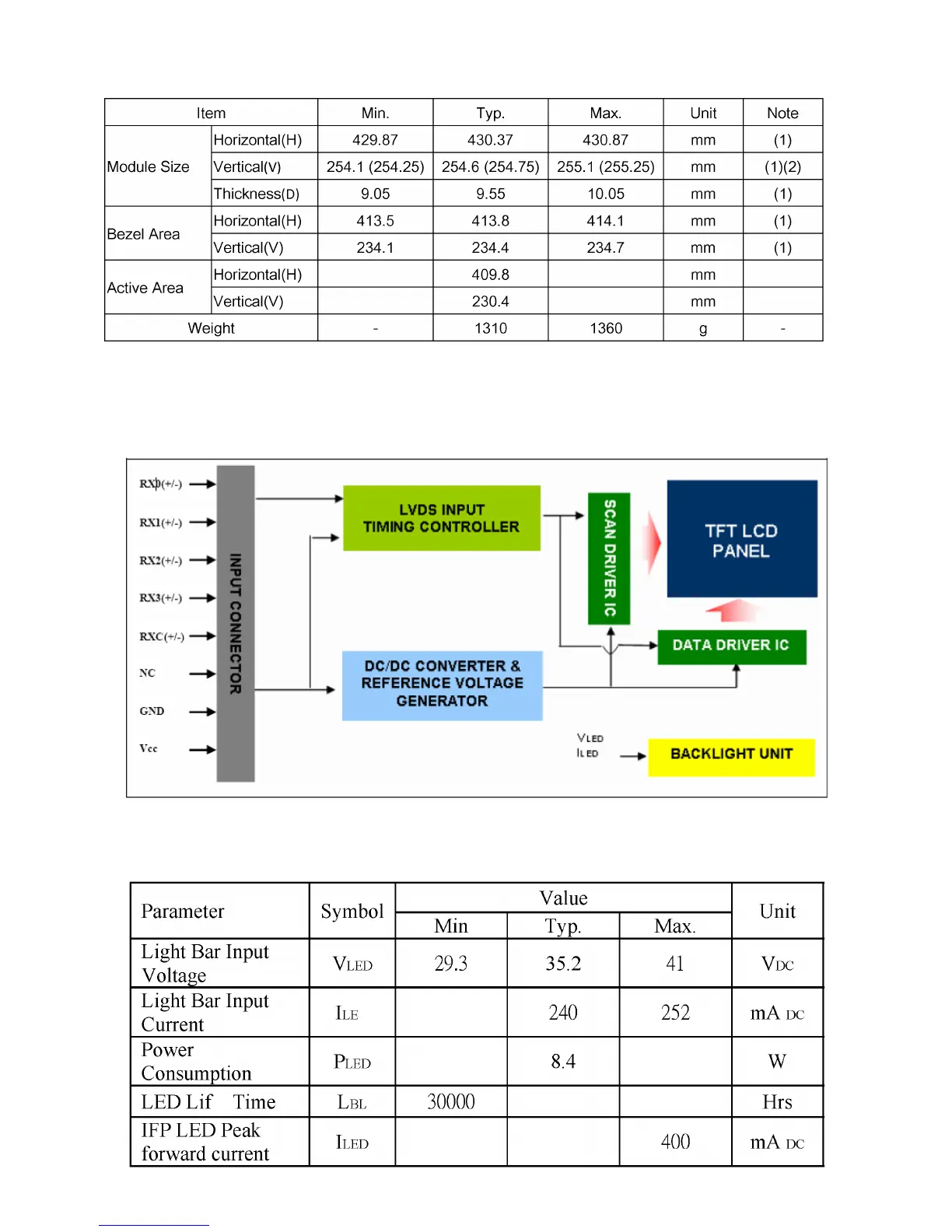

4.3.3.4 MECHANICAL SPECIFICATIONS
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Note (2) () is mean dimension with mylar.
4.3.3.5 FUNCTION BLOCK DIAGRAM
4.3.3.6 BACKLIGHT UNIT (LED matrix is 11S4P):
Parameter guideline for LED driving is under stable conditions at 25 (Room Temperature):℃
