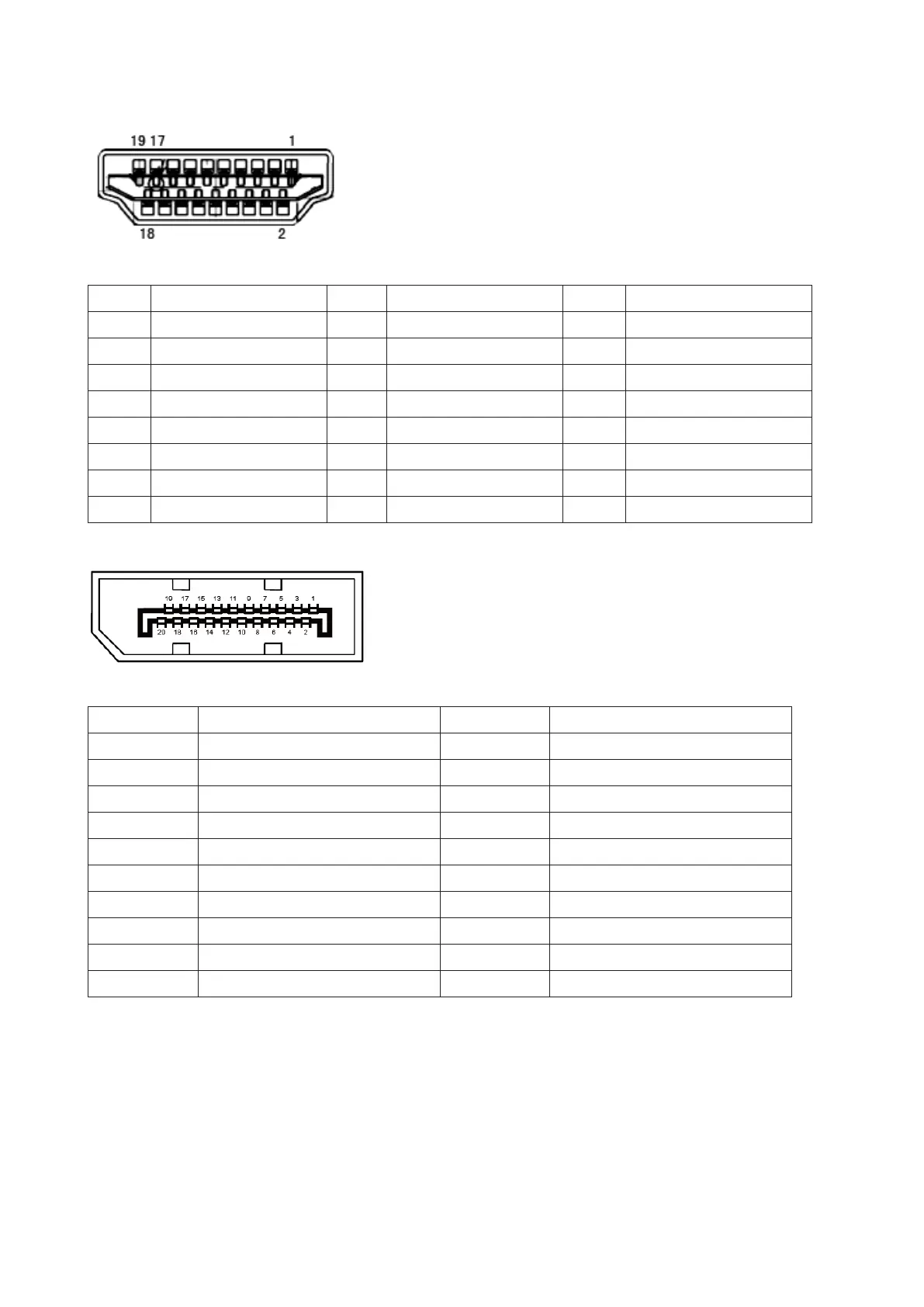

Pin Assignments
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. 18.
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. 15. SCL
8.
TMDS Data 0 Shield
16.
SDA
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15
6 ML_Lane 2 (p) 16 GND
7 ML_Lane 1 (n) 17
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR
