This motherboard comes with a retention module attached on the CPU socket when shipped, we strongly recommend you to install
AOpen special designed CPU Fan as shown below on the retention module for better heat dissipation. Please install the CPU Fan
correctly as the following pictures shown.

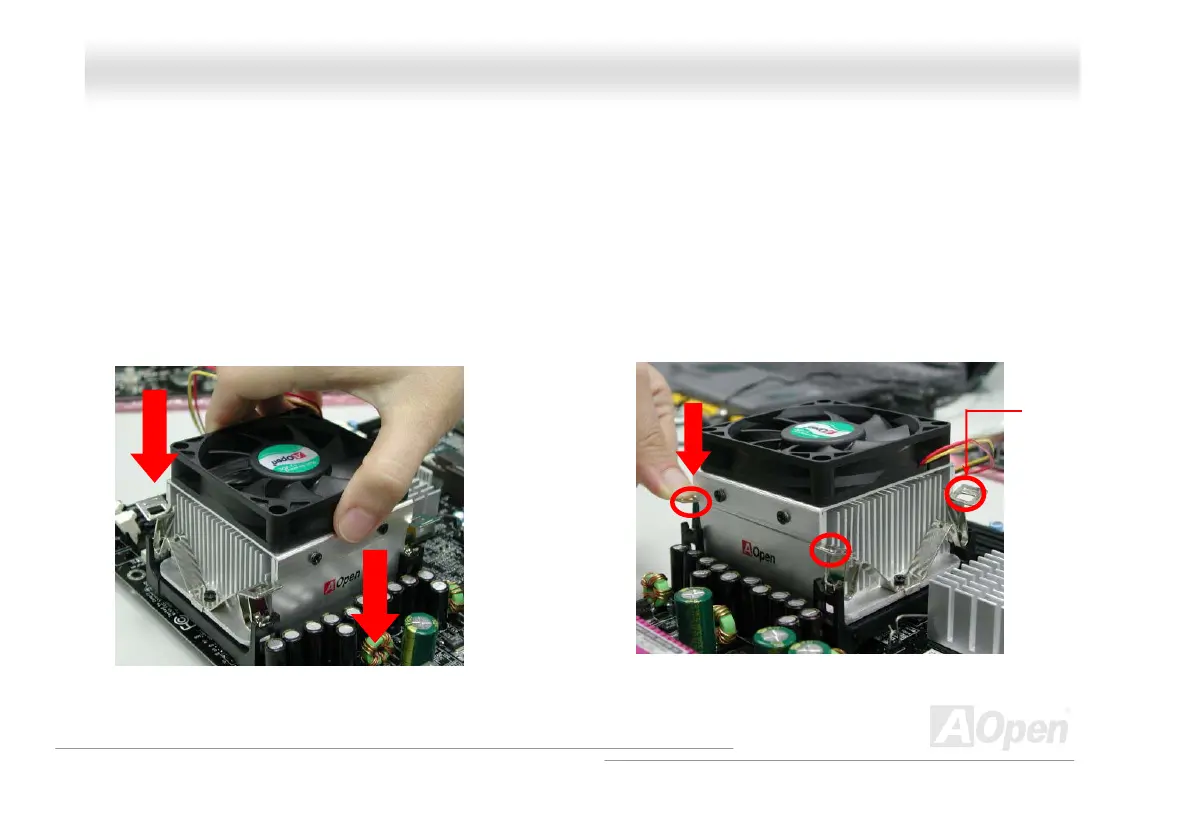

1. Gently put the CPU Fan down on the
retention module with clips aligning
correctly to the four corners.
2. Pressing down the four clips with force one by
one on the retention module.
Clip
