This motherboard comes with an ALC650 CODEC, which supports high quality of 5.1 Channel audio effects, bringing you a brand
new audio experience. On the strength of the innovative design of ALC650E, you're able to use standard line-jacks for surround
audio output without connecting any external module. To apply this function, you have to install the audio driver in the Bonus Pack

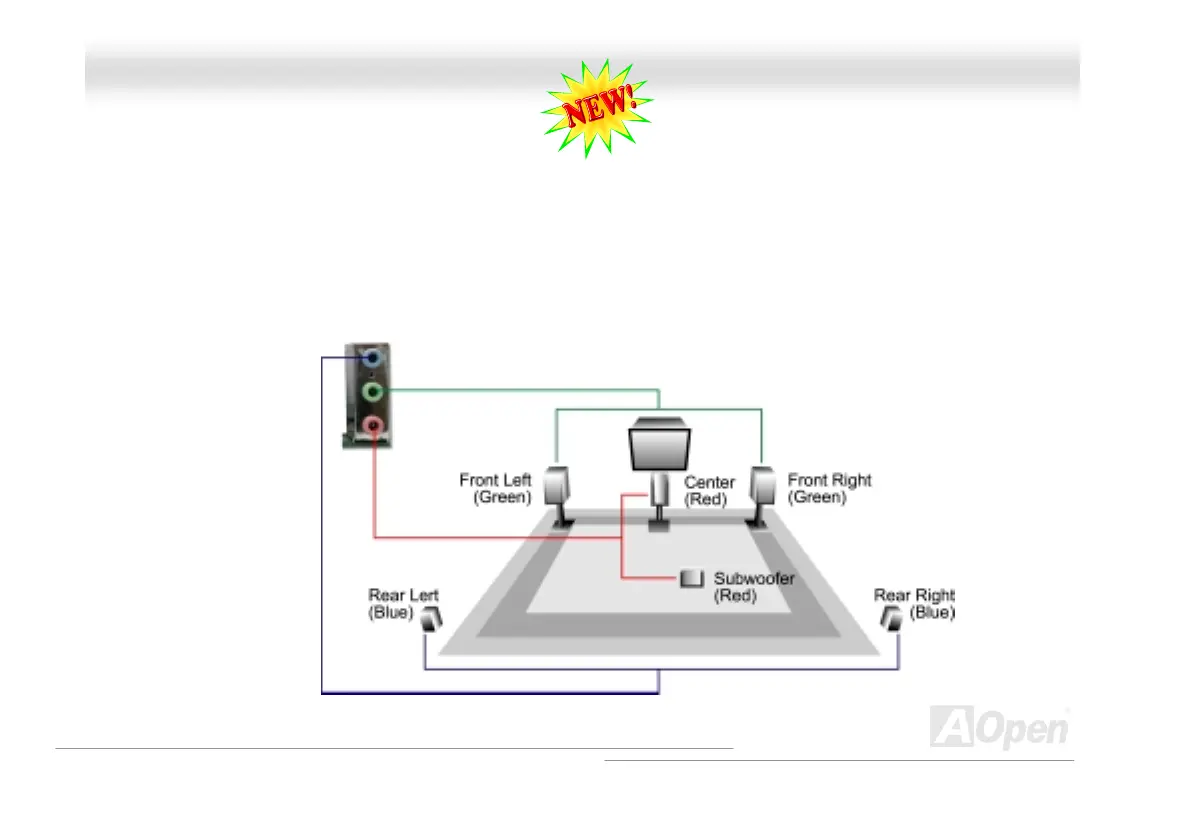

CD as well as an audio application supporting 5.1 Channel. Picture below represents the standard location of all speakers in
5.1Channel sound track. Please connect the plug of your front speakers to the green “Speaker out” port, rear speakers’ plug to the
blue “Line in” port and both of the center and subwoofer speakers to the red “MIC in” port.
