This motherboard implements a hardware monitoring system. As you turn on your system, this smart design will monitor your
system’s working voltage, fan status and CPU temperature. If any of those systems’ status goes wrong, there will be an alarm
through the chassis external speaker or buzzer of motherboard (if having this function and enabled) to warn the user.

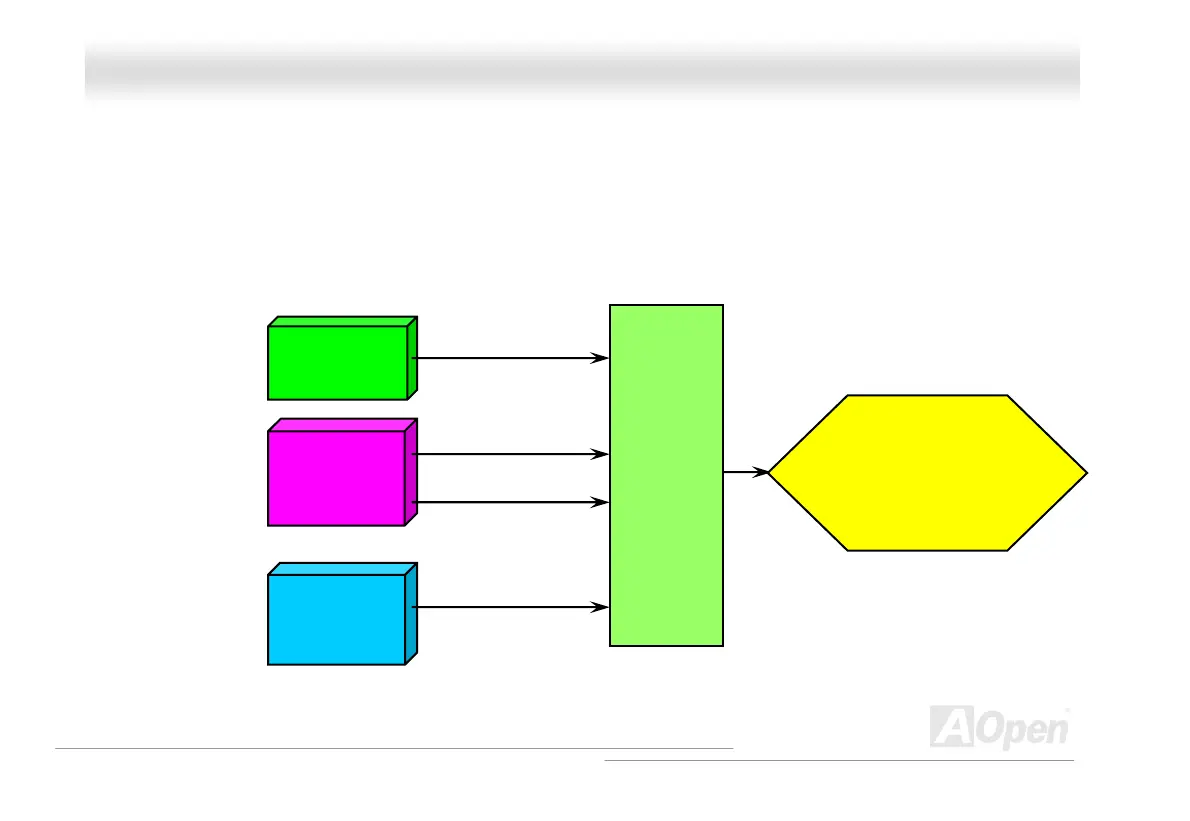

CPU Voltage
CPU
CPU Temperature
System Voltage
Power
Detection Circuit
AOpen H/W Monitoring
Utility
Fan
Fan Speed
