Please follow the procedure as shown below to finish memory installation.

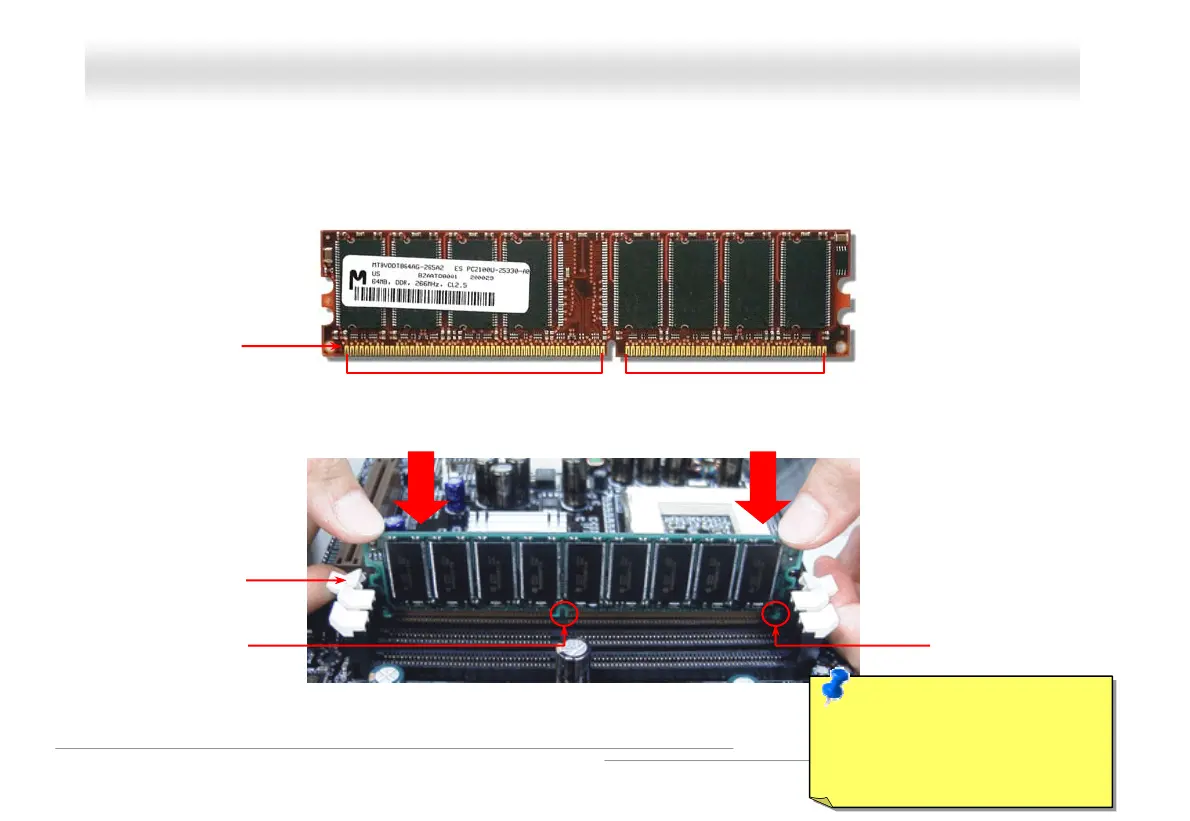

1. Make sure the DIMM module’s pin face down and match the socket’s size as depicted below.
Pin 1
52 pins 40 pins
2. Insert the module straight down to the DIMM slot with both hands and press down firmly until the DIMM module is securely in
place.
Tab
3. Repeat step 2 to finish additional DIMM modules installation.
Note: The tabs of the DIMM slot
will close-up to hold the DIMM in
place when the DIMM touches
the slot’s bottom.
Key
Pin 1
