This motherboard provides four USB ports to connect USB devices such as mouse, keyboard, modem, printer, etc. There is one
more front USB connector on the board for you to connect another two USB devices. You can use proper cables to connect USB
devices from PC99 back panel or connect the front USB connector to the front panel of chassis.
Compared to traditional USB 1.0/1.1 with the speed of 12Mbps, USB 2.0 has a fancy speed up to 480Mbps, which is 40 times
faster than the traditional one. Except for the speed increase, USB 2.0 supports old USB 1.0/1.1 software and peripherals, offering
impressive and even better compatibility to customers. On this motherboard, all six ports support USB 2.0 function.

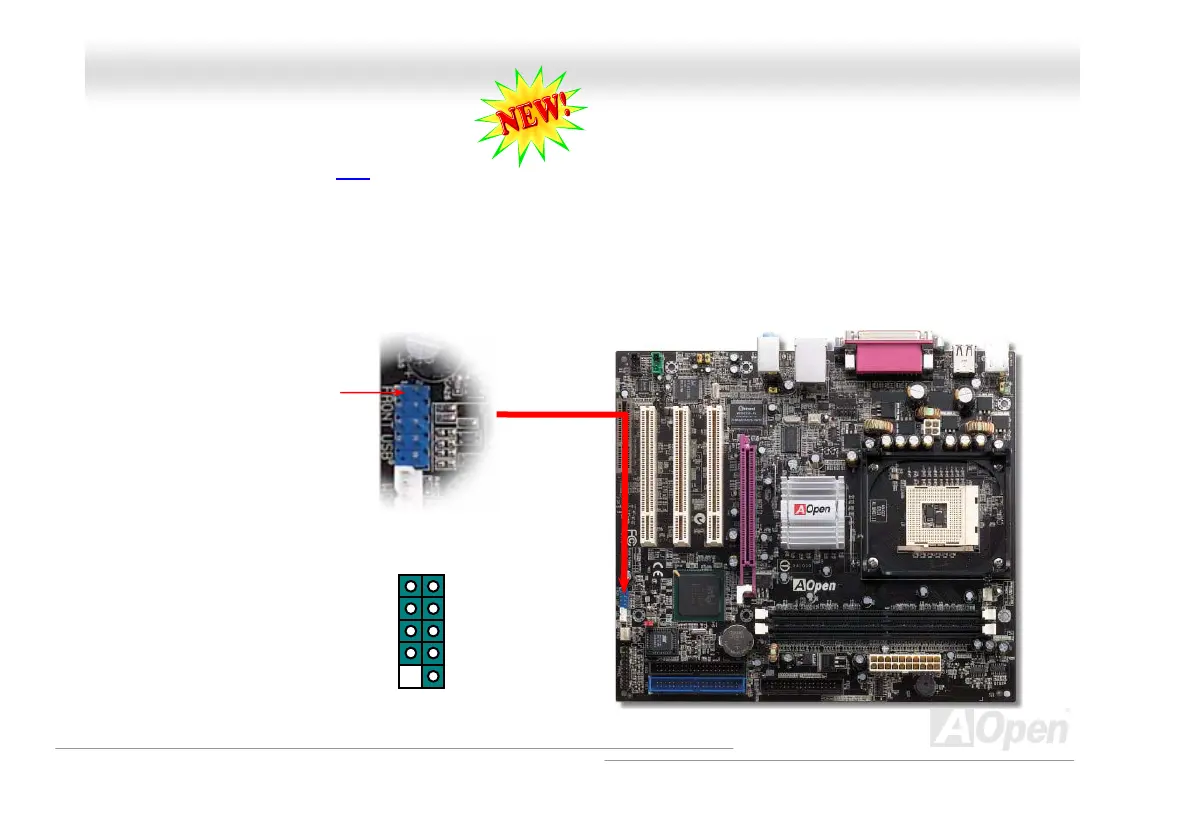

USB2.0 Connector
USBPWR0
USB_FP_P0-
USB_FP_P0+
GND
KEY
USBPWR0
USB_FP_P1-
USB_FP_P1+
GND
USB_FP_OC0
1 2
Pin 1
To Next Page
