- 9 -

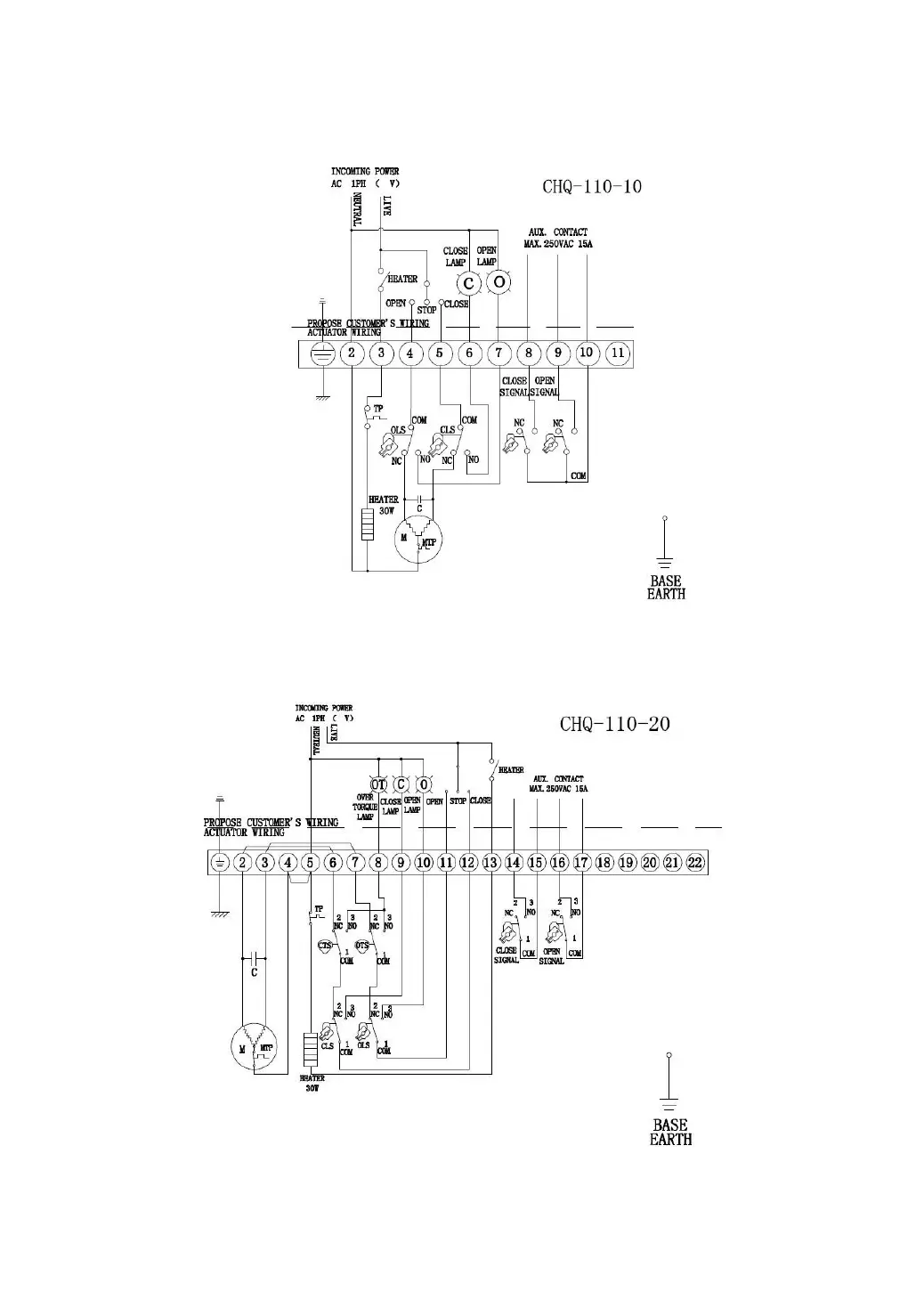

7. Wiring Diagram
7.1 AOX-Q-005～010 110/220VAC/50/60Hz,1Ph（on/off model）
Picture 3
7.2 AOX-Q-015
～
600 110/220VAC/50/60Hz,1Ph
（
on/off model
）
Picture 4
