10
• Always wear suitable working clothes, protective gloves and goggles. Battery acid is corrosive! Imme-
diately and thoroughly wash o any splashed acid and consult a doctor, if necessary. If battery acid gets
into the eyes, immediately rinse under running water for at least 10 minutes and consult a doctor.
• Do not cover the charger and keep the ventilation slots free, otherwise this may result in overheating and in
damages. Never set the charger up for operation on a surface that is insulating (e.g. polystyrene). There is a risk of
heat built up!
• If you wish to charge a vehicle battery in the installed state, rst park the vehicle safely, put on the parking
break and switch o the ignition. Cut the battery o from the on-board network of your vehicle. To do this, read the
manual of your vehicle or ask your specialist workshop.
• When pulling the mains cable out of the socket, only hold the plug.
• Never expose the charger to the vicinity of re, heat and extensive temperatures over +40°C.
• Store these instructions carefully and, if necessary, pass them on to other users.

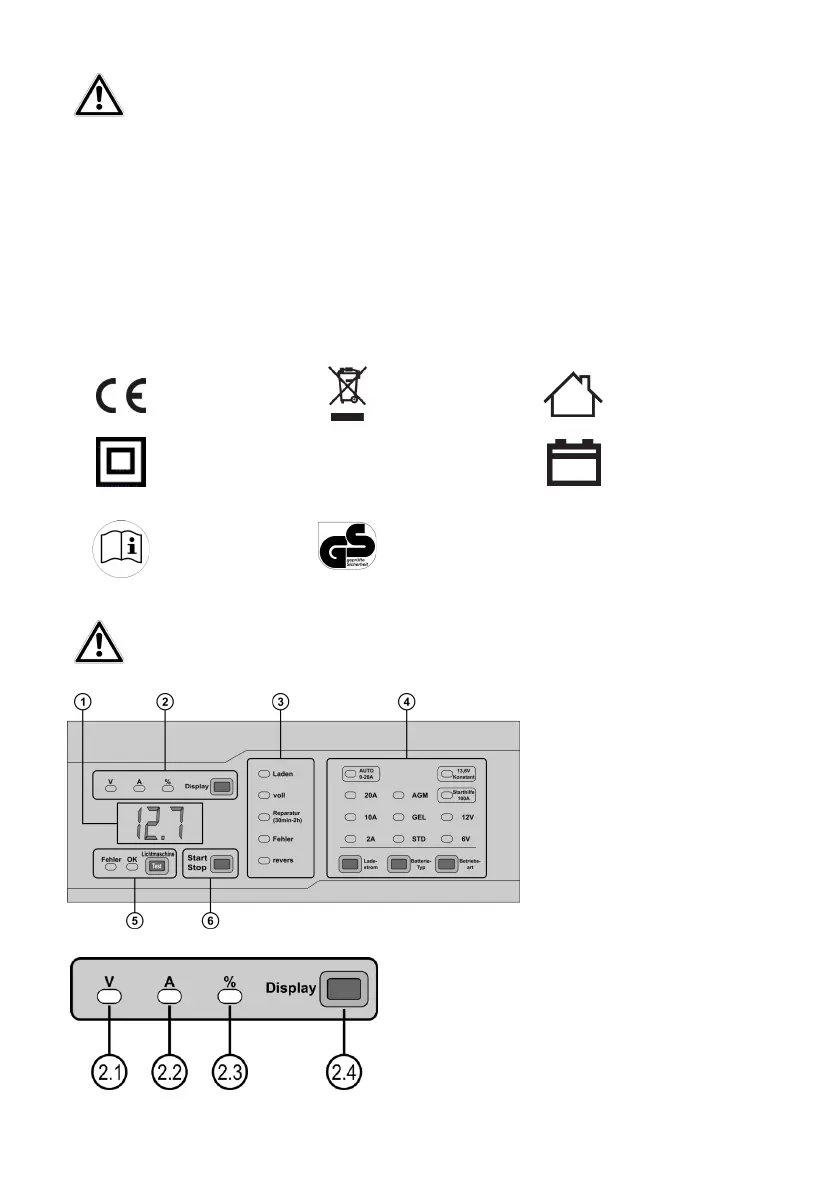

5. Explanation of symbols
6. Operating instructions
Before using the device make sure that you have read the operating instructions for the battery and the
vehicle and you have understood all of the safety precautions.
6.1 Overview
1 Display
2 Display settings
3 Operating status display
4 Function settings
5 Generator test
6 Start-Stop button
Figure 1: Operating panel
2.1 Display charge voltage in Volt
2.2 Display charge current in Ampere
2.3 Display charge progress in percentage
2.4 Selection switch
Figure 2: Display settings
Complies with EC
directives
products may not be
disposed of in the
symbol may only be
operated indoors (dry
Insulated housing
(protection class II).
Fuse,
here: Slow-burning,
1.6A
Recommended
battery capacity
Read the operating
instructions
requirements of § 21
of the German
Product Safety Law
(Produktsicherheitsg
