APC Smart-UPS VT Manual

2 Smart-UPS® VT 10-40 kVA 400V, 208V, 200V – Operation 990-2282A-001
Overview

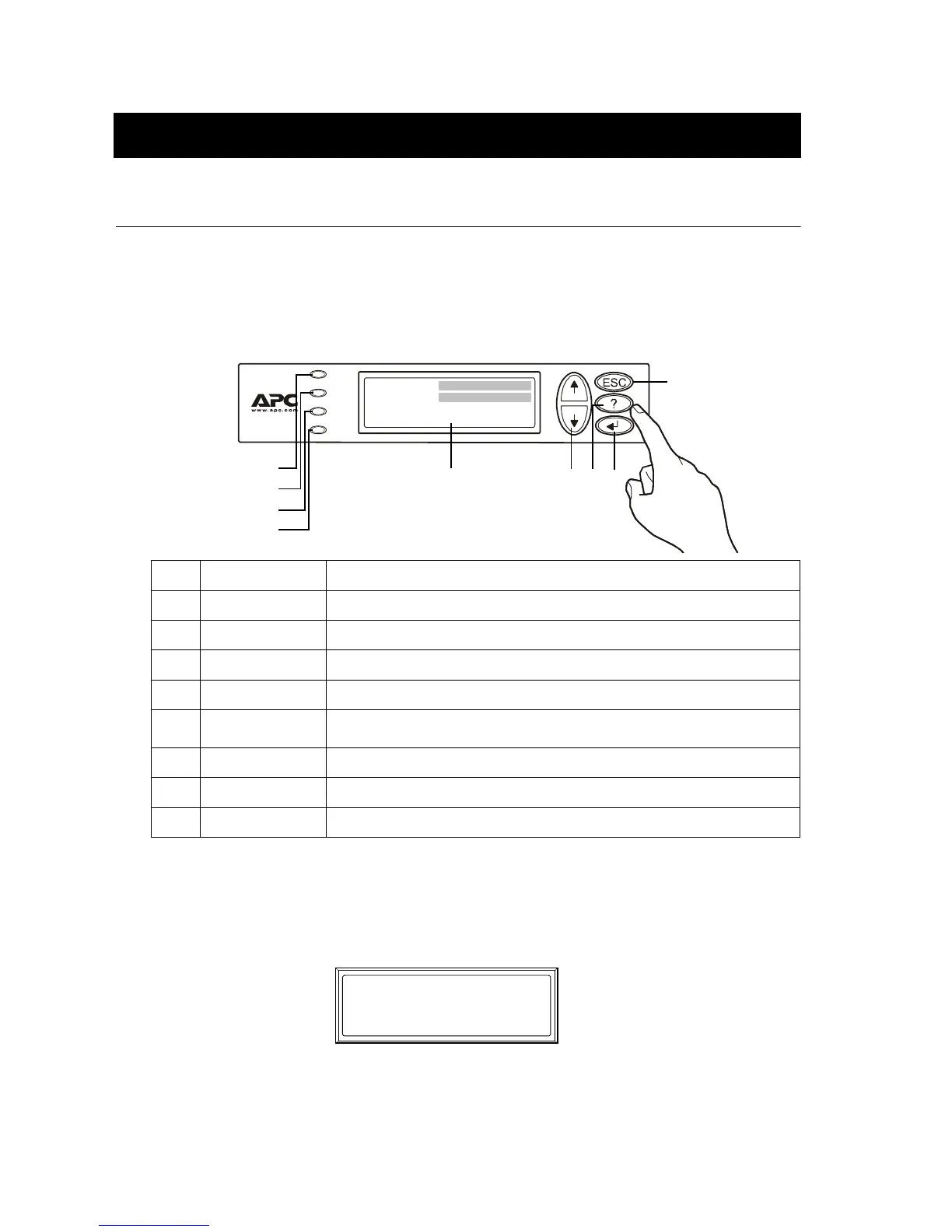

User Interface
Interface area
The four LEDs to the left of the display indicate the operational status of the UPS. The five
navigation keys to the right are used to select and open menu items, to access information, change
system parameters, and to get context-sensitive help.
Display interface
Overview Screen (LCD screen). The Overview Screen is the main entrance to the user functions
of the display interface.
The
ENTER key takes you from the Overview Screen to the Main Menu Screen.
LOAD ON When the green LED is lit, the UPS provides power to the load equipment.
ON BATT
When the yellow LED is lit, power flows from the batteries to the load.
BYPASS
When the yellow LED is lit, power to the load is supplied through bypass.
FAULT
When the red LED is lit, a fault condition exists.
LCD SCREEN
Displays alarms, status data, instructional help, and configuration items.
UP AND DOWN
NAVIGATION KEYS
Used to scroll through and select menu items.
HELP KEY
Opens context-sensitive help.
ENTER KEY
Opens menu items and confirms changes to system parameters.
ESC KEY
Returns to previous screen displayed.



Chrg 100%
Load 000%
230Vin 000Vout 50Hz
Run-time: 00hr 30m
LOAD ON
ON BATT
BYPASS
FAULT


  









Overview Screen
Chrg 100%
Load 000%
230Vin 000Vout 50Hz
Runtime: 0hr 0m

APC Smart-UPS VT Specifications

General

Noise level	55 dB
Output power	24000 W
Input frequency	40/70 Hz
Maximum current	41 A
Output power capacity	30 kVA
Emergency Power Off (EPO)	Yes
Battery type	VRLA
Dimensions (WxDxH)	559 x 813 x 1499 mm
Nominal input voltage	400 V
Certification	C-tick, CE, EN 50091-2, EN/IEC 62040-3, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, ISO 9001, VFI-SS-112
Product color	Black
Battery recharge time	5 h
Operating altitude	0 - 999.9 m
Non-operating altitude	0 - 15000 m
Storage temperature (T-T)	-15 - 45 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	85078000

Weight and Dimensions

Weight	629090 g
Package weight	660000 g
