13
How to Connect: - See Fig.10A. Push the tubing into the Quick Connect fitting, then gently pull back
on the tubing to make sure the connection was secure.
- No inserts, sleeve, or nuts are needed to secure the connection.
- No Teflon tape!
To Disconnect: - See Fig.10B. Push in and hold down on the collet ring square against the fitting.
With the collet held in this position the tube can be removed.
Please Note: The QC fittings come with an End Plug that needs to be removed before the tubing
can be connected.

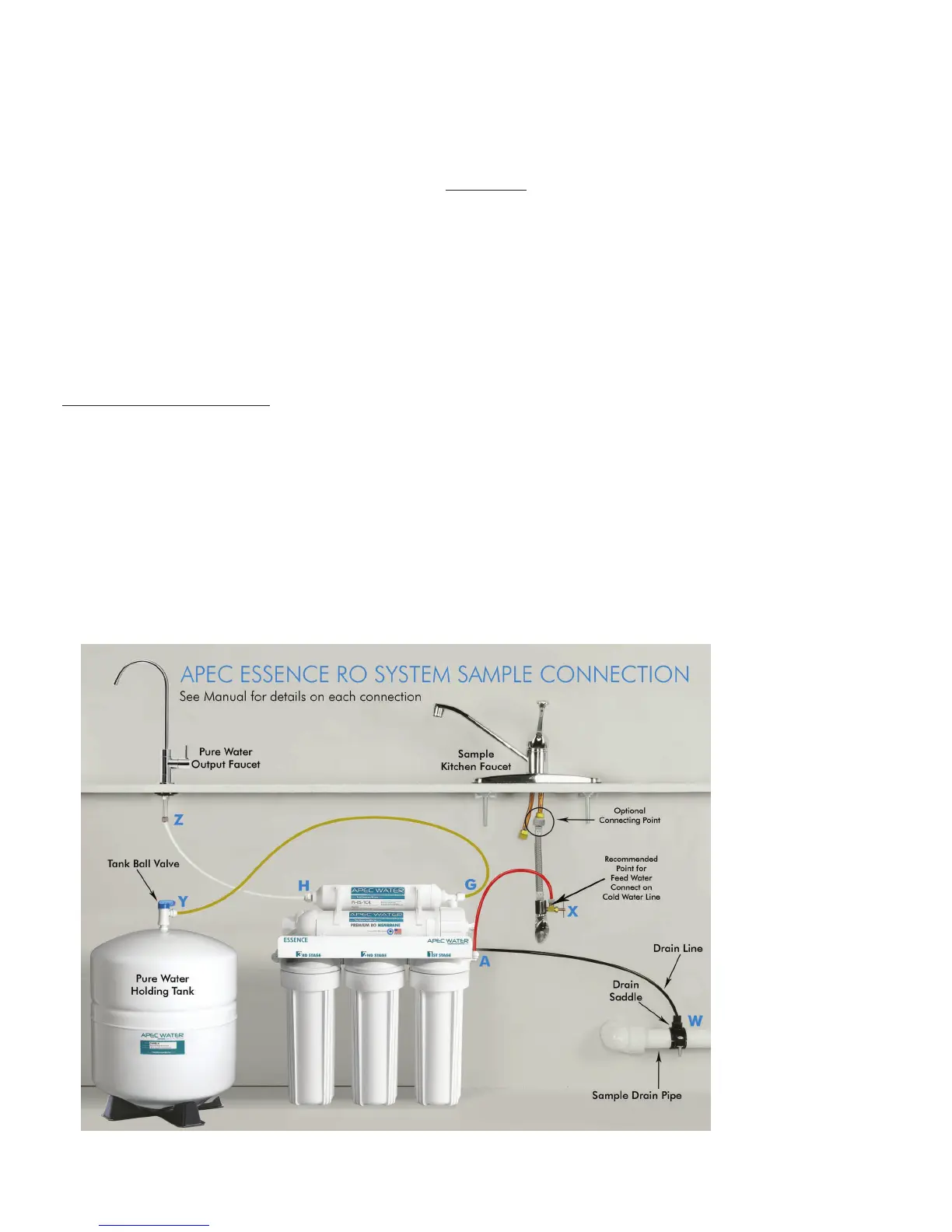

Summary of Tubing Connections:
There are 4 connections: See Fig 11. & Fig. 11A.
Point A to X: Connect RO to COLD water supply — Red tubing.
Point G to Y: Connect product water from 5
th
-stage filter to tank — Yellow tubing. This tubing is a
2-way line, Product water enters and leaves the tank via this line.
Point H to Z: Connect product water from 5
th
-stage output to RO faucet — Clear tubing.
Drain line to W: Connect waste water from 4
th
-stage membrane to drain outlet — Black tubing.
Fig. 11
