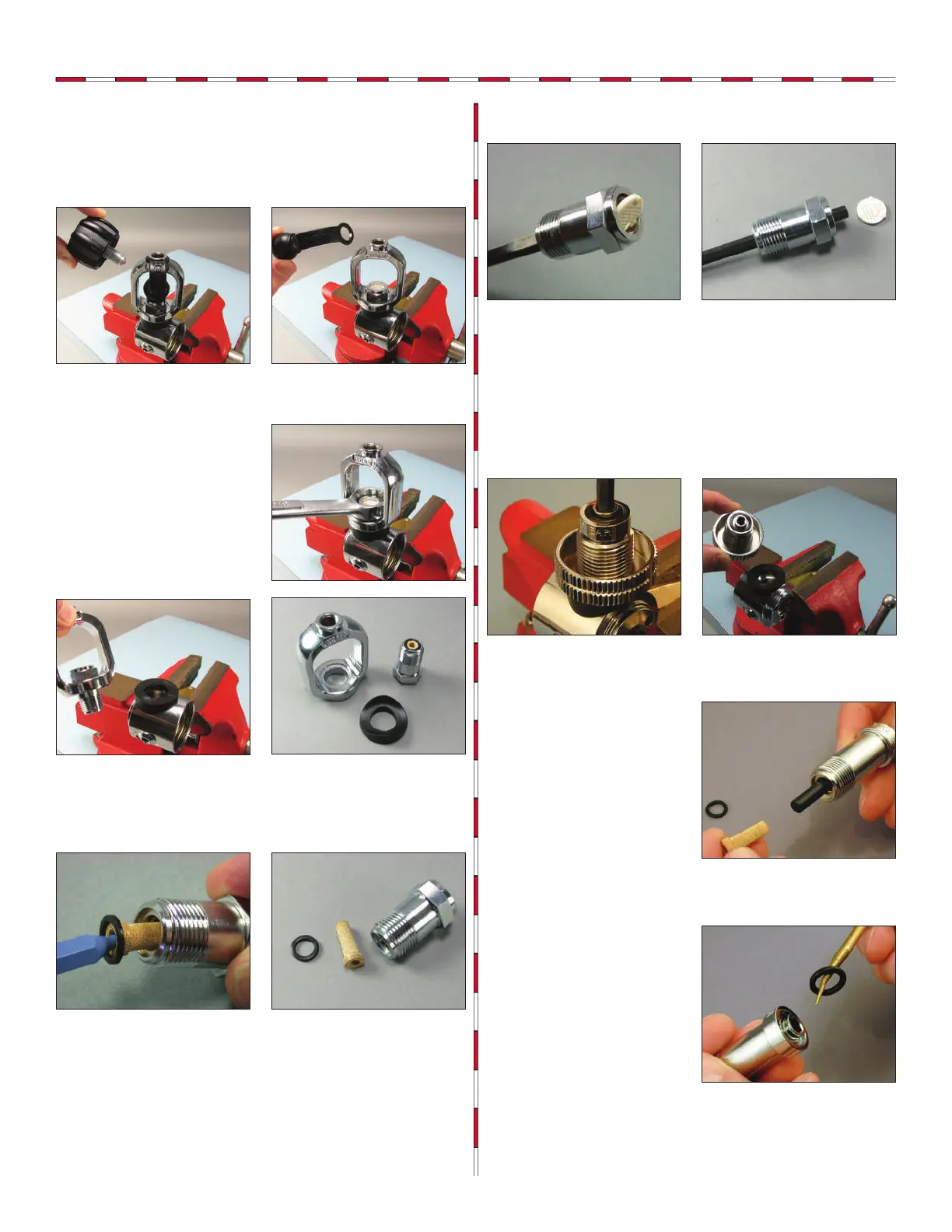

Apeks DST - Yoke Disassembly; DIN Disassembly

DST First Stage Technical Maintenance Manual
7
1
Rotate the body so that the yoke screw (30) is facing upward. Turn
the yoke screw counter-clockwise and remove it from the yoke
clamp (27). Remove the protective cap (28) from the yoke clamp.
Yoke Disassembly
2
Using a ¾ inch closed end
wrench, turn the yoke
clamp connector (32) counter-
clockwise to remove it. Lift off the
yoke clamp (27) and distance
piece (6).
3
Remove the conical lter (36) and o-ring (10) from the yoke
clamp connector (32).
1
Remove the dust cap (33). Rotate the body so that the DIN
handwheel (35) is facing upward. Using a 6mm hex key, turn the
handwheel connector (34) counter-clockwise to loosen. Lift off the
handwheel connector, handwheel and distance piece (6).
DIN Disassembly
2
Using the end of the seat tool
(pn 109437), push the conical
lter (36) and o-ring (10) out of the
handwheel connector (34).
3
Remove the face o-ring
(29) from the handwheel
connector (34).
4
Use a 6mm hex key to carefully push the lter guard (31) out of
the yoke clamp connector (32).
