3.2.2. Uncrating the Diaphragm Compressor
3.2.2.1. Remove the sides and top of the shipping crate. See Figure 5.
3.2.2.2. Remove lag screw/bolts that keep the pump attached to the skid.
3.2.2.3. Carefully use a forklift to remove the pump from the skid and attach the four rubber
vibration dampening feet to the four corners of the pump. See Figure 6.

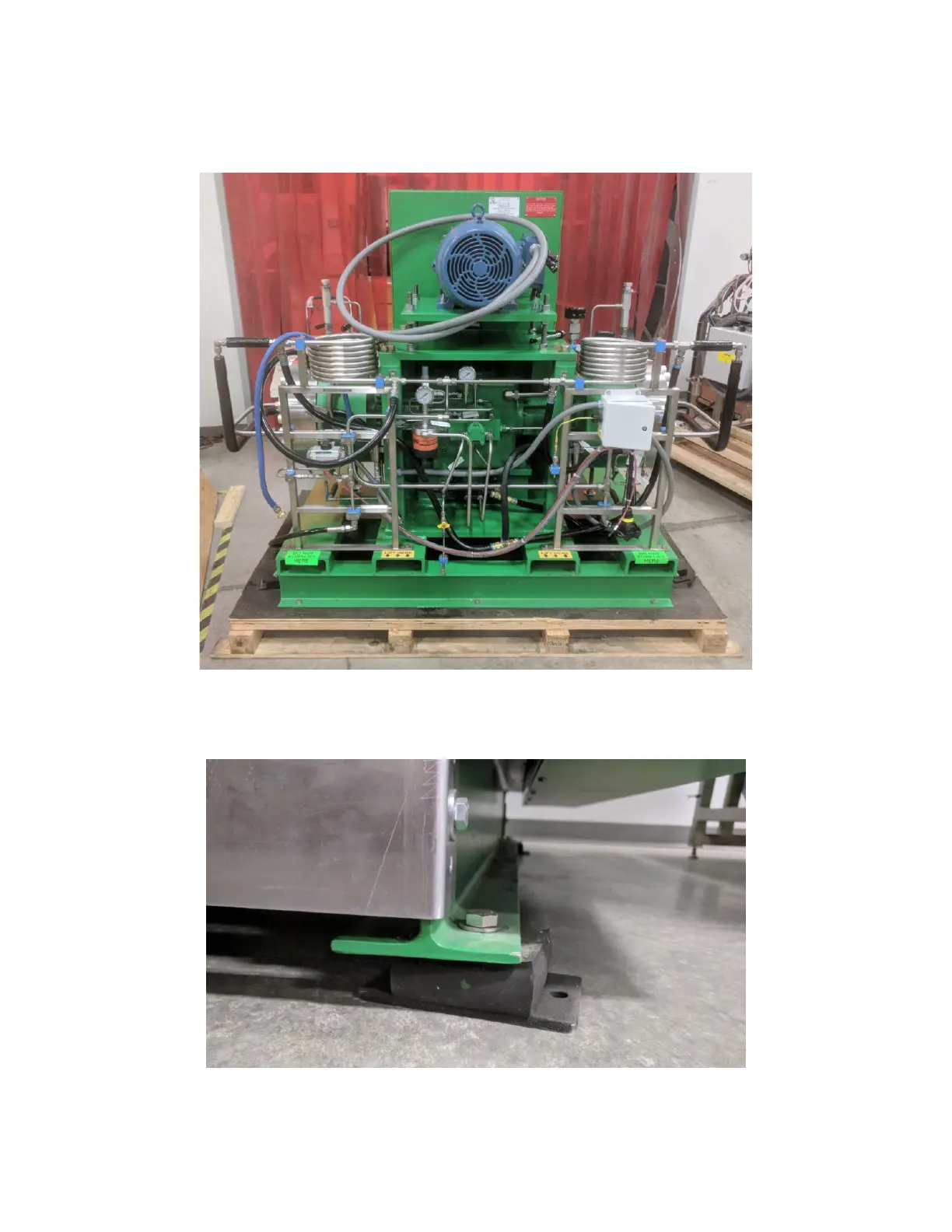

Figure 5: Diaphragm pump on skid
Figure 6: Vibration Dampening Feet
