Apeks Supercritical: The Duplex™ Installation Manual
4
Revision Date 04/11/2019
2. Before the System Arrives
2.1. System Overview
Duplex Diaphragm Compressor
Separator Chiller
Extractor Chiller
Extractor Vessel Stand
Separator Vessel Stand

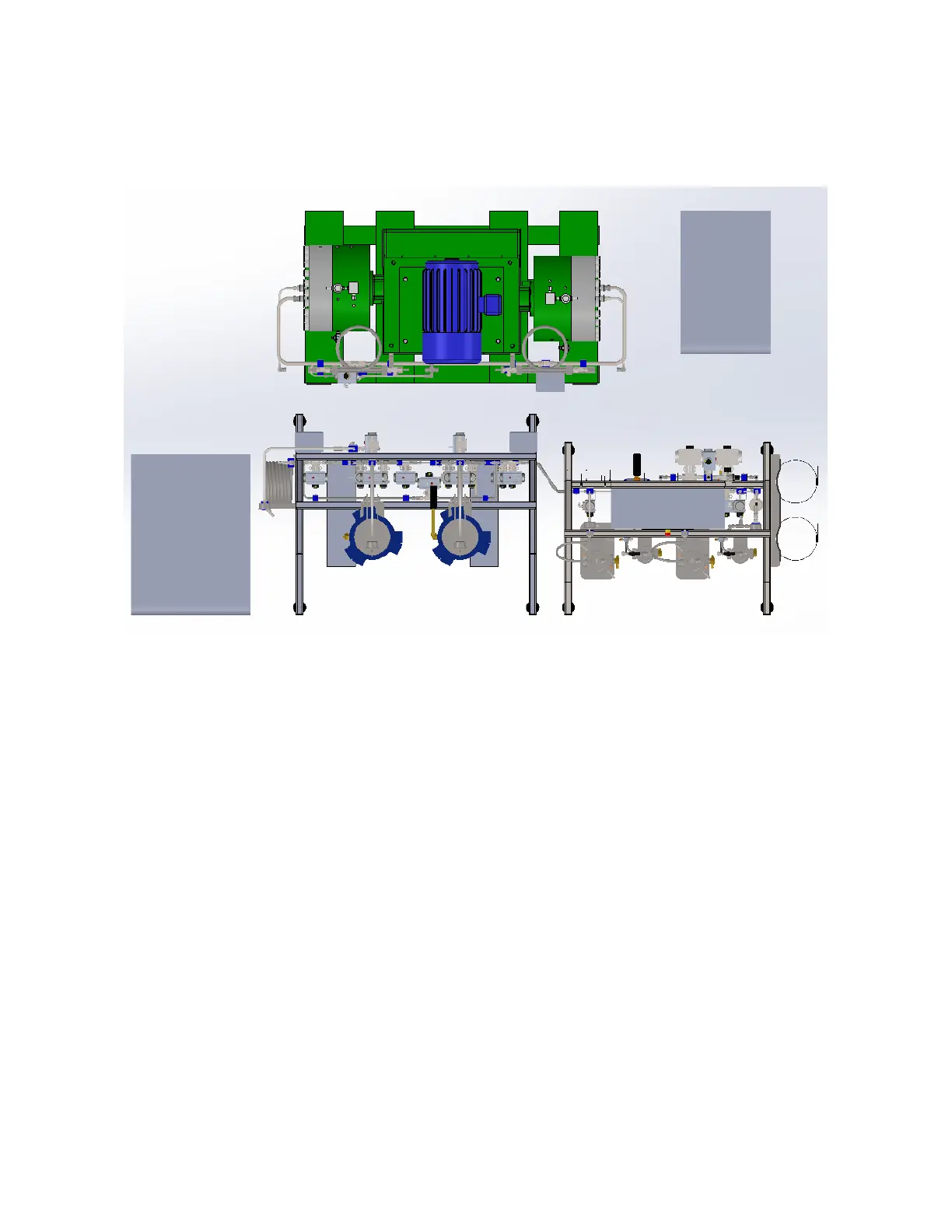

Figure 1: Overhead view of standard layout (Duplex 2000-20Lx20LDU)
