Apeks Supercritical: The Duplex™ Installation Manual
20
Revision Date 04/11/2019
3.3.6. Electrical Connections
3.3.6.1. Harting Connector – This connector carries all the signals from the pressure transducers,
flow switches, etc. back the main control enclosure (excluding the thermocouples). These
are quick connecting electrical connections that plug in and are secured with snaps on
each side as seen in Figure 15.
3.3.6.2. Thermocouple Connector – This connector carries the signal from the thermocouples
back the main control enclosure. This connector is a plug style connection as seen in
Figure 16.
3.3.6.3. Separator Vessel Stand to Extractor Vessel Stand
3.3.6.3.1. Junction Box 3 (Extractor B Side)
3.3.6.3.1.1. Harting Connector #1214CBL1.
3.3.6.3.1.2. Thermocouple Connector #1709CBL1.
3.3.6.3.1.3. Thermocouple Connector #1809CBL1.
3.3.6.3.2. Junction Box 2 (Extractor A Side)
3.3.6.3.2.1. Harting Connector #1511CBL2.
3.3.6.3.2.2. Thermocouple Connector #1805CBL1.
3.3.6.4. Separator Vessel Stand to Diaphragm Compressor (Junction Box 1)
3.3.6.4.1. Harting Connector #1209CBL1.
3.3.6.4.2. Thermocouple Connector #1705CBL1.

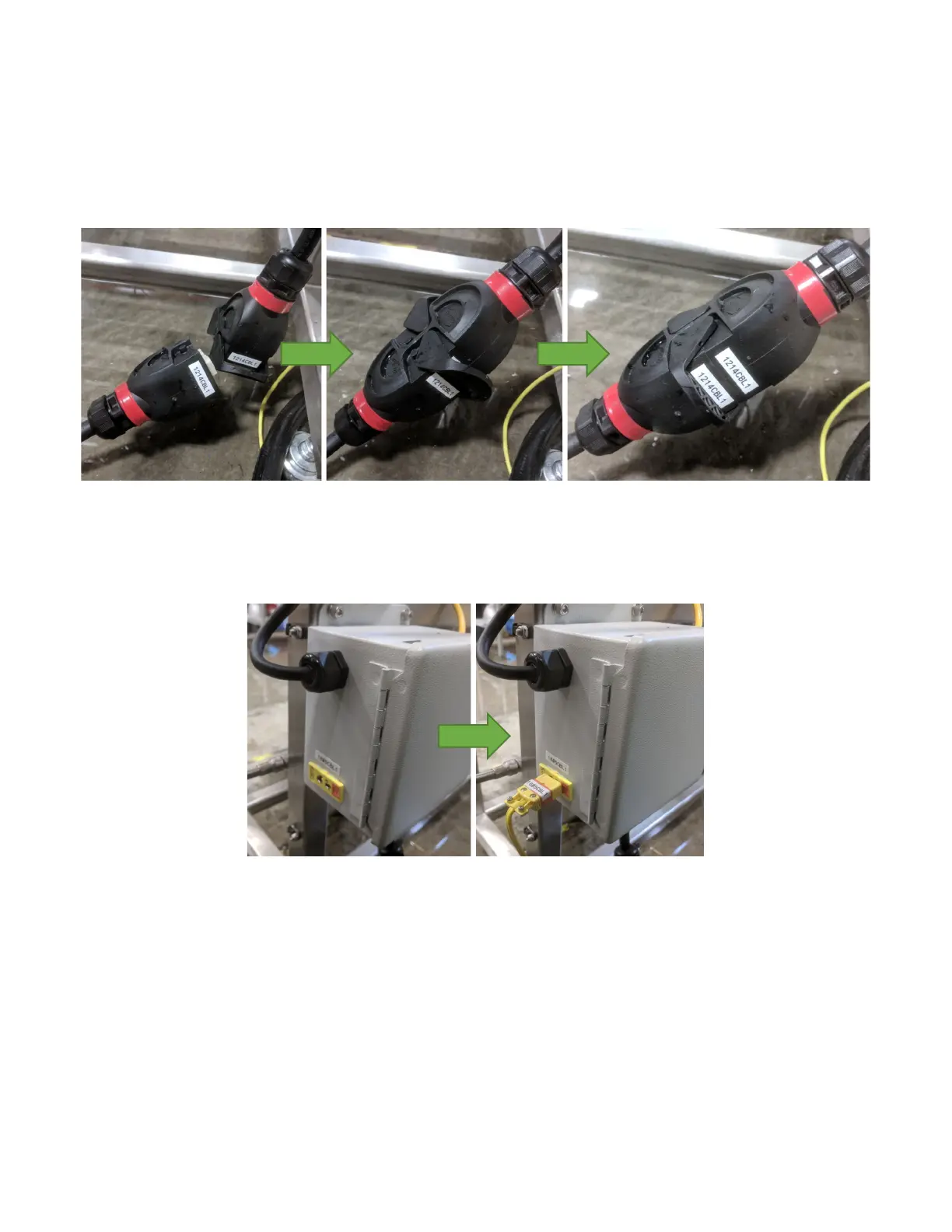

Figure 15: Harting Connector
Figure 16: Thermocouple Connector
