Apeks DUPLEX 2000PSI - Diaphragm Compressor

Apeks Supercritical: The Duplex™ Installation Manual
5
Revision Date 04/11/2019
2.1.1. Diaphragm Compressor
Main Control
Enclosure
HMI
CO
2
Outlet
CO
2
Inlet
Junction Box
Regenerative
Heat
Exchangers
Fork Pockets

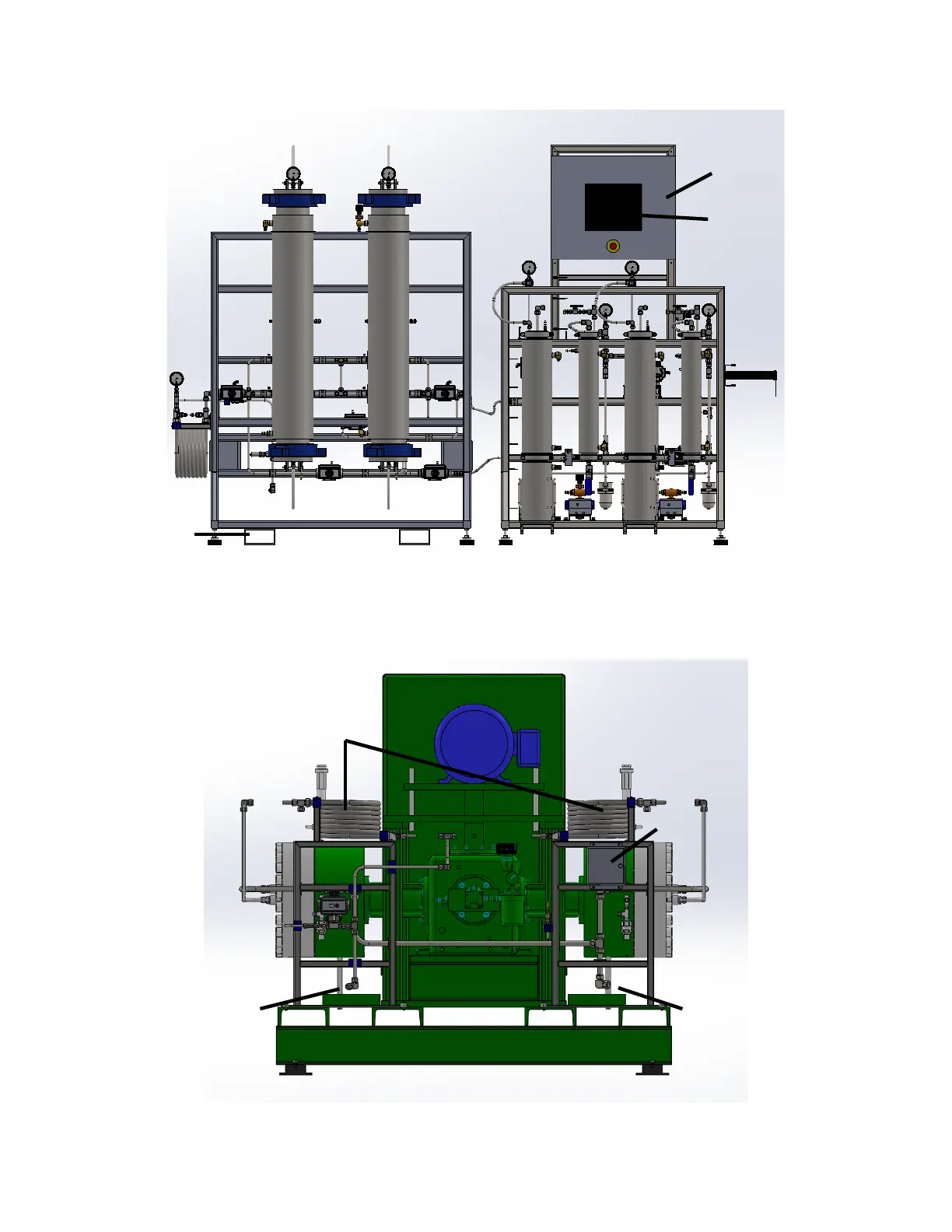

Figure 2: Front view of standard layout (Duplex 2000-20Lx20LDU)
Figure 3: Diaphragm Compressor
