3.3.4. CO
2
Vent Connection – Apeks extraction systems come with rigid vent tubing all connected to
one outlet located near Valve 0 underneath the Motor Starter Enclosure. The customer is
responsible for running this vent line to desire location in build and should use material rated to
the pressure of the system (
3
/
8
" x.035 or ½ " x.049 stainless steel tubing recommended).
Connection is a
3
/
8
" Swagelok compression fitting.
3.3.5. Air Connections – There are over twenty-five air operated ball valves that are used to control
the CO
2
flow path throughout the system. These valves are controlled by an air manifold on the
back of the control panel mount.
3.3.5.1. Air Manifold – The air manifold receives electrical signals from the controller and uses
compressed air to open valves. See Figure 12.
1
2

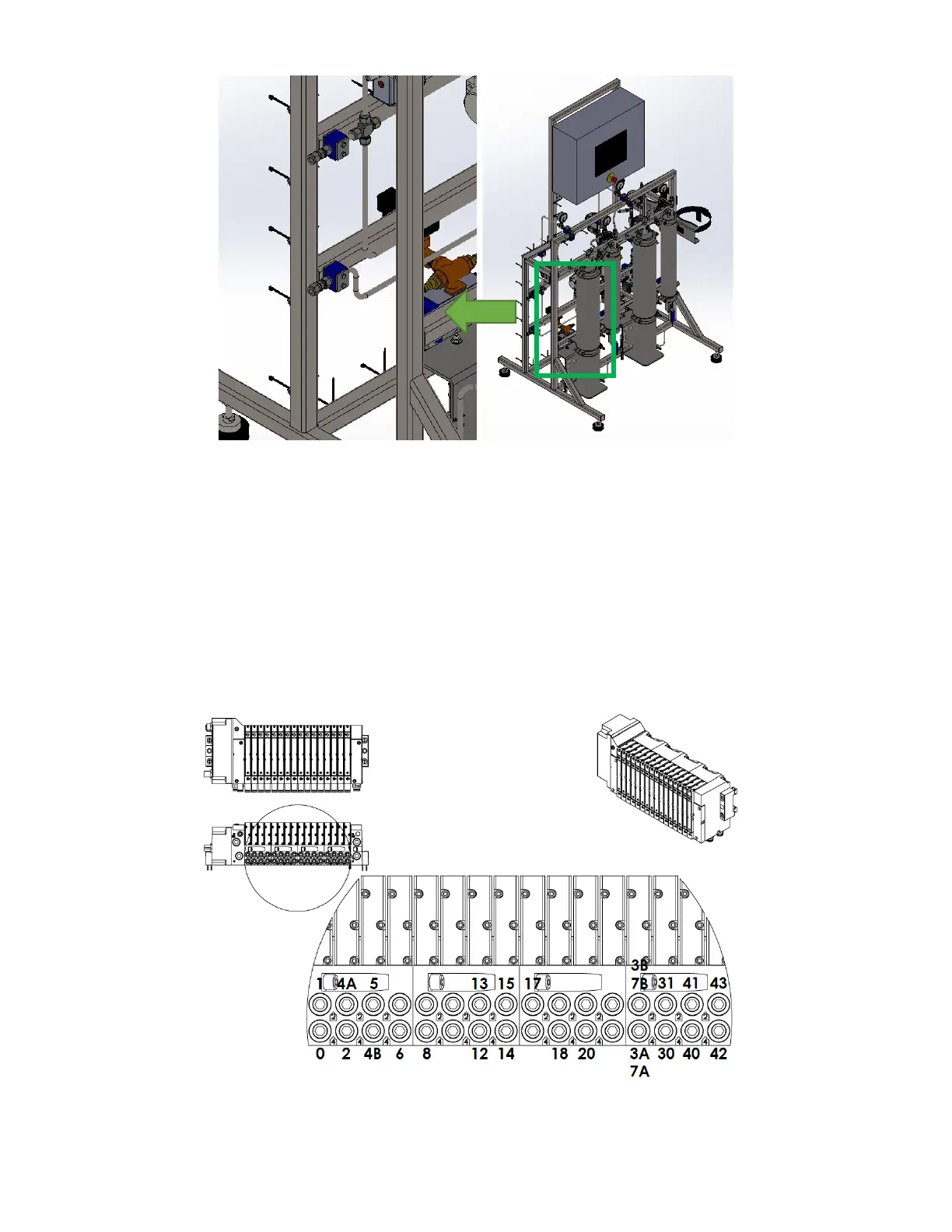

Figure 11: Vent Connection
Figure 12: Manifold Air ouputs
