3.3.3.2. Diaphragm Compressor to Extractor Vessel Stand – This connection is a 36" long
black nylon flexible line with ½" compression fittings.
3.3.3.3. Extractor Vessel Stand to Separator Vessel Stand – These connections are 18" long
stainless steel braided flexible lines with
3
/
8
" compression fittings. Connect 1 and 2 on the
extractor stand to 1 and 2 on the separator stand respectively.

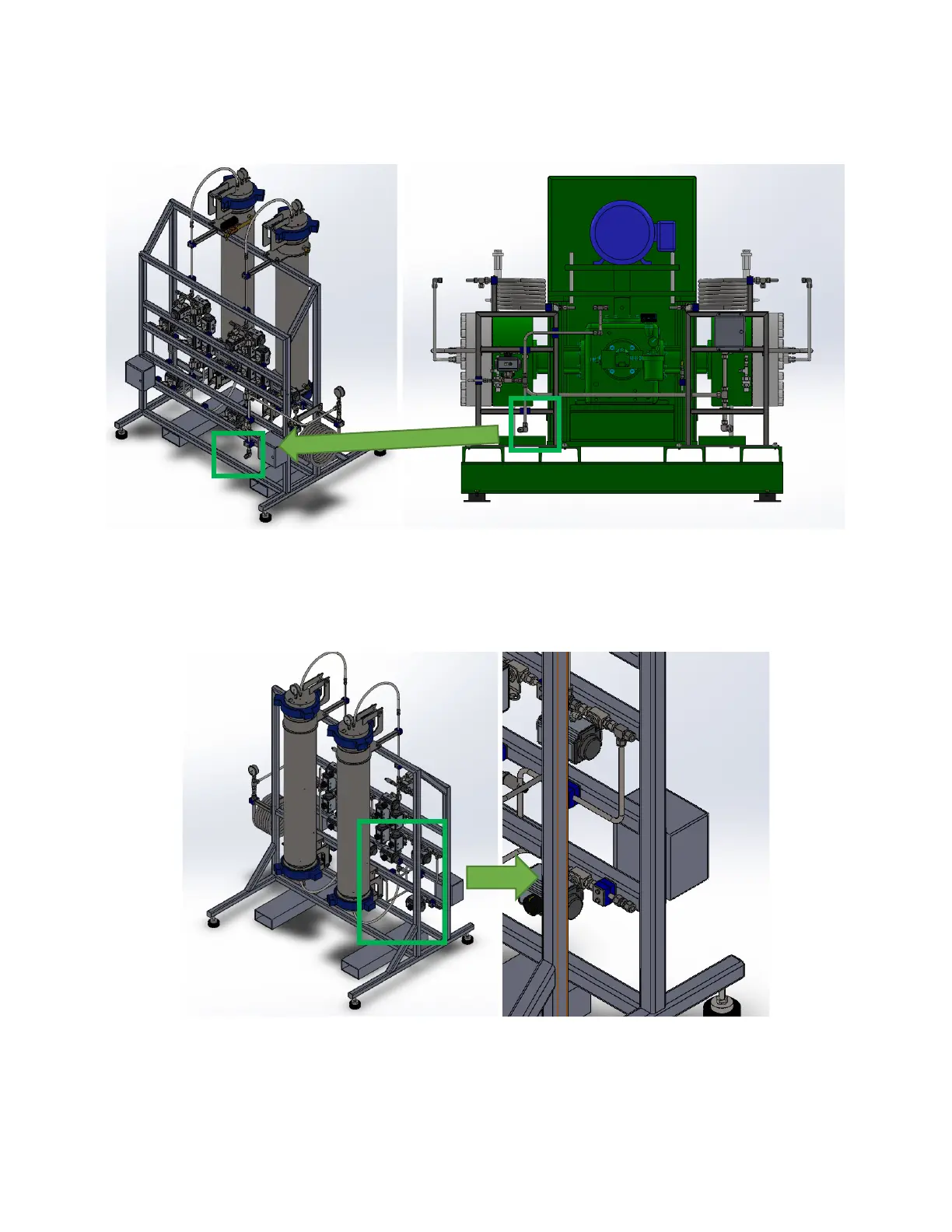

Figure 9: Diaphragm Compressor to Extraction Vessel
Figure 10: Extraction Vessel Stand to Separator Vessel
