Apeks Supercritical: The Duplex™ Installation Manual
19
Revision Date 04/11/2019
3.3.5.2. Separator Vessel Stand to Extractor Vessel Stand – There are thirteen ¼" red airlines
that run between the separator and extractor stand. These lines are connected with a
push-to-connect coupling and labeled on both sides. Fully insert the tubing into the
coupling to connect. See Figure 13.
3.3.5.3. Separator Vessel Stand to Diaphragm Compressor – There is one ¼" red airline that
runs between the separator stand and the diaphragm compressor. This line is connected
with a push-to-connect coupling and labeled on both sides. Fully insert the tubing into the
coupling to connect. See Figure 14.

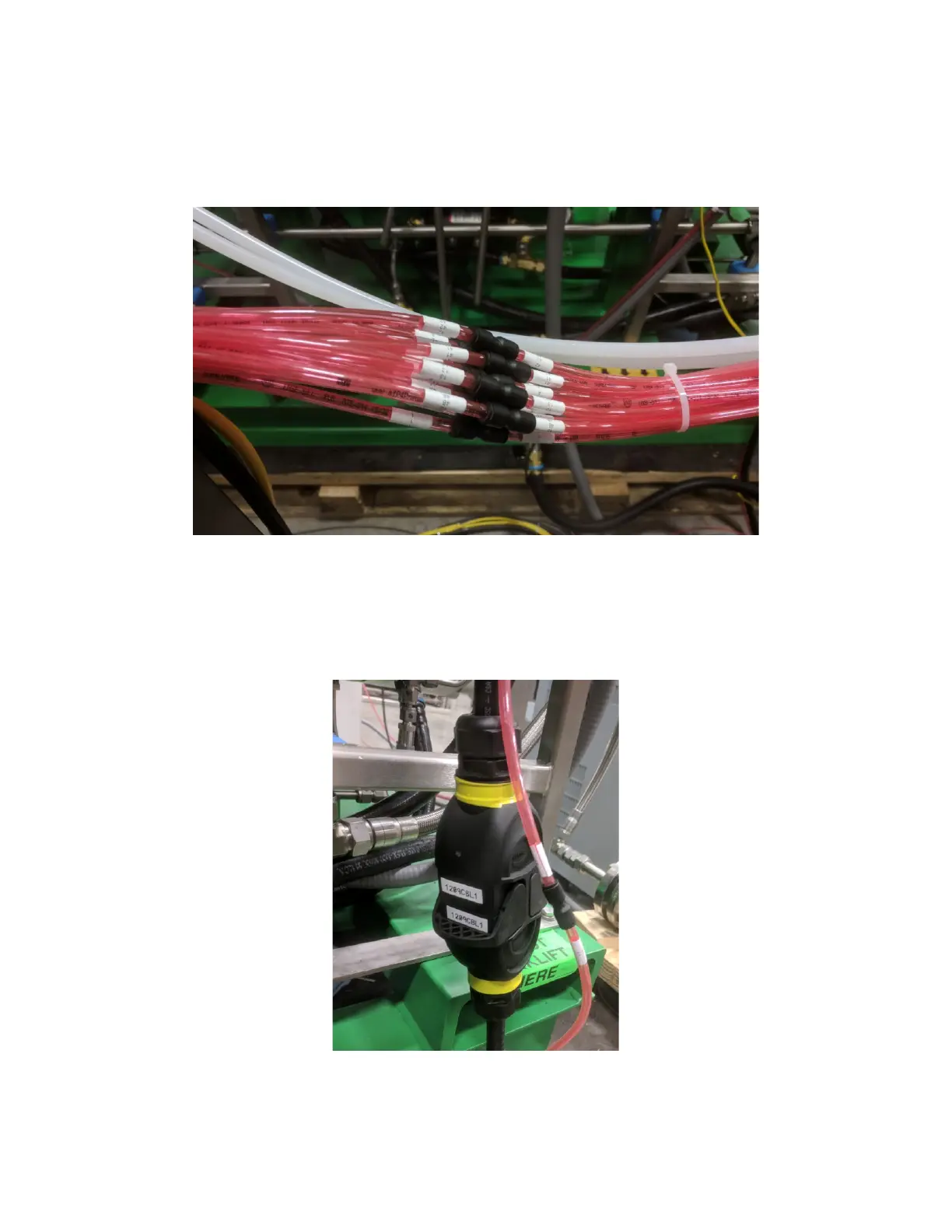

Figure 13: Airline connections
Figure 14: Airline connection to Compressor
