Apeks FSR Series User Manual

12
PART # DESCRIPTION APPLICATION
111610 Medium Pressure Testing
944022 Removal/Installation of O-rings
109437 Seat Removal/Replacement
AT30 Removal/Installation of Diaphragm Clamp & End Cap
AT47
Removal/Installation of Diaphragm Clamp (Blk Pearl, Tung-
sten, XTX models)
100395 Mounting First Stage into Vise
N/A Disassembly/Assembly
N/A Disassembly/Assembly
N/A
Apply torque to parts listed in Table 3:
Torque Specications, p. 13
N/A
Apply torque to parts listed in Table 3:
Torque Specications, p. 13
N/A
Apply torque to parts listed in Table 3:
Torque Specications, p. 13
N/A
Apply torque to parts listed in Table 3:
Torque Specications, p. 13
Apply torque to parts listed in Table 3:
Torque Specications, p. 13
N/A Magnier with Illumination Sealing surface inspection
N/A Ultrasonic Cleaner Brass and stainless steel parts cleaning
AP0241/AA
Universal First Stage Repair Kit

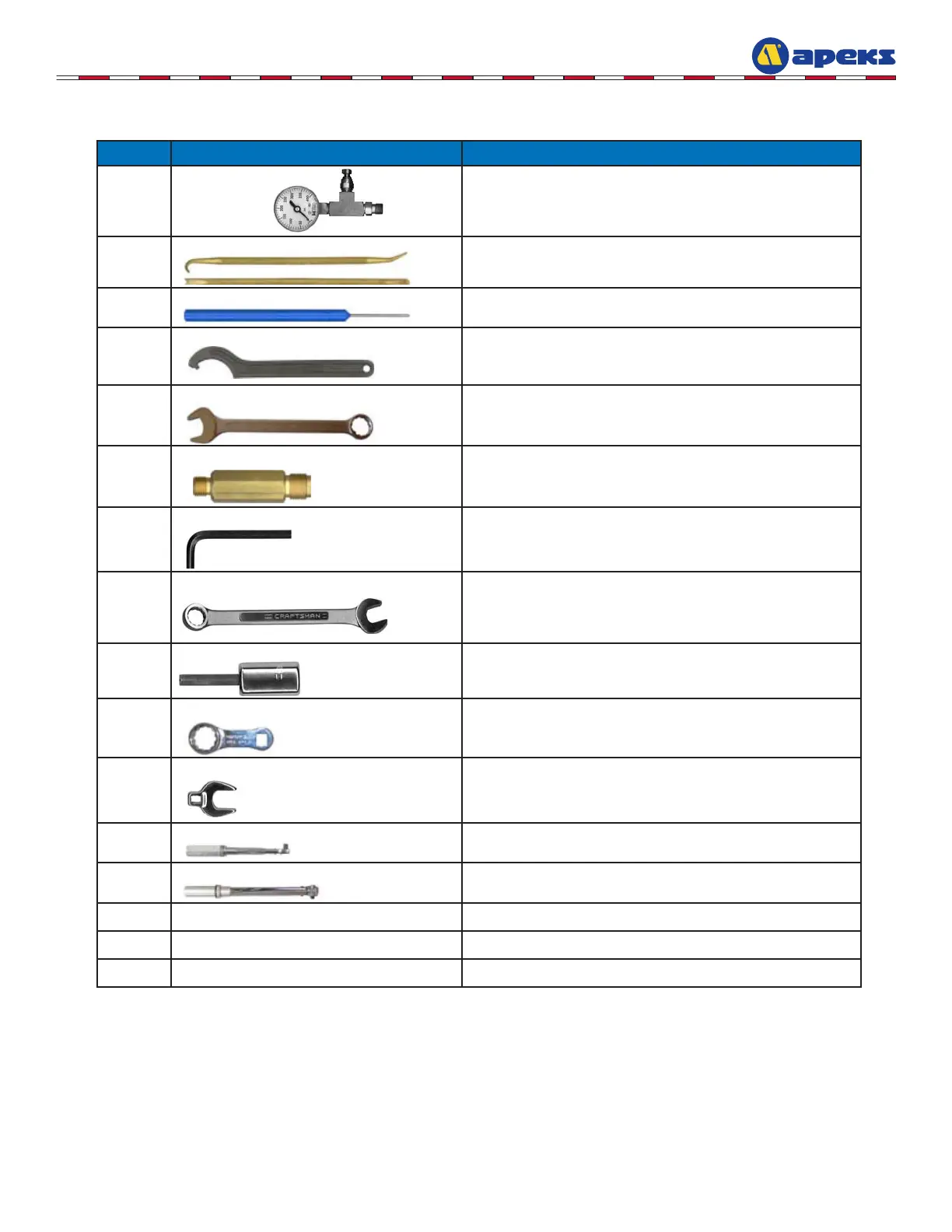

Table 2: List of Tools and Service Kits
Vise Mounting Tool
Pin Spanner
MP Test Gauge
9/16, 5/8, 11/16, 3/4 Open End Wrench
Hex Key (5mm, 6mm)
3/4” Box Wrench
O-ring Tool Set
Seat Extraction/Installation Tool
9/16, 5/8, 11/16 Crowfoot
34mm Thin Wrench
5mm, 6mm Hex Key Adapter
Torque Wrench (30 - 120 in/lbs)
Torque Wrench (10 - 150 ft/lbs)
