Apeks FSR Series User Manual

16
.......AP5720PVDS Body, FSR, Tungsten, ATX
13 .......AP1409 O-ring
14 .......AP1419 HP Valve
15 .......AP1415 Spring
16 .......AP1299 O-ring
17 .......AP1300 O-ring
18 .......AP5309 HP Balance Plug, ATX
.......AP5309B HP Balance Plug, XTX, Tungsten
19 .......AP1403/S Yoke Clamp, Satin, ATX
.......AP1403 Yoke Clamp, XTX
.......AP1403PVDS Yoke Clamp, PVD, Tungsten
20 .......AP1407/S Yoke Clamp Connector, Satin, ATX
.......AP1407 Yoke Clamp Connector, XTX, Tungsten
21 .......AP1406/1 Filter Guard
22 .......AP1404 Protective Cap
23 .......AP1166 O-ring
24 .......AP1402 Yoke Clamp Screw
25 .......AP5723 Decal, Body, XTX 200, ATX 200
.......AP5739 Decal, Body, ATX, Tungsten
.......AP6239 Decal, Body, XTX, Tungsten
26 .......AP1413 7/16” Blanking Plug
27 .......AP1445 O-ring
28 .......AP1410 O-ring, ATX
29 .......AP1487 1/2" Blanking Plug, ATX
30 .......AP1408 3/8" Blanking Plug
31a .......AP1470/S Handwheel, 300 Bar, Satin, ATX
31b .......AP6201 Handwheel, 300 Bar, XTX, Tungsten
32 .......AP1471/S Handwheel Connector, Satin, ATX
.......AP1471 Handwheel Connector, XTX, Tungsten
33 .......AP6202 Protective Cap, DIN
34 .......AP1472 Conical Filter
35 .......AP5721 Removeable HP Valve Seat (Crown)

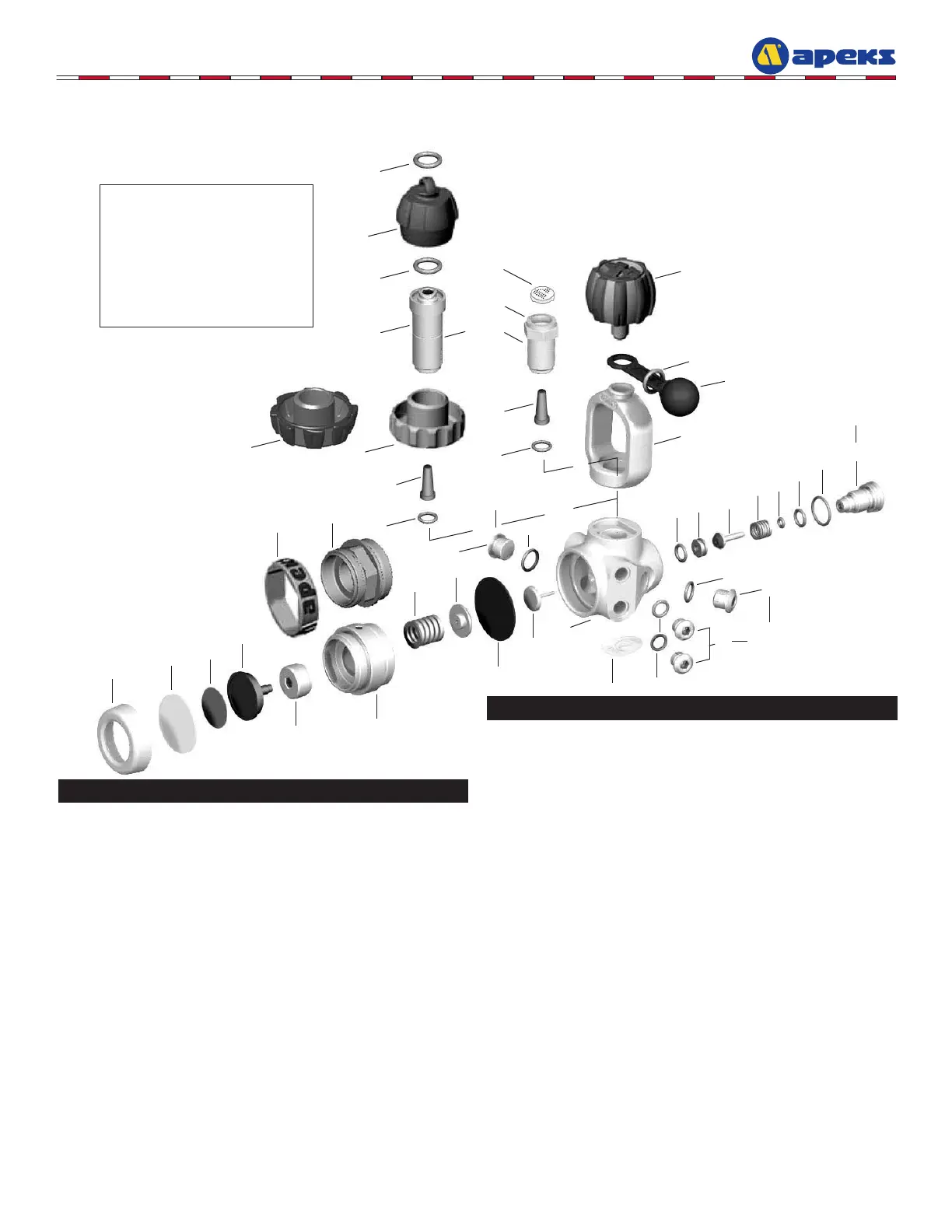

Key # .Part # Description
Part numbers in BOLD ITALICS indicate standard overhaul replacement part.
XTX 200 Tungsten • XTX 200 • ATX 200 Tungsten • ATX 200
(FSR Style)
.......AP0363 XTX200, First Stage only, w/Yoke
.......AP03631 XTX200, First Stage only, w/DIN
.......AA0210 ATX200, First Stage only, w/Yoke
.......AA0210-1 ATX200, First Stage only, w/DIN
.......AP0241/AA Service Kit, Diaphragm First Stage
.......AP0211/S DIN Connector, Satin, ATX
.......AP0620 DIN Connector, Comolded, XTX
.......AP0620PVDS DIN Connector, Tungsten
1 .......AP1484/S Environmental End Cap, Satin, ATX
.......AP1484 Environmental End Cap, XTX
.......AP1484PVDS Environmental End Cap, PVD, Tungsten
2 .......AP1482 Hydrostatic Diaphram, ATX
.......AP14821 Hydrostatic Diaphram, XTX, ATX Tungsten
.......AP1482T Hydrostatic Diaphragm, XTX, Tungsten
3 .......AP5724 Decal, ATX
4 .......AP1483 Hydrostatic Transmitter
5 .......AP1474 Spring Adjuster
6 .......AP5725 Molded Logo Ring, XTX
7a .......AP1473 Diaphragm Clamp, Satin, ATX
7b .......AP14731 Diaphragm Clamp, XTX
8 .......AP1475 Spring
9 .......AP1476 Spring Carrier
10 .......AP1478 Diaphragm
11 .......AP5722 Valve Lifter
12 .......AP5101 Body, FSR, 3/8" MP Port, XTX
.......AP5101PVDS Body, FSR, Tungsten, XTX
Key # .Part # Description
27
11
18
17
13
16
15
14
35
13
26
30
12
1
29
34
13
34
13
28
19
22
23
21
20
23
23
32
31a
33
13
25
24
2
3
5
6
8
9
10
31b
4
7a
NOTE: In September 2002, the ATX
200 rst stage transitioned from a
hi-gloss black chrome nish to a
satin chrome nish. Specically,
the parts affected are key item #1,
12, 20 and 21. These parts will no
longer be available in black chrome.
Should you need to replace one of
these, you will need to order the
part in satin.
7b
14.7 ft/lbs
20 Nm
70 in/lbs
8 Nm
40 in/lbs
4.5 Nm
40 in/lbs
4.5 Nm
