Apeks TX50 - Exploded Parts Diagrams; TX100 Exploded Parts Diagram

18
TX Second Stage Regulator Maintenance Manual
19
TX Second Stage Regulator Maintenance Manual
1 AP5015 Decal 16 AP2040 Exhaust Tee
2 AP2053 Purge Button 17 AP2033 Seat
3 AP2020 Spring 18* AP1154 ‘O’ Ring
4 AP5326 Case Cover 19 AP2035 Lever
5 AP2025 Diaphragm Cover 20 AP2028/S Valve Spindle
6 AP5013/S Heat Exchanger 21 AP1151 Spring Pin
7 AP2023 Diaphragm 22* AP2034 Rubber Seating
8* AP1267 ‘O’ Ring 23 AP2036 Shuttle Valve
9 AP5100 Case 24* AP2041 ‘O’ Ring
10 AP2037 Deector 25 AP2021 Spring
11* AP1677 Mouthpiece Clip 26 AP2038 Counter Balance Cylinder (Long)
12 AP5324 Comfobite Mouthpiece ** AP2038/SQ Counter Balance Cylinder (Short)
13* AP1438 ‘O’ Ring 27* AP1409 ‘O’ Ring
14 AP5339 Venturi Lever 28 AP2029-2/S Adjusting Screw
15 AP1429 Exhaust Valve 29 AP2030 Plug

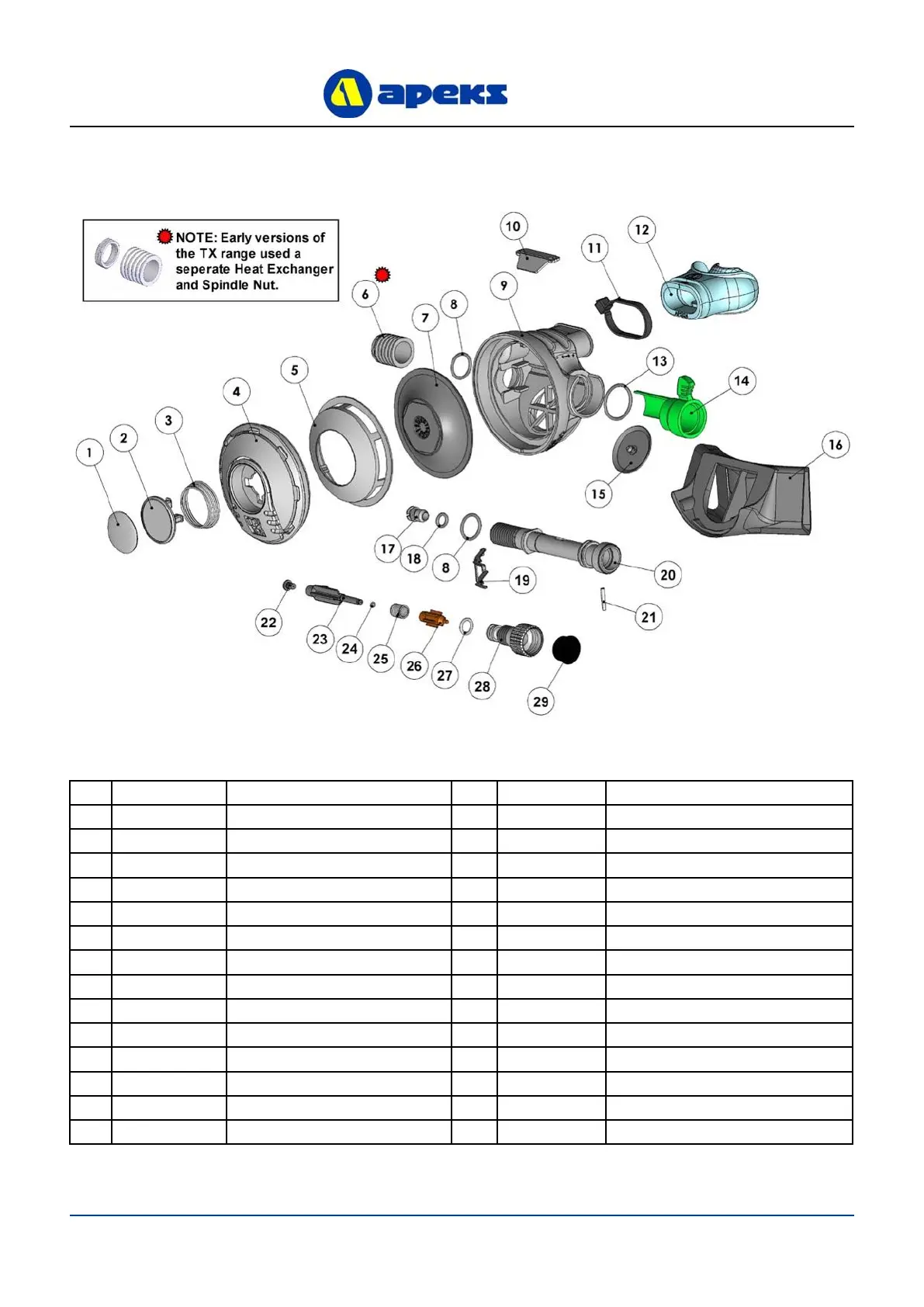

TX100 Exploded Parts Diagram
* All marked items must be replaced when serviced.
** AP2038/SQ Canada, USA & South America Only
