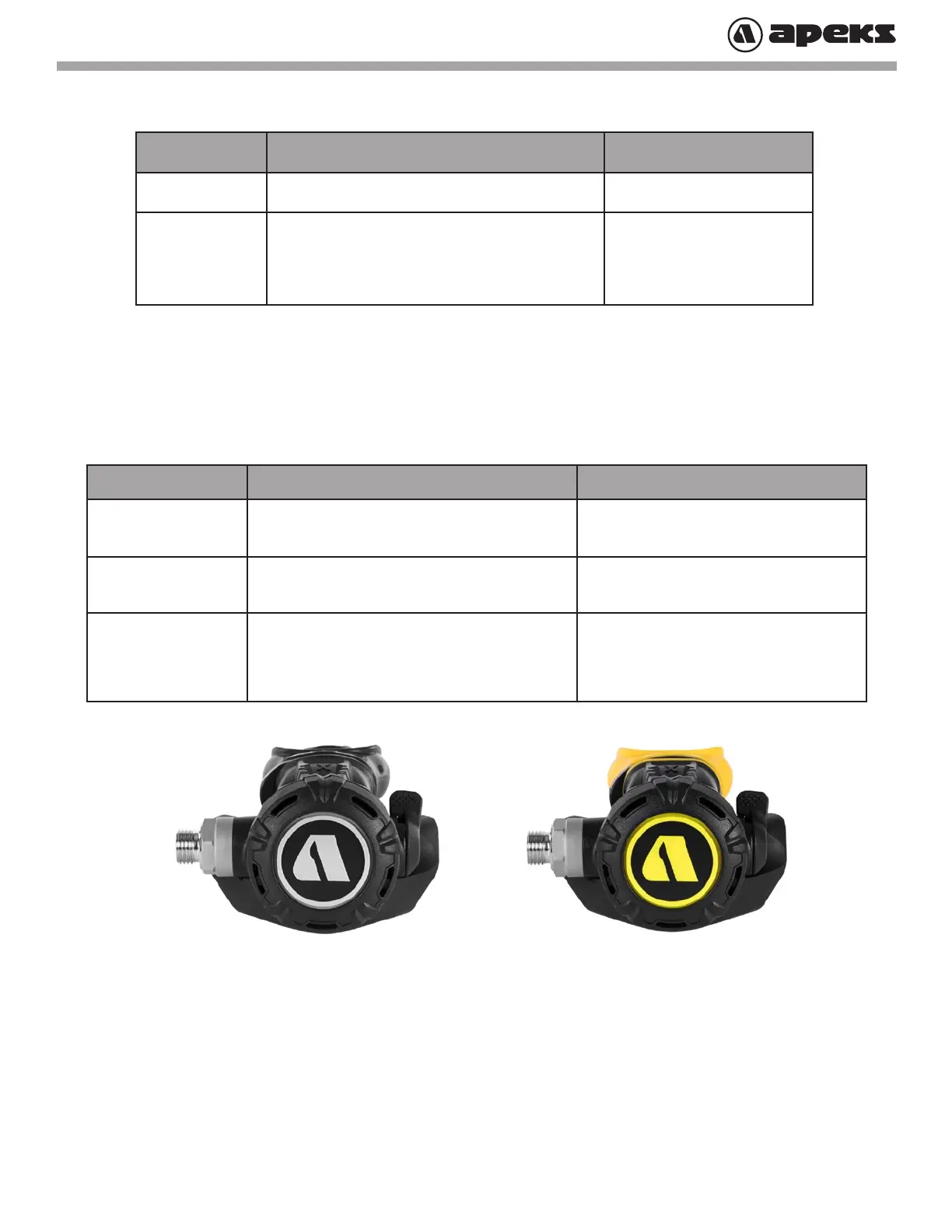

Apeks XL4+ - Table 3: Torque Specifications; Table 4: Test Bench Specifications

TABLE 4: TEST BENCH SPECIFICATIONS
TABLE 3: TORQUE SPECIFICATIONS
PART # DESCRIPTION / KEY ITEM # TORQUE
RG912344
Inlet Shroud (12) 27 in-lbs (3 Nm)
RH114257
RH114119
RH113115
MP Flex Hose (28) 45 in-lbs (5 Nm)
TEST CONDITION SPECIFICATION
Leak Test
Inlet 2500-3000 psi (172-207 bar)
No leaks allowed
MP
Inlet 3000 psi (207 bar)
130-145 psi (9 - 10 bar)
Opening Effort
Std & Octo
Inlet 2500-3000 psi (172-207 bar)
MP 130-145 psi (9-10 bar)
+ 1.4 - 1.6 H
2
0 (3.5 - 4.0 mbar)
16
