Windows Conguration & Control Utility
When the PDU is located, the status line will indicate “PDU FOUND”. The PDU
monitoring variables will be transferred to the PC for display purposes. The sub-windows
(process windows) of Control and Settings, Power Monitor, and PDU Visual will be
displayed. The sub-windows can be moved and oriented to suit the user’s needs.
If the software connection is not made, verify the correct cables are being used and the
correct baud rates have been selected. The user may also contact the factory for
telephone support.(814 272-SPMS)

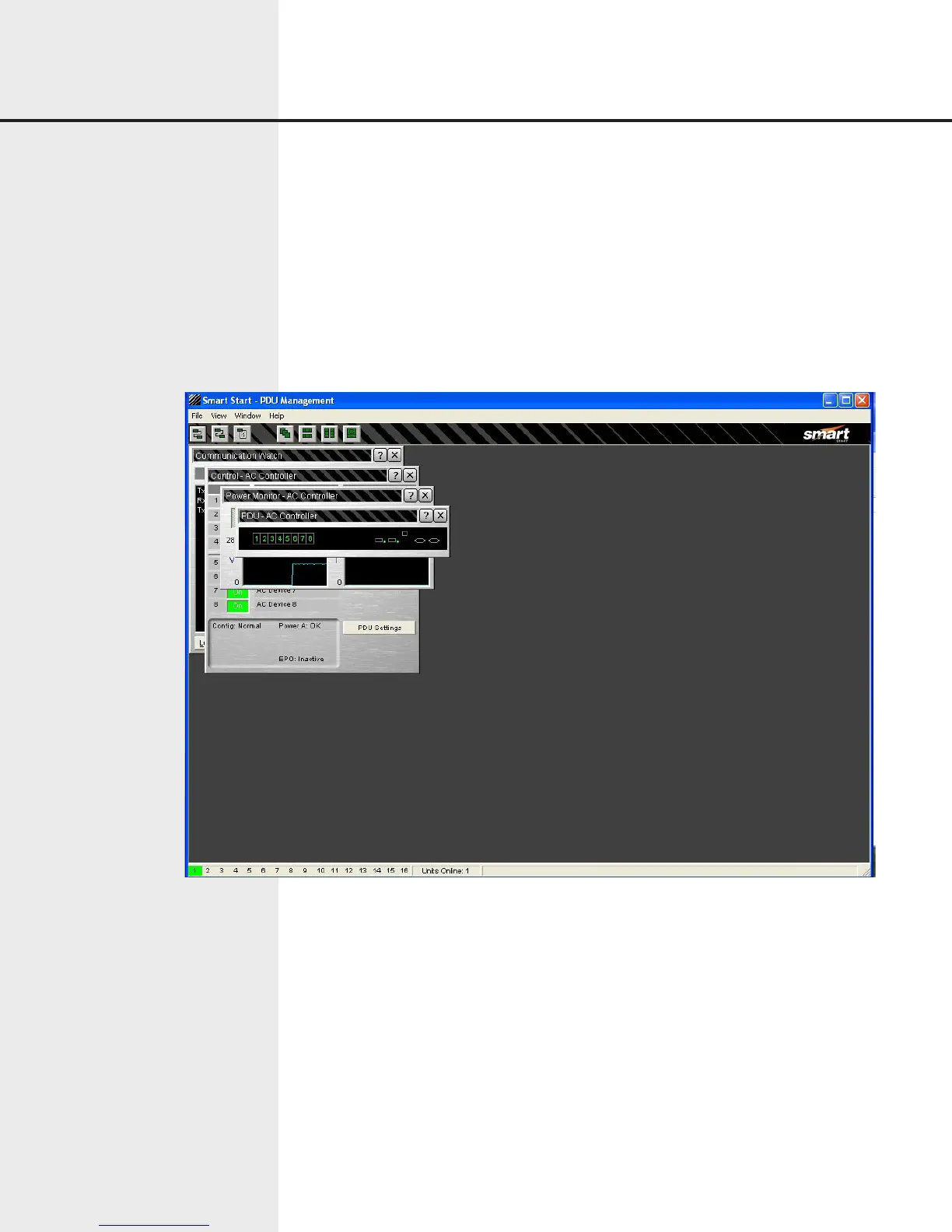

Figure 6.7 PROCESS WINDOWS
