Windows Conguration & Control Utility

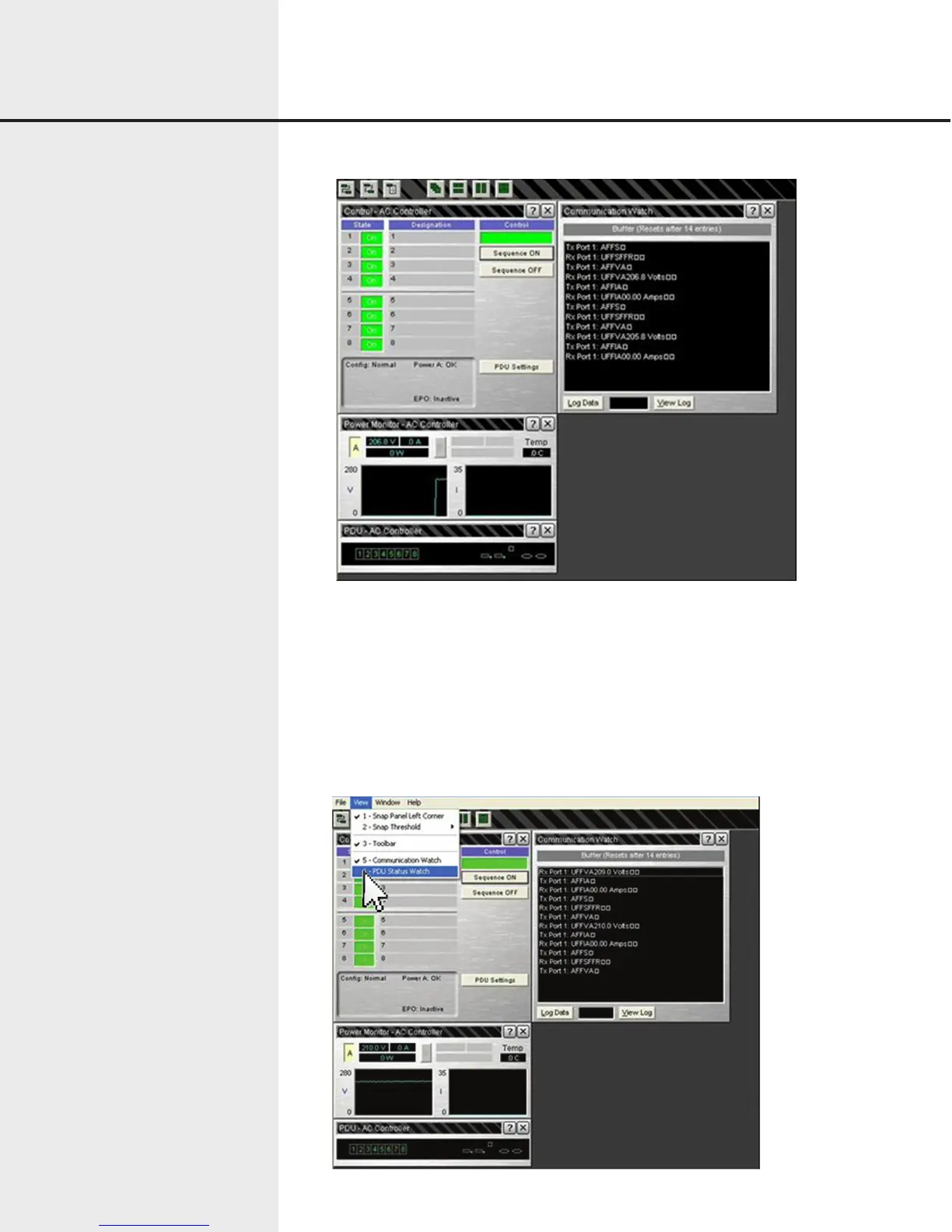

Figure 6.8 Example of All Windows
Power monitor and PDU windows are used for remote monitoring of the PDU.
They display a graphical representation of the PDU and parameters that are being
measured.
A Global PDU Status window can be used to view the status of Multiple PDUs at
a glance. To view the Global PDU Status window, go to the View drop-down menu
and select “PDU Status Watch.”
Figure 6.9 Selecting PDU Status
