ROSETTA 800 – User’s Guide
Introduction
Apogee Electronics’ Rosetta 800 is a multi-channel Analog and Digital converter designed to provide the highest
quality signal path for all modern digital systems, while setting a new standard of performance at an accessible
price. The following features are included:
• Sample rates up to 96kHz, upgradeable to 192kHz.
• A wide range of digital interfaces options, including AES, ADAT – S/MUX, plus an Option card providing
future expandability.
• Dual stage clock circuitry ensuring stable operation regardless of clock source.
• Soft Limit transient limiting circuitry available on all 8 Analog inputs.
• UV22HR bit resolution reduction algorithym.
• Advanced digital routing.
Signal Flow Diagram
To ADAT Out
To OPTION Out
To AES Out
To Analog OutputsSource to Analog Outs button
Source to Digital Outs button
ADAT In
OPTION In
AES In
ANALOG In
SOFT LIMIT
UV22HR
A/D

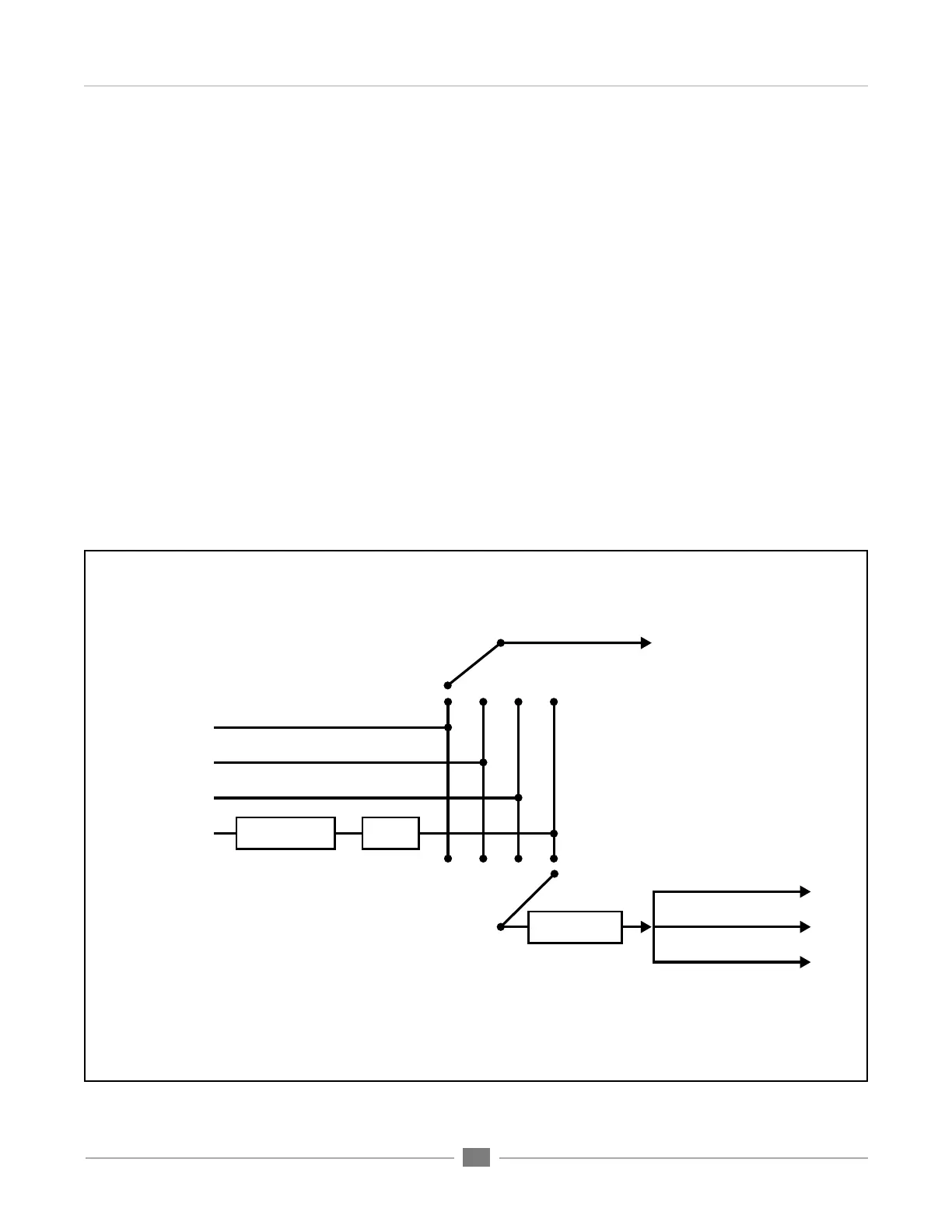

Basic Signal Flow Diagram (without signal) shows Rosetta 800’s
ability to configure two independent signal paths.
