CHAIN MAGNETS INSTALLATION
1. Align each magnet with the corresponding switch on the operator.
2. Connect the battery and adjust the magnets for proper open & close limits.
WARNING : Always disconnect battery prior to relocating the magnet.
TIP: If the gate automatically
opens after the close timer
expires, reverse the red &
black motor wires and reverse
the orange & white limit wires.

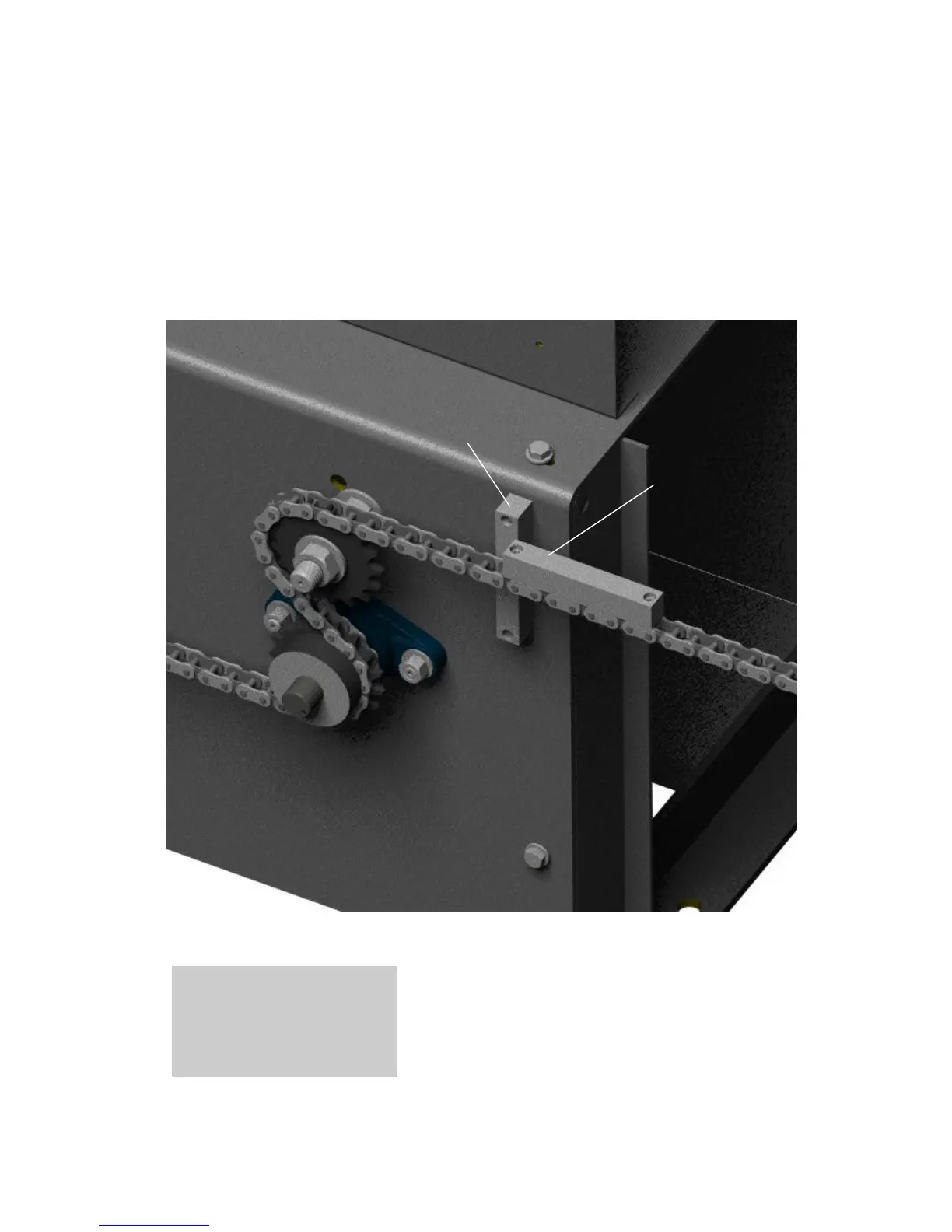

Limit Switch
Magnet
