8
OPERATOR INSTALLATION

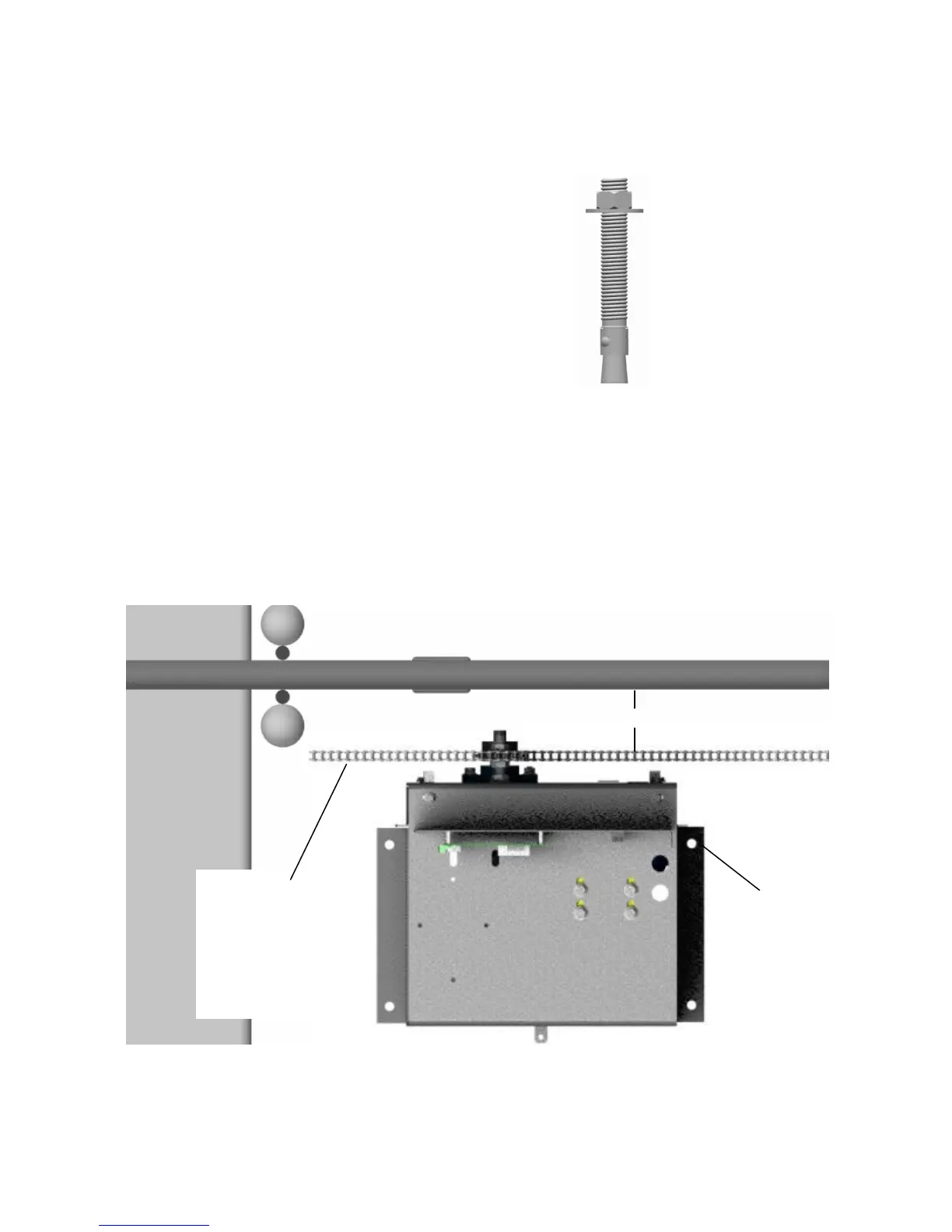

Chain path
(Make sure
the chain
path clears
all posts and
obstacles).
TOP VIEW
Four 1/2” anchor bolts (not supplied) are
recommended to mount the chassis. The
holes should be drilled with a 1/2”
concrete drill bit.
STEP 1. Set the operator on the pad as shown. Align the sprockets 3 to 5 inches from the inside
surface of the gate.
STEP 2. Mark the four mounting holes on the pad.
STEP 3. Remove the operator and drill the holes according to the anchor bolt manufacturers in-
structions.
STEP 4. Replace the operator and fasten to the pad.
Mounting Holes
(4)
3”-5”
To Next Page
