CHAIN BRACKET INSTALLATION

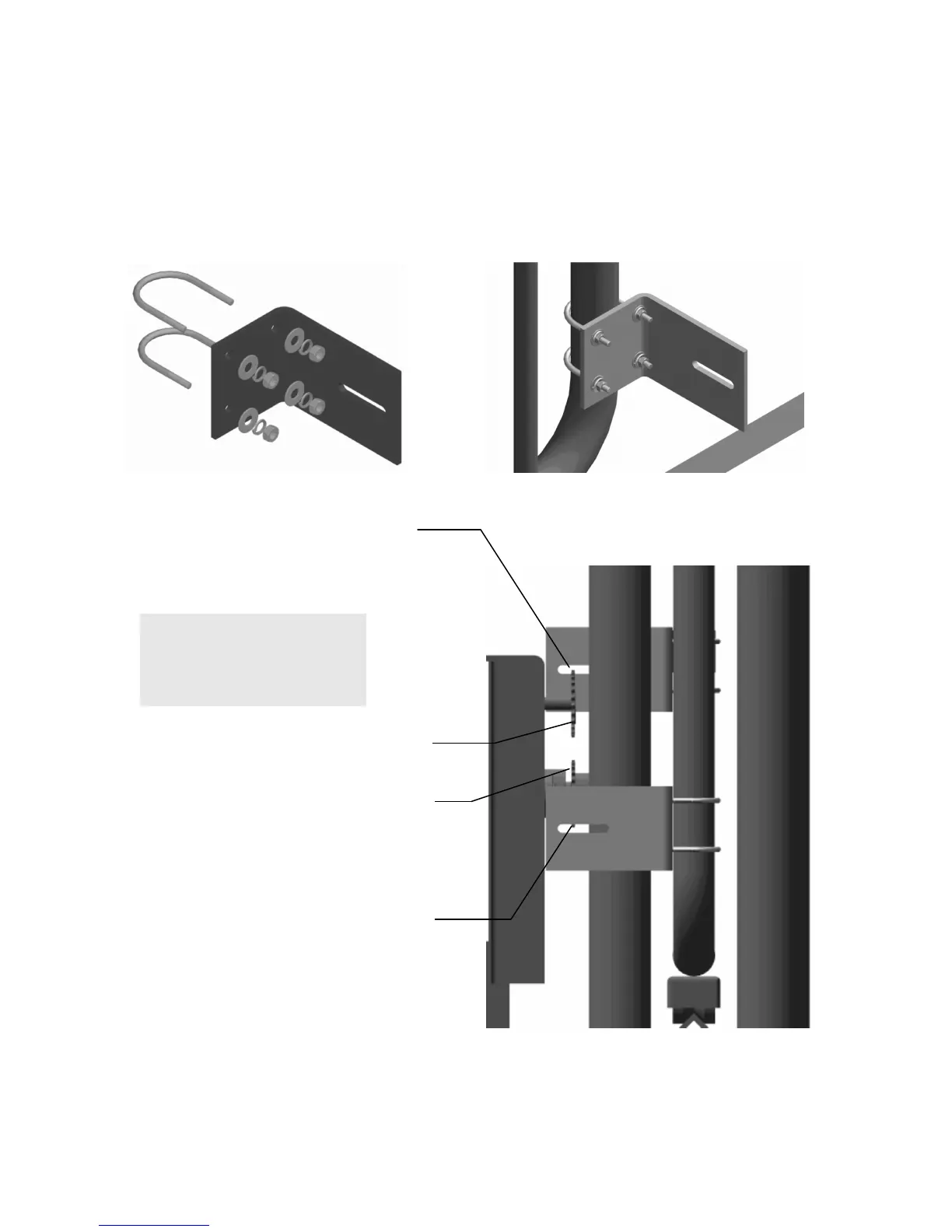

STEP 1. Assemble chain bracket with 5/16” U-bolt & hardware to each end of the gate as shown.
Do not tighten at this time.
STEP 2. Align the left chain
bracket slot with the top teeth
of the idler sprocket.
Idler Sprocket
Main Sprocket
STEP 3. Align the right
chain bracket slot with the
bottom teeth of the main
sprocket.
STEP 4. Tighten all hardware.
TIP: If welding equipment is
available, tack weld the chain
bracket to the gate on each
end to prevent slippage.
