OFF ON
1 TIMER TO CLOSE Gate does not automatically close. Gate automatically closes.
2 TIMER TO CLOSE OPT. Gate automatically closes from Gate automatically closes only when completely
any position after opening. open (open limit engaged).
3 SLAVE DISABLE Enables slave side (dual gate use). Disables slave side. (single gate use)
4 SIREN DELAY Siren (optional) active when gate is Siren (optional) starts 5 seconds before gate moves.
moving.
5 ‘STOP’ CIRCUIT ENABLE Must hold down open or close Normal operation
buttons to move gate. Gate stops Momentary open or close input runs gate to limit.
when button released.
6 LOCK TYPE For 12V mechanical (solenoid) locks. For 12V magnetic locks.
(+12V for 4 seconds on open cycle) (+12V when on close limit)
7 COAST ENABLE Gate will brake when at Open or Gate will coast (minimally) when it reaches limits.
Close limit
8 FREE EXIT OPT. A free exit input will open gate from A free exit input will open gate from any
closed position or after a close cycle position after an open or close cycle.
only.
9 NOT USED
10 SMART ACT. Off for 416E & 416EX actuators, Used for 816E & 816EX actuators only
slide gates, 3500 or when slow down (soft start & stop).
feature is not desired.

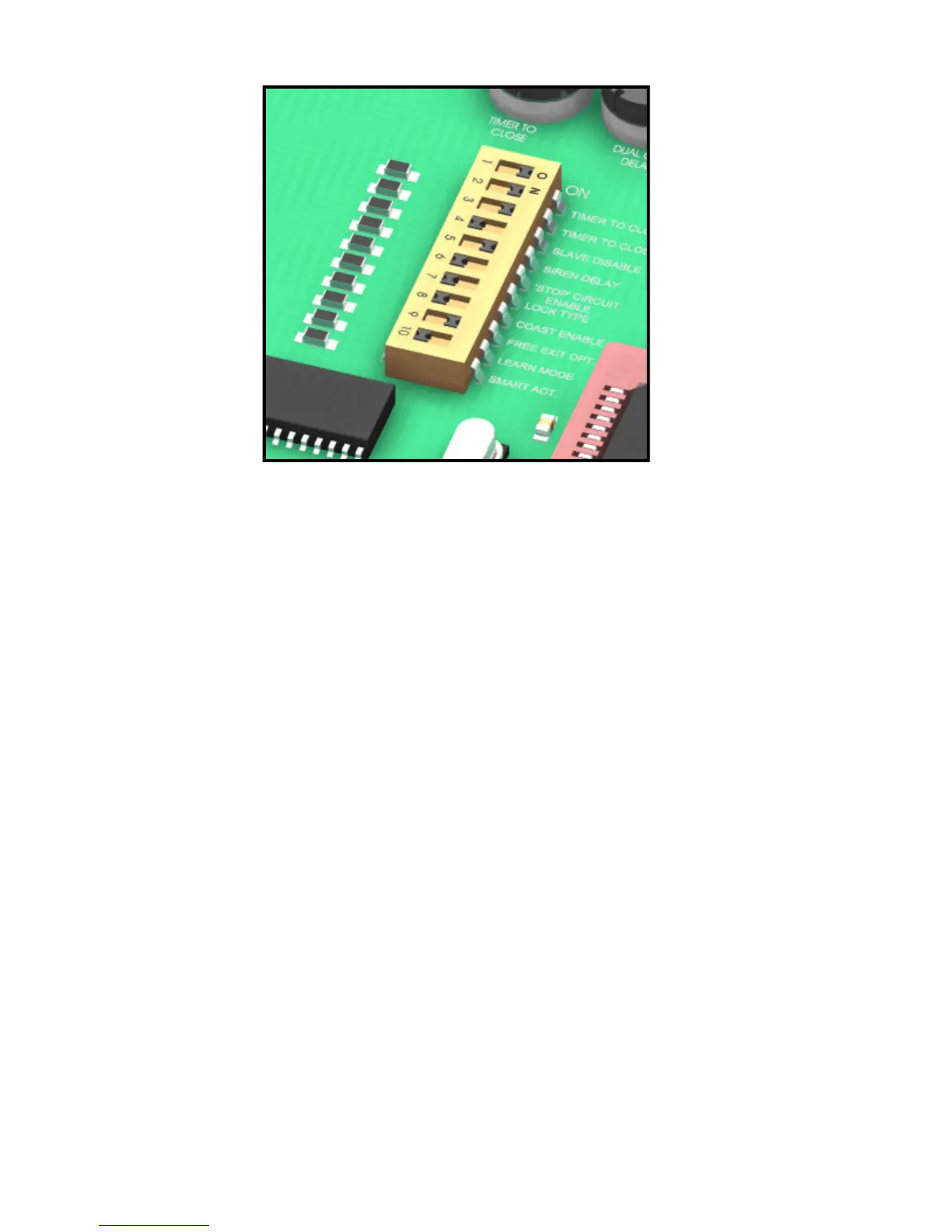

Program Switches
Setting shown are for
416E, 416EX, 7XXX
operators and 3500
operators.
To Next Page
