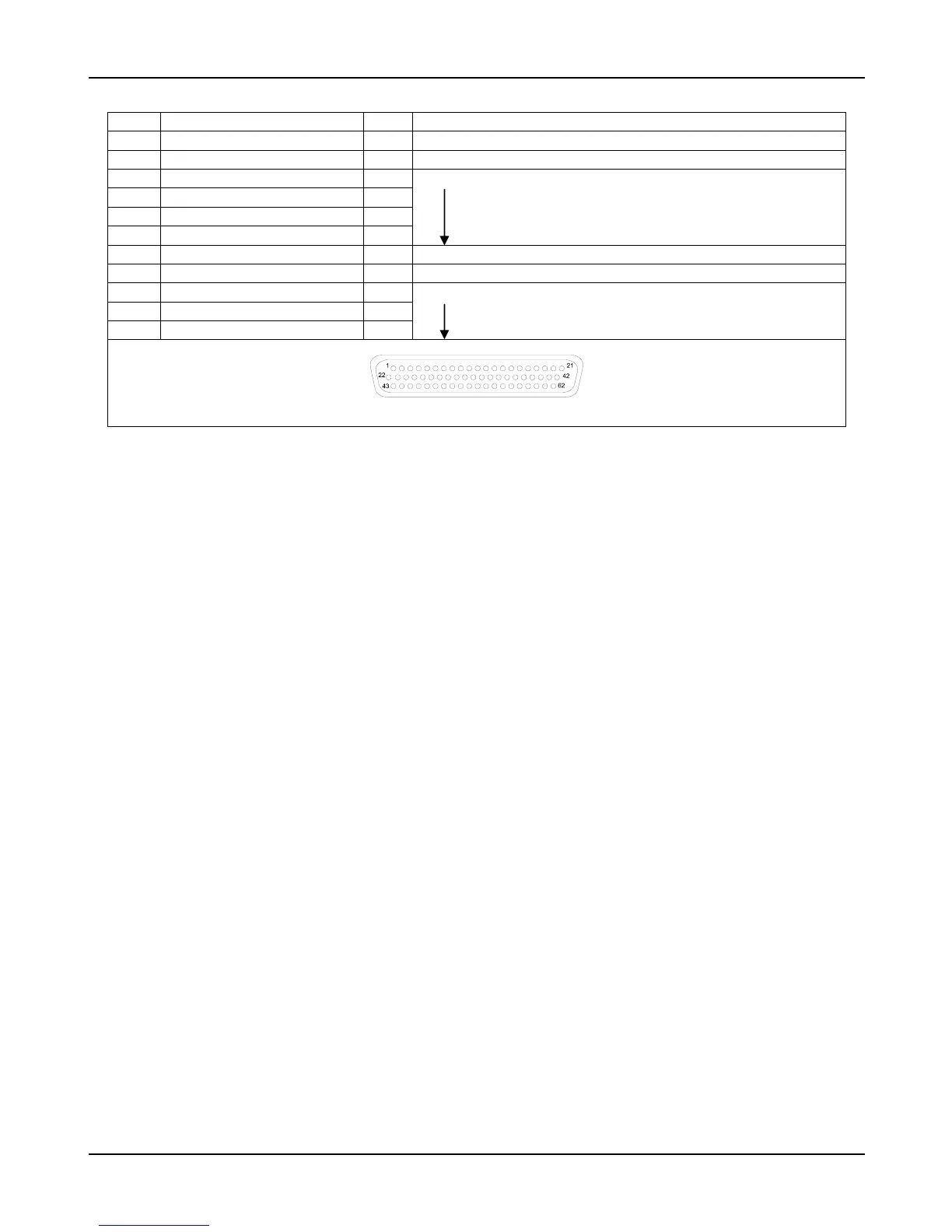

Apollo MX20 - Page 57

Specifications
Apollo MX20 Installation Manual
49
51 +28V I
52 429_OUT_1A O ARINC 429 Output port 1A
53 429_OUT_1B O ARINC 429 Output port 1B
54 561_CLK_IN_B I
55 561_CLK_IN_A I
56 561_SYNC_IN_B I
57 561_SYNC_IN_A I
Reserved
58 429_IN_0B I ARINC 429 Input port 0B
59 429_IN_0A I ARINC 429 Input port 0A
60 429_IN_3B I
61 429_IN_1A I
62 429_IN_1B I
Reserved
View from rear of unit
