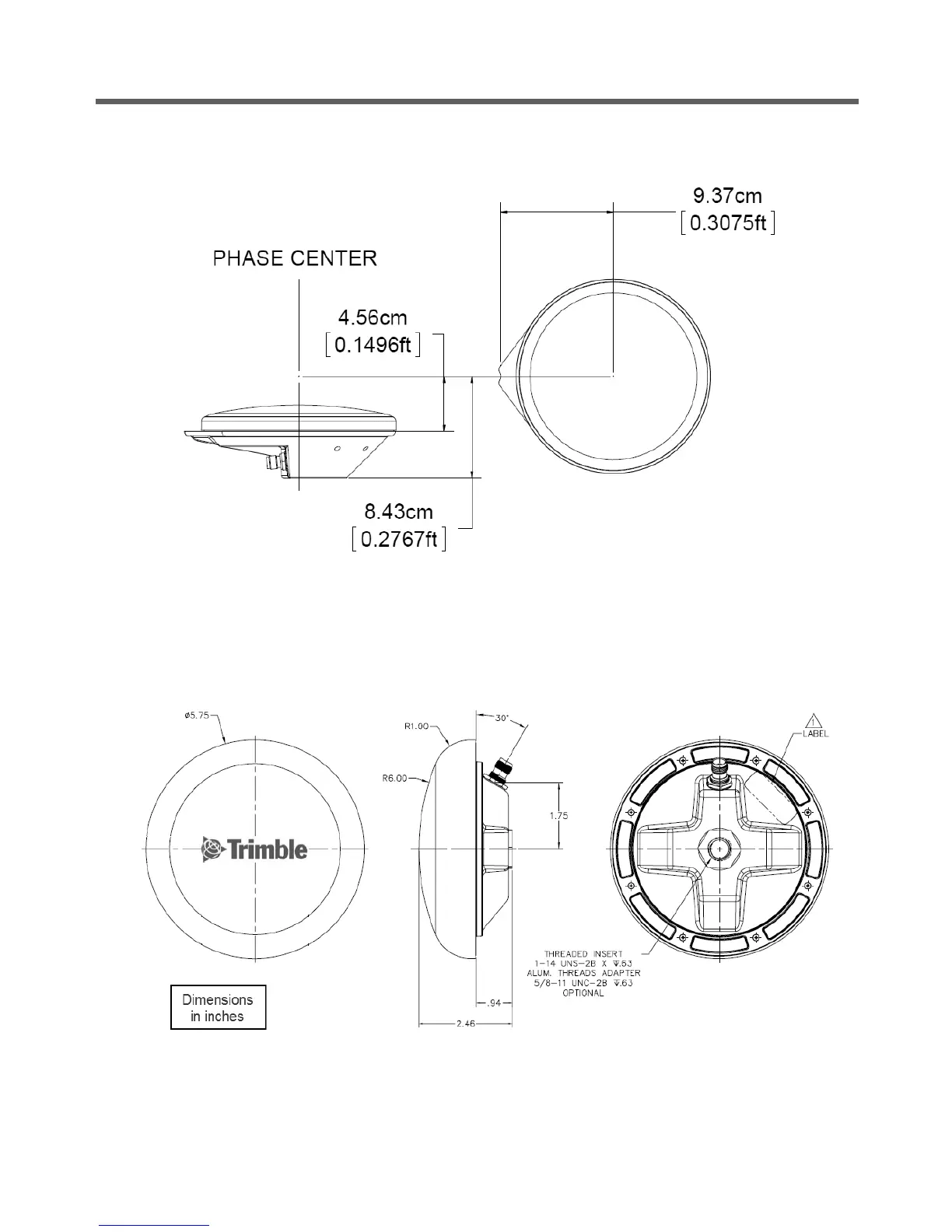

Figure 110: Trimble Zephyr II GNSS Antenna Footprint
Phase centre is 66 mm above bottom of mounting thread.
Figure 111: Trimble 382AP GNSS Antenna Footprint
