97
6、 Filter
●Tighten the bolt 4,Put on the cover
2, tighten the clamp 3.
Warning!
Never use with gasoline or low
flash point solvents to clean the
filter element.
(3) Specified spark plug:：DPR7EA-9
（NGK）
●Clean the surface of the spark plug
gas ket and its mating surface,
and then wipe off any grime from
the spark plug threads.

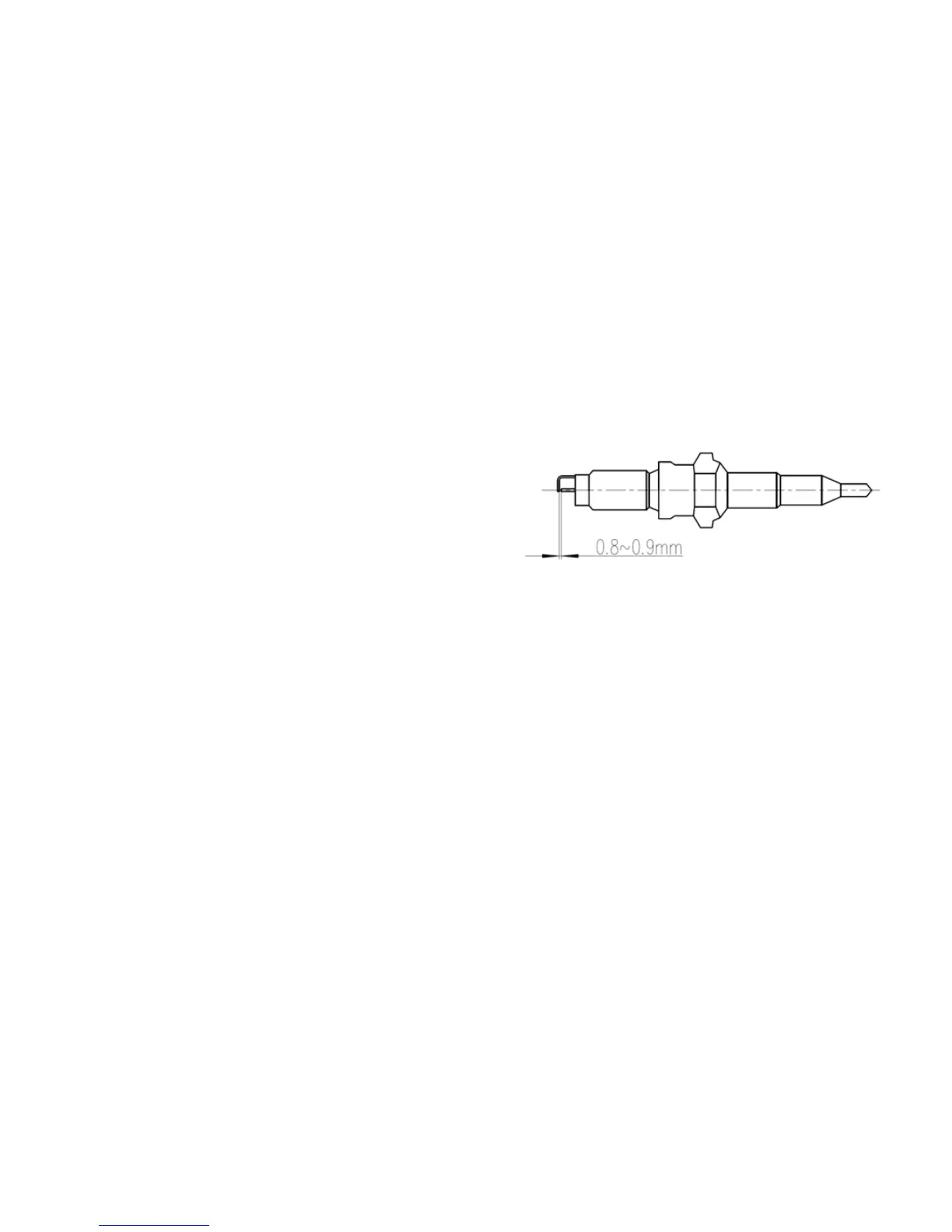

●Measure the electrode gap with a
wire thickness gauge and, if
necessary, adjust the gap to
specification.
Spark plug gap:
0.8-0.9 mm (0.031-0.035 in)
● Install the spark plug and tighten it
to the specified torque.
Tightening torque:
Spark plug:
17.5 Nm (1.75m.kgf, 12.7ft.lbf)
