HARDWARE INSTALLATION
10 NP-3262 POS Terminal

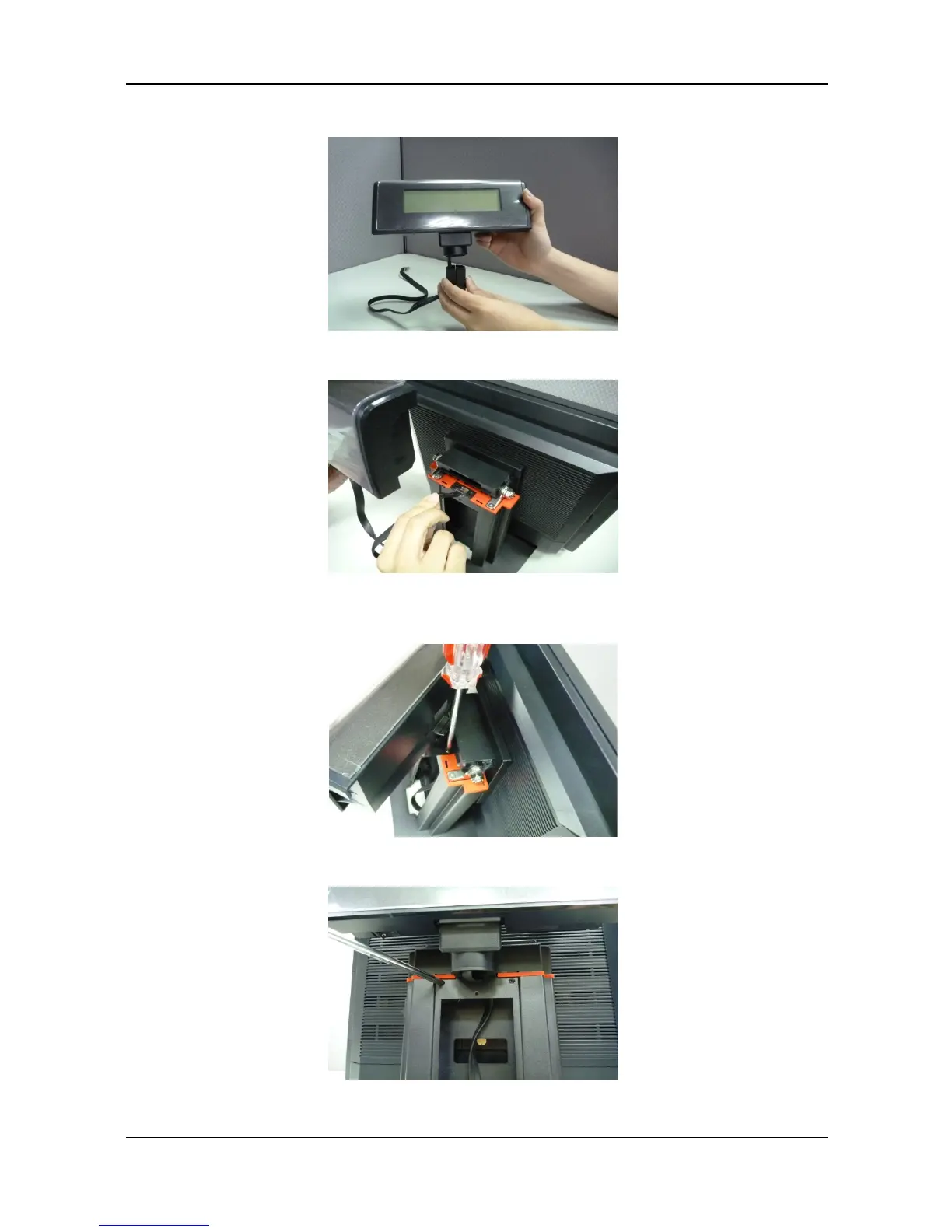

Step 4
Install the VFD/LCD customer display into the bracket.
Step 5
Route the RJ45 signal cable through an opening on the hinge.
Step 6
Fit the VFD/LCD display panel with bracket in position and refasten them
with 2 screws.
Step 7
Reinstall the hinge cover with 2 screws.

